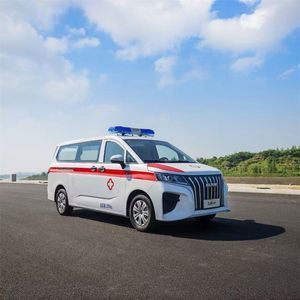

Medical Ambulance Transport Emergency Car Transport Rescue Ambulance
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $11,000-39,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW | Type | Ambulance |
|---|---|---|---|
| Transmission Type | Manual | Fuel | Diesel |
| Emission Standard | Euro 3 | Length | 3-8m |
| Medical Equipment | With Medical Equipment | Horsepower | 160-210hp |
| Axle | Single | Condition | New |
| Transport Package | Bulk Ship, RO-RO, Container | Specification | 5240X1870X2110 |
| Trademark | CLW | Origin | Suizhou China |
| Production Capacity | 500 Unit/Month |
Product Description
Medical Ambulance Transport Emergency Car Transport Rescue Ambulance
Hospital Emergency Ambulance CarAmbulance always has two optionals , one is transport type ambulance another one is rescue type Ambulance ambulance system: Automatic loading stretcher: The main body is made of high-quality aluminum alloy material, which is light and solid and easy to operate. Through operation, it can be quickly and smoothly. Push the stretcher carrying the patient into or out of the ambulance, the backrest is supported by the adjustment structure, which can be adjusted within 60 degrees, and it is equipped with a patient's strap for safety. Do not fix between stretchers. Infusion stand: Install 2 foldable infusion stands on the top of the medical cabin, bearing 2.5kg. Ambulance oxygen supply system: 2 10L oxygen cylinders with a nominal pressure of 15MPA; 2 national standard oxygen terminals; 1 medical oxygen inhaler; 2 dual-meter pressure regulators
Hospital Emergency Ambulance CarAmbulance always has two optionals , one is transport type ambulance another one is rescue type Ambulance ambulance system: Automatic loading stretcher: The main body is made of high-quality aluminum alloy material, which is light and solid and easy to operate. Through operation, it can be quickly and smoothly. Push the stretcher carrying the patient into or out of the ambulance, the backrest is supported by the adjustment structure, which can be adjusted within 60 degrees, and it is equipped with a patient's strap for safety. Do not fix between stretchers. Infusion stand: Install 2 foldable infusion stands on the top of the medical cabin, bearing 2.5kg. Ambulance oxygen supply system: 2 10L oxygen cylinders with a nominal pressure of 15MPA; 2 national standard oxygen terminals; 1 medical oxygen inhaler; 2 dual-meter pressure regulators
| [Vehicle technical parameters] | |||||
| product name | Type AAK5038XJHM6 ambulance | ||||
| gross mass (kg) | 2390 | Tank volume (m3) | |||
| Rated mass (kg) | outline dimension (mm) | 5240X1870X2110 | |||
| curb weight (kg) | 1700 | Goods Chamber Size (mm) | XX | ||
| Rated passenger capacity (person) | 7,9 | Total mass of quasi-trailer (kg) | |||
| Number of passengers (person) | Maximum load mass of the saddle (kg) | ||||
| Approach angle / departure angle of (°) | 22/19 | Front suspension / rear suspension (mm) | 910/1130 | ||
| axle weight (kg) | 980/1410 | Top vehicle speed (km/h) | 140 | ||
| [Chassis technical parameters] | |||||
| Chassis model | BAW6521MAB | Chassis name | |||
| number of axles | 2 | Number of tires | 4 | ||
| wheel base (mm) | 3200 | ||||
| tyre size | 215/65R16,205/65R16LT 8PR | ||||
| Number of steel plate spring sheets | -/6,-/3,-/4,-/5 | front gauge (mm) | 1610 | ||
| Fuel types | gasoline | rear track (mm) | 1610 | ||
| Emission basis standard | GB18352.6-2016 Country | ||||
| engine type | Engine production enterprise | engine displacement | engine power | ||
| LQ481QFB | Qingdao Lanqiiliu Machine Power Technology Co., LTD | 1962 | 106 | ||
| component | order number | project | quantity | explain |
| Exquisite appearance | 1 | Long blue warning lights on the front of the roof | 1 | |
| 3 | 100W alarm and handle control | 1 | ||
| 4 | Left black privacy membrane | 1 | ||
| 5 | White frosted film on the right side and the rear side | 1 | ||
| 6 | Body appearance | 1 | ||
circuitry |
7 | The 500W pure-wave inverter system | 1 | |
| 8 | Keytype switch | 1 | Million-level safety test, reliable safety | |
| 9 | Top LED long term lighting | 4 | ||
| 10 | Round disinfection lamp | 1 | ||
| 11 | The 220V power supply port | 2 | Automotive special application for European standard, national standard equipment power supply | |
| 12 | The 12V power supply port | 1 | ||
| Comfortable configuration | 13 | High-power direct-discharge air conditioning | 1 | |
| 14 | High power warm wind | 1 | ||
| 15 | Top bidirectional ventilation fan | 1 | Small noise, water leakage, streamline design low wind resistance | |
| Medical class layout | 16 | The medical compartment is sealed off from the cockpit | 1 | |
| 17 | European style long strip type sliding window | 1 | Broadider view, before and after convenient observation | |
| 18 | Interphone system | 1 | ||
| 19 | Interior on top of original car | 1 | ||
| 20 | Left-side medical equipment cabinet | 1 | Walker board, flame retardant, waterproof, easy to clean up | |
| 21 | Left anterior medical oxygen tank | 1 | Walker board, flame retardant, waterproof, easy to clean up | |
| 22 | Partipartition reverse with storage soft bag seat | 1 | 2 Seat belt | |
| 23 | Forward independent independent the doctor nursing seat | 1 | 3 Seat belt | |
| 24 | Double long strip seat on the right side | 1 | 2 Seat belt | |
| 25 | Moist-proof pad and wear-resistant medical floor | 1 | ||
| oxygen breathing system | 26 | A 10L iron oxygen cylinder | 2 | |
| 27 | With decompression humidified bottle | 1 | ||
| Medical assistance | 28 | Automatically get on a stretcher | 1 | |
| 29 | Stainless steel stretcher guide rail pad plate | 1 | ||
| 30 | Stainless steel stretcher guide plate | 1 | Air spring, ten thousand times of support, no shaking and abnormal sound | |
| 32 | Infusion rack | 1 | ||
| 33 | fire extinguisher | 1 | ||
| 34 | trash can | 1 | ||
