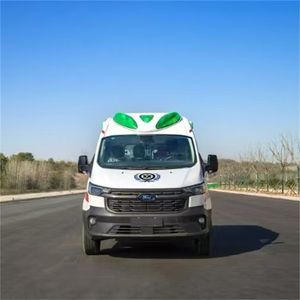

Big Emergency Rescue Car Negative Pressure Ambulance Vehicle with Stretcher and Chair
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $10,000-30,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW5043XJHCDP | Type | Ambulance |
|---|---|---|---|
| Transmission Type | Manual | Fuel | Diesel |
| Emission Standard | Euro 4 | Length | 3-8m |
| Medical Equipment | With Medical Equipment | Horsepower | 160-210hp |
| Axle | Single | Condition | New |
| Transport Package | Bulk Ship, RO-RO, Container | Specification | 5341X2032X2460 |
| Trademark | CLW | Origin | Suizhou China |
| Production Capacity | 500 Unit/Month |
Product Description
Big Emergency Rescue Car Negative Pressure Ambulance Vehicle with Stretcher and Chair
1) The Rescue Ambulance is also called negative pressure isolation ambulance, icu ambulance, medical ambulance etc. It is usually consisted of truck chassis, ambulance equipment,etc.
2) Rescue Ambulance can be customized,usually it can include one portable ambulance stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.
1) The Rescue Ambulance is also called negative pressure isolation ambulance, icu ambulance, medical ambulance etc. It is usually consisted of truck chassis, ambulance equipment,etc.
2) Rescue Ambulance can be customized,usually it can include one portable ambulance stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.
| Technical Parameters | |||||
| Technical parameters of truck chassis | |||||
| A | Size and Weight | ||||
| Wheelbase(mm): | 3300 | ||||
| Dimension(mm): | 5341X2032X2460 | ||||
| Curb weight(kg): | 2540 | ||||
| Engine | |||||
| Model: | ECOBOOST4G20B6L | ||||
| Fuel type: | gasoline | ||||
| Displacement(ml) | 1991 | ||||
| Emission standard | Euro V | ||||
| Rate power kw(hp): | 150kw/204hp | ||||
| Transmission system | |||||
| Manual gear box: | 5 Forwards & 1 reverse | ||||
| Max.Speed(km/h): | ≥120 | ||||
| Standard configuration | |||||
| B | 1 | Anti collision steel beam | |||
| 2 | Center control door lock | ||||
| 3 | Leather steering wheel | ||||
| 4 | Two set in cabin | ||||
| 5 | Air bag | ||||
| 6 | Tea table box in cabin | ||||
| 7 | Stereo tape recorder+CD | ||||
| 8 | Rear mirror | ||||
| Technical parameters of super structure | |||||
| C | Air conditioner and Exhaust system | ||||
| 1 | Cabin air conditioner | ||||
| 2 | Medical warehouse air conditioner | 1 | |||
| 3 | Bidirectional exhaust fan in medical warehouse | 1 | |||
| Disinfection and Light system | |||||
| D | 1 | Medical warehouse daylight lamp(Self bright function in night) | 4 | ||
| 2 | Ultraviolet disinfection lamp in medical warehouse | 1 | |||
| E | Center power system | ||||
| 1 | 1000W power inverter system | 1 | |||
| 2 | 12V power socket | 2 | |||
| 3 | 220V power socket | 2 | |||
| 4 | Integrated control protection system | 1 | |||
| 5 | AC circuit protection system | 1 | |||
| 6 | Integrated Switch Control Panel | 1 | |||
| 7 | Intercom system | 1 | |||
| Emergency alarm system | |||||
| F | 1 | Alarm lights controller mounted on cabin | 1 | ||
| 2 | 100W car speakers built in interior of the long rows lights | 1 | |||
| 3 | Blue flashing LED lights mounted on rear of the car roof | 2 | |||
| 4 | Blue flashing LED lights mounted on right and left side of the car roof | 2 | |||
| 5 | White flashing LED lights mounted on right and left side of the car roof | 2 | |||
| 6 | Long rows lights mounted on front of the car roof | 1 | |||
| Oxygen Supply System | |||||
| G | 1 | 2 sets of 10L oxygen cylinder with fixed support | 2 | ||
| 2 | Humidifier fast conversion interface | 1 | |||
| 3 | Humidifier | 1 | |||
| 4 | Built-in type Oxygen pipeline | 1 | |||
| 5 | Oxygen terminal | 2 | |||
H |
Medical warehouse device | ||||
| 1 | Polymer Hard Top Interior | ||||
| 2 | Partition wall of polymer material | ||||
| 3 | Transparent push-pull observation window for middle partition | ||||
| 4 | Left top Walker plate long hanging cabinet | ||||
| 5 | Left middle Walker plate Medical Devices and Lockers | ||||
| 6 | Rear left Walker plate Vertical oxygen cabinet | ||||
| 7 | Installation of hidden safety embedded parts throughout vehicle | ||||
| 8 | Full blue collision walls in medical warehouse | ||||
| Seat System | |||||
| 1 | Reverse folding seat | 1 | |||
| 2 | Right side forward mounted standalone back seat | 1 | |||
| 3 | Long horizontal soft seat with seat belt | 1 | |||
| Rescue Stretcher | |||||
| 1 | Automatic loading stretcher and Stretcher guide | 1 | |||
| 2 | Stable Folding transfusion hanger | 1 | |||
| Safety System | |||||
| 1 | Fire extinguisher | 1 | |||
| 2 | Safety handrail | 1 | |||
