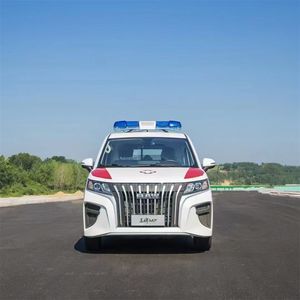

China Ambulance/Ambulance Car ICU Ambulance Truck Patient Transportation Ambulance
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $11,000-30,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | 5038XJHM6 | Type | Ambulance |
|---|---|---|---|
| Transmission Type | Manual | Fuel | Diesel |
| Emission Standard | Euro 3 | Length | 3-8m |
| Medical Equipment | With Medical Equipment | Horsepower | 160-210hp |
| Axle | Single | Condition | New |
| Transport Package | Bulk Ship, RO-RO, Container | Specification | 5240X1870X2110 |
| Trademark | CLW | Origin | Suizhou China |
| Production Capacity | 500 Unit/Month |
Product Description
China Ambulance/Ambulance Car ICU Ambulance Truck Patient Transportation Ambulance
| [Vehicle technical parameters] | |||||
| product name | Type AAK5038XJHM6 ambulance | ||||
| gross mass (kg) | 2390 | Tank volume (m3) | |||
| Rated mass (kg) | outline dimension (mm) | 5240X1870X2110 | |||
| curb weight (kg) | 1700 | Goods Chamber Size (mm) | XX | ||
| Rated passenger capacity (person) | 7,9 | Total mass of quasi-trailer (kg) | |||
| Number of passengers (person) | Maximum load mass of the saddle (kg) | ||||
| Approach angle / departure angle of (°) | 22/19 | Front suspension / rear suspension (mm) | 910/1130 | ||
| axle weight (kg) | 980/1410 | Top vehicle speed (km/h) | 140 | ||
| [Chassis technical parameters] | |||||
| Chassis model | BAW6521MAB | Chassis name | |||
| number of axles | 2 | Number of tires | 4 | ||
| wheel base (mm) | 3200 | ||||
| tyre size | 215/65R16,205/65R16LT 8PR | ||||
| Number of steel plate spring sheets | -/6,-/3,-/4,-/5 | front gauge (mm) | 1610 | ||
| Fuel types | gasoline | rear track (mm) | 1610 | ||
| Emission basis standard | GB18352.6-2016 Country | ||||
| engine type | Engine production enterprise | engine displacement | engine power | ||
| LQ481QFB | Qingdao Lanqiiliu Machine Power Technology Co., LTD | 1962 | 106 | ||
| component | order number | project | quantity | explain |
| Exquisite appearance | 1 | Long blue warning lights on the front of the roof | 1 | |
| 3 | 100W alarm and handle control | 1 | ||
| 4 | Left black privacy membrane | 1 | ||
| 5 | White frosted film on the right side and the rear side | 1 | ||
| 6 | Body appearance | 1 | ||
circuitry |
7 | The 500W pure-wave inverter system | 1 | |
| 8 | Keytype switch | 1 | Million-level safety test, reliable safety | |
| 9 | Top LED long term lighting | 4 | ||
| 10 | Round disinfection lamp | 1 | ||
| 11 | The 220V power supply port | 2 | Automotive special application for European standard, national standard equipment power supply | |
| 12 | The 12V power supply port | 1 | ||
| Comfortable configuration | 13 | High-power direct-discharge air conditioning | 1 | |
| 14 | High power warm wind | 1 | ||
| 15 | Top bidirectional ventilation fan | 1 | Small noise, water leakage, streamline design low wind resistance | |
| Medical class layout | 16 | The medical compartment is sealed off from the cockpit | 1 | |
| 17 | European style long strip type sliding window | 1 | Broadider view, before and after convenient observation | |
| 18 | Interphone system | 1 | ||
| 19 | Interior on top of original car | 1 | ||
| 20 | Left-side medical equipment cabinet | 1 | Walker board, flame retardant, waterproof, easy to clean up | |
| 21 | Left anterior medical oxygen tank | 1 | Walker board, flame retardant, waterproof, easy to clean up | |
| 22 | Partipartition reverse with storage soft bag seat | 1 | 2 Seat belt | |
| 23 | Forward independent independent the doctor nursing seat | 1 | 3 Seat belt | |
| 24 | Double long strip seat on the right side | 1 | 2 Seat belt | |
| 25 | Moist-proof pad and wear-resistant medical floor | 1 | ||
| oxygen breathing system | 26 | A 10L iron oxygen cylinder | 2 | |
| 27 | With decompression humidified bottle | 1 | ||
| Medical assistance | 28 | Automatically get on a stretcher | 1 | |
| 29 | Stainless steel stretcher guide rail pad plate | 1 | ||
| 30 | Stainless steel stretcher guide plate | 1 | Air spring, ten thousand times of support, no shaking and abnormal sound | |
| 32 | Infusion rack | 1 | ||
| 33 | fire extinguisher | 1 | ||
| 34 | trash can | 1 | ||
