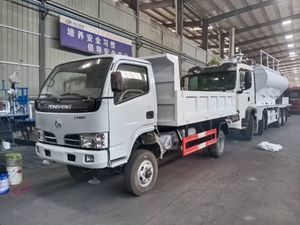

Efficient Tiltable Material Dumping Truck for Construction Sites
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $26,800 / Piece |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW | Fuel | Diesel |
|---|---|---|---|
| Emission Standard | Euro 5, Euro 5 | Condition | New, New |
| Transmission Type | Manual | Power | Diesel |
| Load Capacity | 1-10t | Drive Wheel | 4×2 |
| Engine Capacity | ＞8L | Seats | ≤5 |
| Horsepower | 150-250HP | Tire Certification | ECE, Gcc, ISO, DOT |
| Tire Design | Radial | Dumping Type | Bidirection Dumping Style |
| After-Sales Service | "One-Year Warranty For Product After-Sales Service | Transport Package | Complete Vehicle |
| Specification | 10T Dump Truck | Trademark | CLW |
| Origin | Hubei Suizhou | Production Capacity | 00vehicles Per Year |
Product Description
Tiltable Short-Distance Material Transport Vehicle
Overall dimensions: 7900*2550*3250
Box dimensions: 3600*5400*2400*800
Superstructure configuration: 3mm sides, 4mm bottom, single-opening tailgate, front top 137 domestic hydraulic cylinder
Chassis configuration: Tianjin model cab;
Engine: Yuchai 200hp; Front axle 5 tons, rear axle 10 tons;
Frame: 280 electrophoretic paint double-layer;
Transmission: 8-speed transmission; Tires: 10.00 steel wire tires;
Wheelbase: 3950/4500/4100mm,
Other configurations: Aluminum alloy fuel tank and air tank, Camel battery, Ruile brake valve. ABS new regulations, factory air conditioning; Camel battery, Ruile brake valve, electric windows.
Overall dimensions: 7900*2550*3250
Box dimensions: 3600*5400*2400*800
Superstructure configuration: 3mm sides, 4mm bottom, single-opening tailgate, front top 137 domestic hydraulic cylinder
Chassis configuration: Tianjin model cab;
Engine: Yuchai 200hp; Front axle 5 tons, rear axle 10 tons;
Frame: 280 electrophoretic paint double-layer;
Transmission: 8-speed transmission; Tires: 10.00 steel wire tires;
Wheelbase: 3950/4500/4100mm,
Other configurations: Aluminum alloy fuel tank and air tank, Camel battery, Ruile brake valve. ABS new regulations, factory air conditioning; Camel battery, Ruile brake valve, electric windows.
| [Vehicle technical parameters] | |||
| Product trademark | Cheng Li card | Announcement batch | 367 |
| product name | dumper | product model | CL3180ZX6AZT |
| gross mass (Kg) | 18000 | Tank volume (m3) | |
| Rated load mass (Kg) | 9205 | Overall dimensions (mm) | 6150×2350×2800 |
| Preparation mass (Kg) | 7850 | Goods Chamber Size (mm) | 3600×2200×500 |
| Number of passengers (person) | 2,3 | Maximum saddle load mass (Kg) | |
| axle weight (Kg) | 6500/11500 | Top vehicle speed (Km/h) | 89 |
| remarks | 1. Side and rear protective materials are Q235, connection mode: side protection is bolted, rear protection is welded connection, rear protective section size is 120mm 60mm, the lower edge is 490mm above ground height; 2. ABS system manufacturer: Guangzhou Automotive Electronics Co., LTD., ABS model CM4XL-4S / 4M; 3. The vehicle is equipped with driving recorder with satellite positioning function; 4. Select the cab front panel style, front lamp and front lower bumper, and select the side and rear structure of the cargo box.5. Corresponding relationship of engine / fuel consumption declaration (L / 100km): YCS06270-60 / 28.15, YCS06245-60 / 28.15, YCS04200-68 / 28.01.; 6. Equipped with direct power supply ETC; 7. The unloading mode is adopted. Select the installation position of fuel tank, urea tank, battery, air storage cylinder with the chassis, and select the post-processing position and style. | ||
| [Chassis technical parameters] | |||
| Chassis model | CL1181LDJ6 | Chassis name | truck chassis |
| brand name | Cheng Li card | manufacturing enterprise | Cheng Li Automobile Group Co., LTD |
| number of axles | 2 | Number of tires | 6 |
| wheel base (mm) | 3400,3600,3800,3950,4100,4500 | ||
| tyre size | 10.00R20 18PR,11.00R20 18PR | ||
| Number of steel plate spring sheets | 8/10+8,9/10+8,9/11+8,6/6+5,8/9+5,8/9+7,8/10+7,3/4+3,9/12+10,7/9+6,11/11+10 | front gauge (mm) | 1840,1880,1900,1940,1960,1980 |
| Fuel types | diesel oil | rear track (mm) | 1750,1800,1860,1880 |
| Emission basis standard | The GB17691-2018 countries | ||
| engine type | Engine production enterprise | displacement (ml) | power (Kw) |
| YCS04200-68 YCS06245-60 YCS06270-60 |
Guangxi Yuchai Machinery Co., LTD Guangxi Yuchai Machinery Co., LTD Guangxi Yuchai Machinery Co., LTD |
4156 6234 6234 |
147 180 199 |
