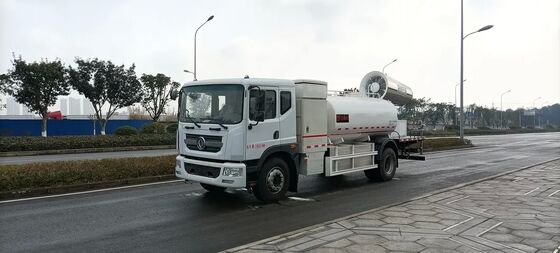

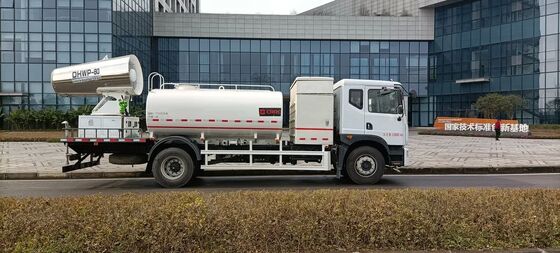

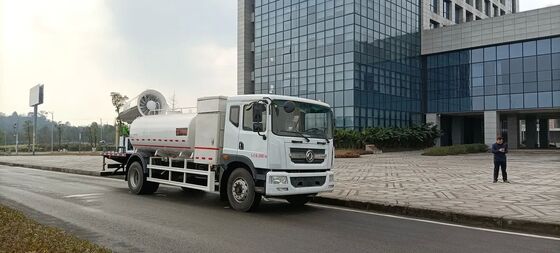

Dongfeng 4X2 10 Cubic Meter Pure Electric Sprinkler Truck with 360 Km Mileage and 100M Spray Range for Urban Dust Reduction
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $68,500-108,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC |
| Supply Ability | 150 sets/month |
Product Details
| Volume | 10001 - 15000L | Sprinkling Area | 12 - 16m |
|---|---|---|---|
| Payload | 20T | Drive Wheel | 4×2 |
| Engine Capacity | 239 Percent Battery Charge | Specification | 9940/9600*2530*3700/3620 |
| Highlight | 10 Cubic Meter Electric Sprinkler Truck,Dust Reduction Electric Sprinkler Truck,Urban Street Watering Electric Sprinkler Truck |
||
Product Description
Factory Direct Sales Suitable for Urban Street Watering and Dust Reduction Operations Dongfeng 4X2 10 Cubic Meter New Energy Pure Electric Sprinkler Truck
Product Overview
This 18 ton pure electric multifunctional dust suppression vehicle is a new generation of environmental sanitation product developed by our company. It adopts our self-developed CL1181JBEV Class II cargo truck pure electric chassis modification. This product combines our years of experience and technology in the environmental sanitation vehicle industry with in-depth research on market needs to solve customer pain points and improve operational convenience through a fully electric multifunctional dust suppression vehicle with integrated chassis and upper design.
Main Technical Parameters
| Project | Parameter | Remarks |
|---|---|---|
| Announcement parameters | Announcement of the whole vehicle: CL5186TDYBEV Announcement of chassis: CL1181JBEV |
|
| Quality parameters | Maximum total mass: 18,000 kg Quality of preparation: 10,140 kg Load quality: 7,730 kg Shaft load: 6,500/11,500 kg |
|
| Size parameters | Dimensions: Various lengths × 550 × 3,600-3,750 mm Wheelbase: 4,800 mm Front/Rear suspension: 1,490/3,070 mm Approach/Departure angle: 8°/11°, 8°/16° Tire: 295/80R22.5 18PR |
|
| Power battery | Type: Lithium iron phosphate Manufacturer: China Innovation Aviation Power: 231.1 kWh Nominal voltage: 502.32 V Energy density: 156.6 W*h/kg |
|
| Chassis motor | Type: Permanent magnet synchronous motor Rated/Peak power: 120/200 kW Rated/Peak torque: 500/1,000 Nm |
|
| Performance | Maximum speed: 90 km/h Mileage: 360 km Charging time: 0.5 hours (SOC 3.0%-80%) |
Isospeed method |
| Special parameters | Water tank volume: 10.1 m³ Water pump lift: 110 m Forward spray width: ≥8 m Middle spray width: ≥24 m Water cannon range: ≥40 m |
|
| Fog cannon parameters | Range: 100 m Covered area: 20,900-31,400 m² Total power: 39 kW Water consumption: 9.5 m³/h Water mist particle diameter: 20-200 μm |
Vehicle Classification
- Multi-functional sprinkler truck: Emphasizes multiple functions including watering, rinsing, and greening irrigation
- Environmental sanitation sprinkler truck: Highlights role in maintaining environmental hygiene
- Small sprinkler truck: Suitable for narrow roads or small areas
- Medium sized sprinkler truck: Moderate water carrying capacity and operational capability
- Large sprinkler truck: Large water capacity suitable for operating in large areas
Functional Features
- Watering to reduce dust: Lowers dust content in air by spraying water mist
- Road washing: Washes away dirt and debris on roads
- Greening irrigation: Provides water for roadside green plants
- High pressure water gun: Cleans stubborn stains or flushes buildings
- Water tank capacity: 10.1 cubic meter water storage capacity
- Spraying range: Extensive coverage area for water spraying
- Spray modes: Multiple modes including fog and column watering
Components and Technology
- Water tank material: High-quality construction materials
- Pump type: Determines spray pressure and flow rate
- Valve control: Regulates water flow size and direction
- Intelligent control system: Automated operation and monitoring
- Anti-corrosion treatment: Protects components from water corrosion
Application Scenarios
- Urban roads: Common workplace for sprinkler operations
- Dust reduction on construction sites: Reduces dust pollution
- Park greening: Waters plants in parks and green spaces
- Factory cleanliness: Maintains environmental hygiene in factory areas
- Highways: Conducts road surface cleaning and dust reduction operations
Frequently Asked Questions
Q1: Are you manufacturer or trading company?
A: We are direct manufacturer with more than 8 years' experience.
Q2: What is the lead time?
A: Normally it will take 20-45 working days after getting down payment.
Q3: How should I pay for you if I place order to you?
A: We prefer T/T, 30%-50% as deposit, balance before shipment, L/C is also acceptable and negotiable.
Q4: If I do not like the color, could I change the color?
A: Yes, most of our trucks have standard colors, if all colors could not meet your needs; we could customize by your request.
Q5: Can you supply the spare parts of this truck?
A: Yes, We can supply the spare parts for all the trucks we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
Q6: Do you have oversea service?
A: When you have some problems which you cannot solve, we will arrange our engineers to your country to help you.
Q7: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
