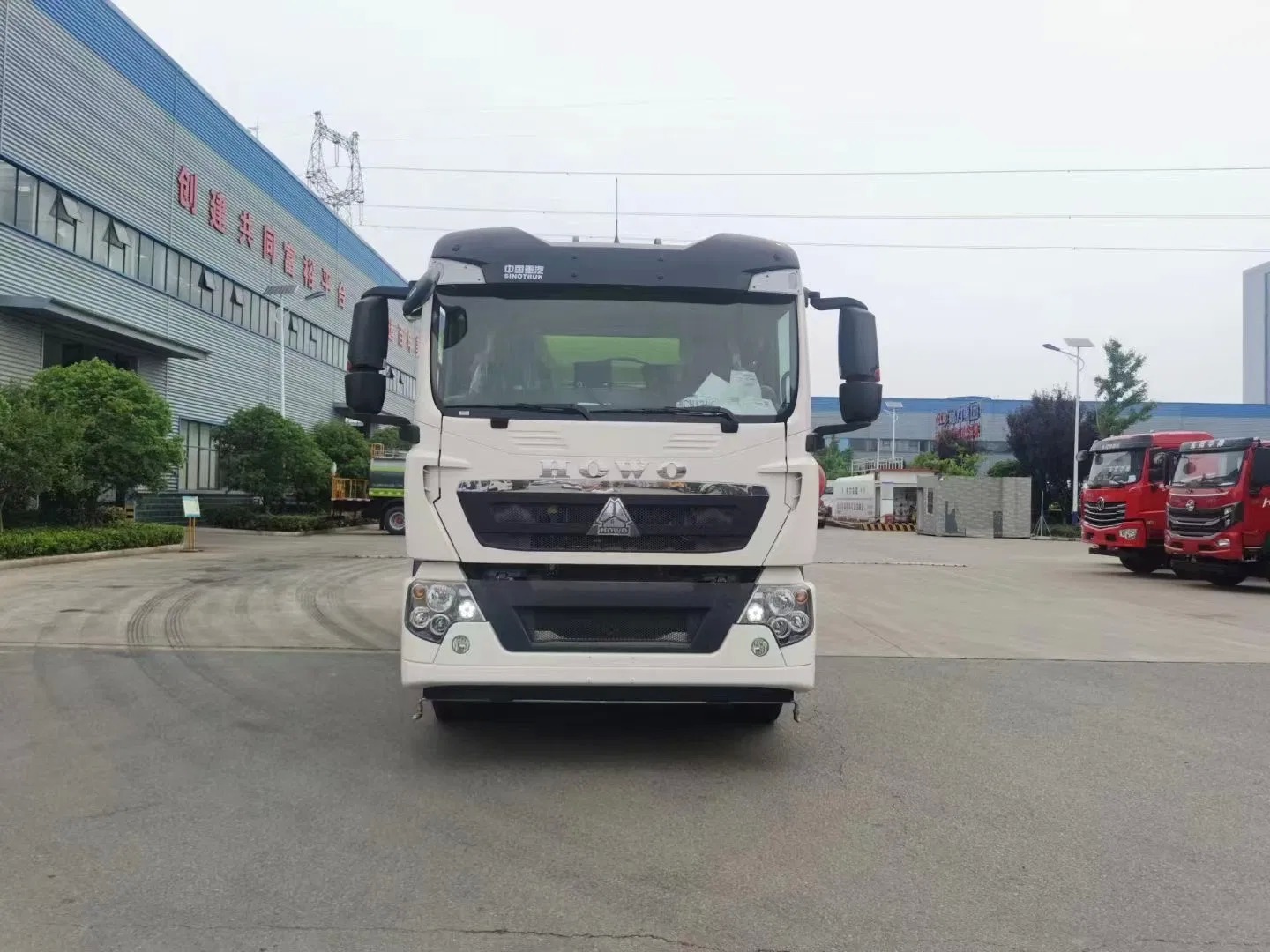

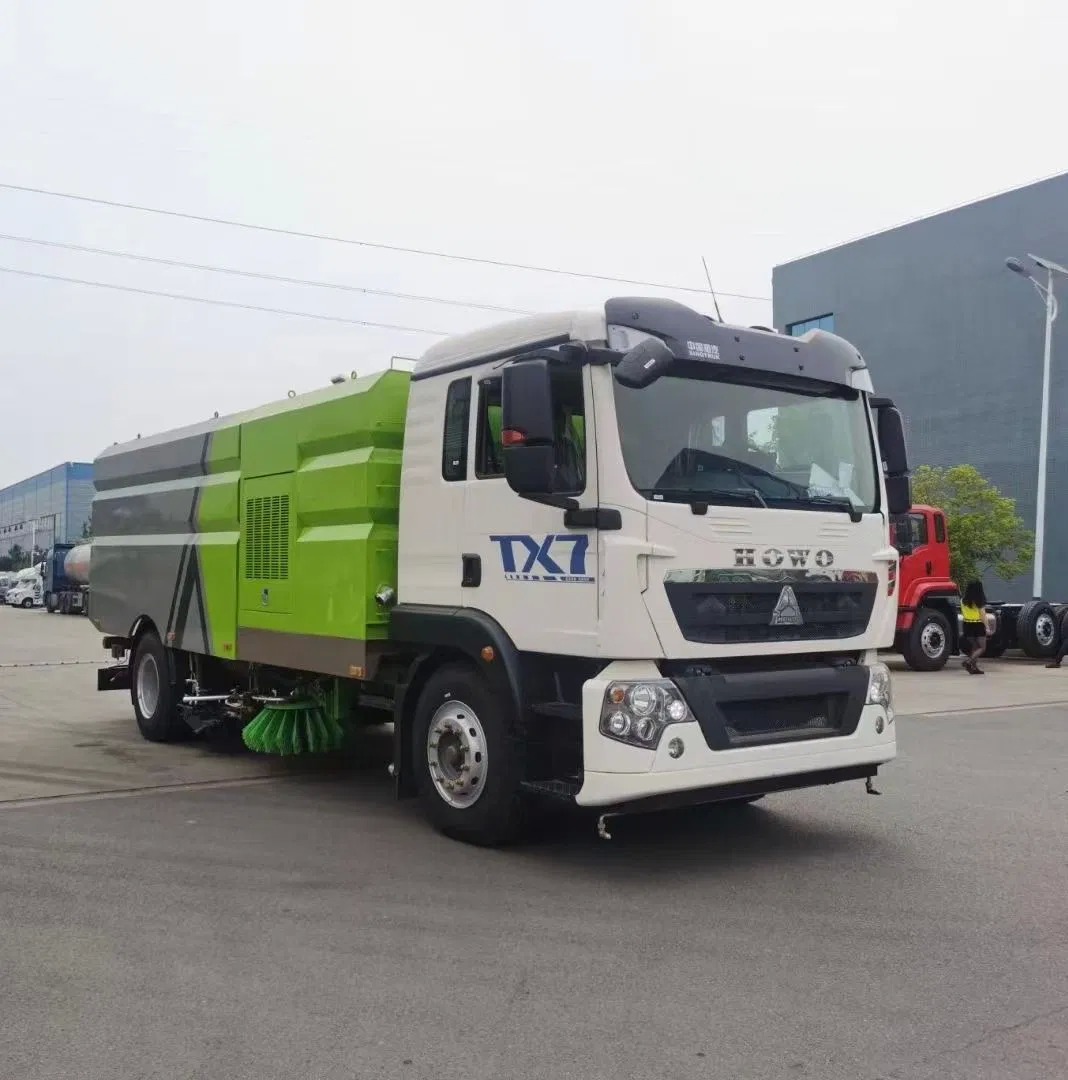

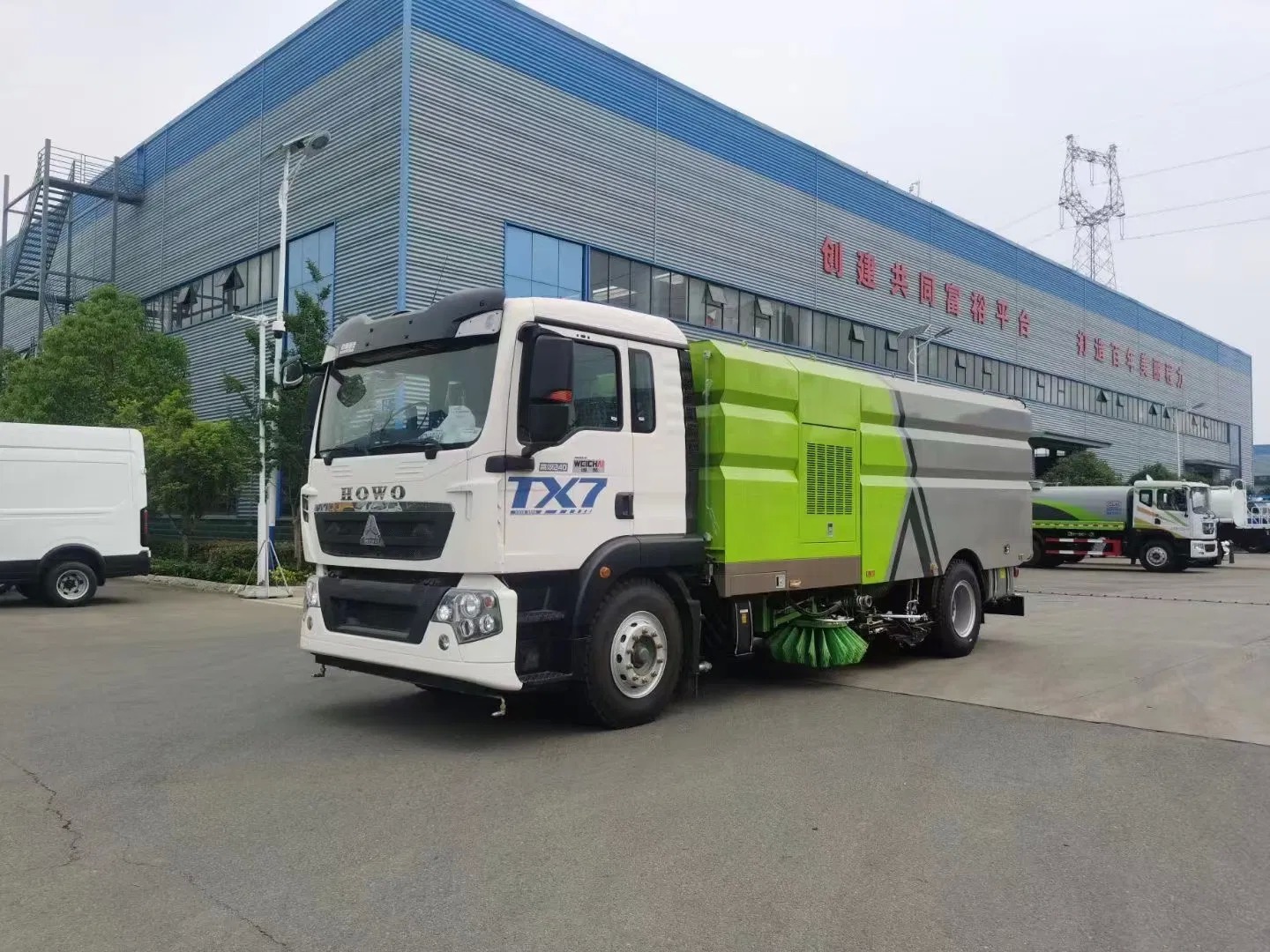

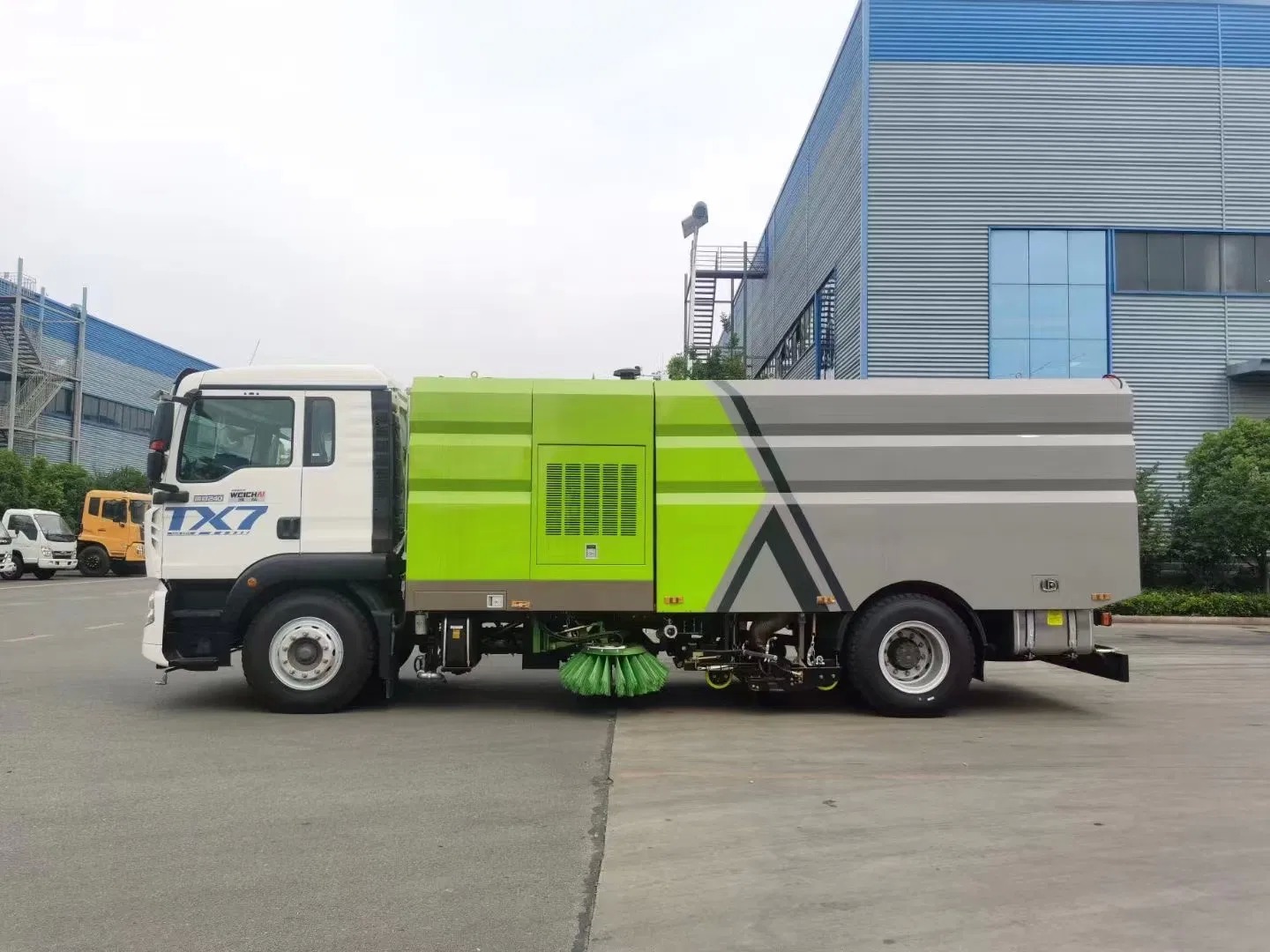

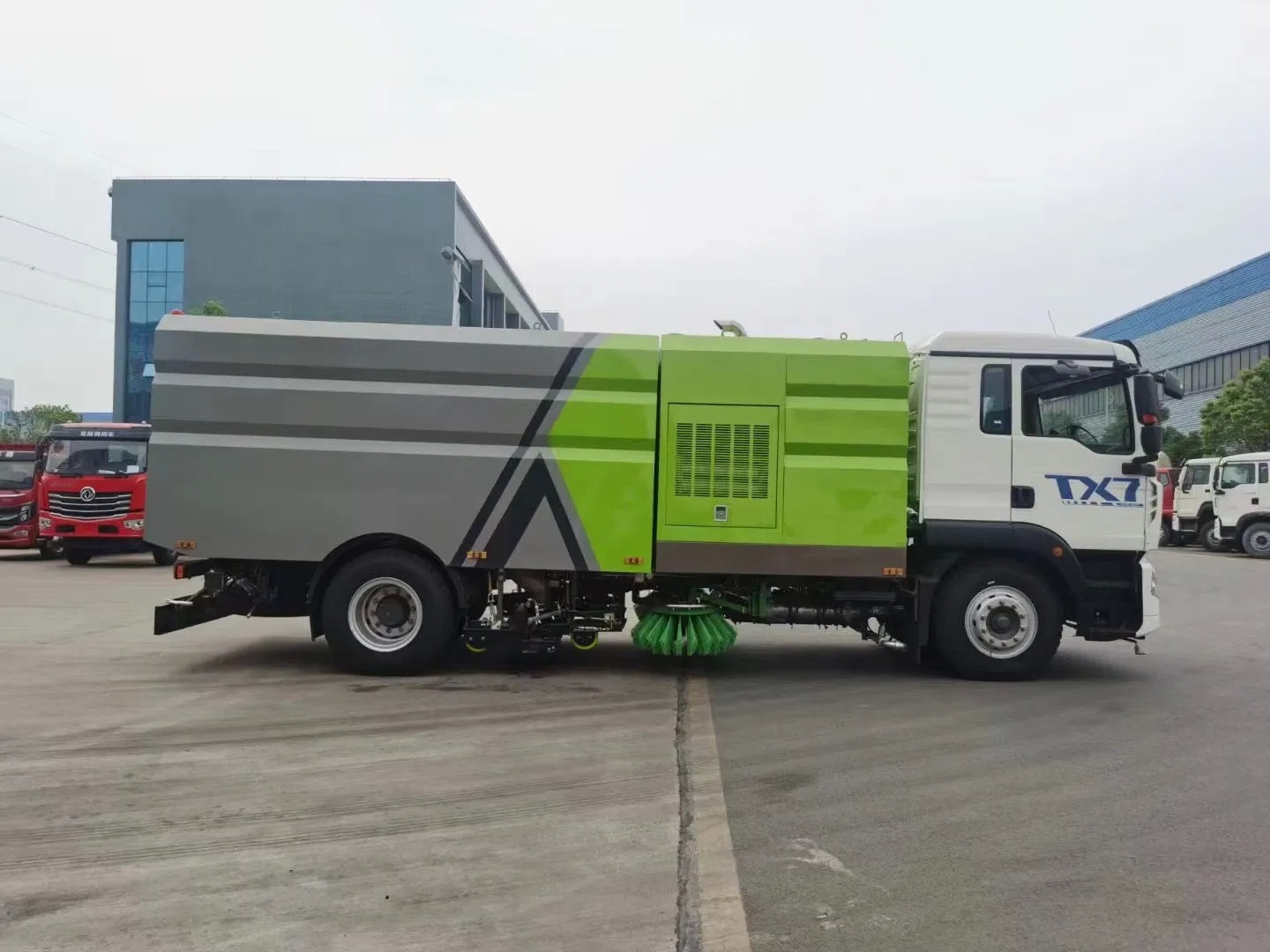

Sinotruk 4X2 Heavy-Duty Road Sweeper for Urban Cleanup
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $50,000-100,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW | Type | Self-propelled |
|---|---|---|---|
| Transmission Type | Manual | Emission Standard | Euro 3 |
| Fuel | Diesel | Payload | 18t |
| Use | Burnishing | Cleaning Process | Acid Claening\Pickling |
| Condition | New | Transport Package | Complete Vehicle |
| Specification | 18T | Trademark | Dongfeng |
| Origin | China | HS Code | 0601101000 |
| Production Capacity | 1000 |
Product Description
Cheng Liwei brand CLW5182TXSZ6 type 18T cleaning car
| [Vehicle technical parameters] | |||
| Product trademark | Cheng Liwei card | Announcement batch | 377 |
| product name | Wash the car | product model | CLW5182TXSZ6 |
| gross mass (Kg) | 18000 | Tank volume (m3) | |
| Rated load mass (Kg) | 6250,6185 | outline dimension (mm) | 8750×2530×3150 |
| curb weight (Kg) | 11620 | Goods Chamber Size (mm) | ×× |
| Rated passenger capacity (person) | Quasi-trailer total mass (Kg) | ||
| Number of passengers (person) | 2,3 | Maximum saddle load mass (Kg) | |
| Approach angle / departure angle of (°) | 17/13 | Front suspension / rear suspension (mm) | 1550/2100 |
| axle weight (Kg) | 6500/11500 | Top vehicle speed (Km/h) | 89,102,79 |
| remarks | 1. The special device of the vehicle consists of a cleaning device, sucking-off plant, The combination of dustbin and flushing system, Mainly used for road cleaning operations; 2. Side protection is replaced by a special device sweep brush, The rear lower protection is welded with the frame, Material is Q235A, Size of the rear protection section (mm): 23060, Height of the rear protection from the ground (mm): 490; 3.ABS model: 446 004 6300; ABS manufacturer: ZF Commercial Vehicle System (Qingdao) Co., Ltd.; 4. Only choose the wheelbase: 5,100 mm; 5. Select the speed limit device, Speed limit device speed limit (km/h): 79 or 89.6. optional cab appearance. Select the cab along with the chassis. | ||
| [Chassis technical parameters] | |||
| Chassis model | ZZ1187K511JF1 | Chassis name | truck chassis |
| brand name | Howell card | manufacturing enterprise | Sinotruk Group Jining Commercial Vehicle Co., LTD |
| number of axles | 2 | Number of tires | 6 |
| wheel base (mm) | 4500,4700,5100,5300,5600,5800,6000,3800,4200 | ||
| tyre size | 10.00R20 18PR,11R22.5 18PR,11.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR,295/60R22.5 18PR,305/60R22.5 18PR,315/60R22.5 18PR,275/80R22.5 18PR | ||
| Number of steel plate spring sheets | 3/9+6,4/-,4/5,4/9+6,9/9+6,-/2+-,2/2+-,3/2+-,4/2+-,7/7+3,3/7+3,2/1+-,3/1+-,4/1+- | front gauge (mm) | 1956,2022,2058,1996 |
| Fuel types | diesel oil | rear track (mm) | 1800,1830,1860 |
| Emission basis standard | The GB17691-2018 countries | ||
| engine type | Engine production enterprise | displacement (ml) | power (Kw) |
| WP6H270E61 WP6H245E61 WP4.6NQ220E61 WP7.300E61 WP7H220E62 WP7H245E62 WP7H270E62 WP7H300E62 WP7H320E62 WP4.6NQ220E62 WP4.6NQ240E62 |
Weichai Power Co., LTD Weichai Power Co., LTD Weichai Power Co., LTD Weichai Power Co., LTD Weichai Power Co., LTD Weichai Power Co., LTD Weichai Power Co., LTD Weichai Power Co., LTD Weichai Power Co., LTD Weichai Power Co., LTD Weichai Power Co., LTD |
6220 6220 4580 7470 6800 6800 6800 6800 6800 4580 4580 |
199 180 162 220 162 180 199 221 235 162 177 |
- The washing car adopts dongfeng Tianjin DFH1180EX8 type six second class automobile chassis modification, with auxiliary engine, fan, high pressure water pump, water box, dustbin, left and right sweep, wide suction nozzle with water spray rod, low pressure washing system, low pressure washing system, sweep plate dust system, hydraulic system, special device electronic control system and subframe modification.
- The secondary engine drive fan and high pressure water pump, the secondary engine uses Dongfeng cumins six-cylinder 170 horsepower diesel engine. The fan uses 8.0 high pressure centrifugal fan, high efficiency, high air volume, the highest air volume of 23500 m3/h. The high pressure pump adopts imported plunger pump with suitable flow and high pressure and maximum pressure up to 10MPa.
- The clear water box makes full use of the vehicle space, with a large volume of 9m3. The dustbin is made of single layer 304 stainless steel structure, with high pressure self-cleaning device. The self-cleaning device can help unload the bin and clean the inside of the dustbin.
- Left and right sweep for single sweep disk, reduce the number of brush and brush consumption, can reduce the cost of use. Left and right vertical sweep is controlled separately, which can realize different operation modes such as left sweep, right sweep and full sweep. The width of the wide suction nozzle reaches 2418mm, ensuring that the total operation width is greater than 3.5mm. The four highly adjustable nozzle wheels can adjust and ensure the reasonable gap between the nozzle and the road surface in many aspects. The suction nozzle has built-in high pressure water spray rod, arranging the high pressure washing nozzle as much as possible, not only the cleaning effect is good, but also can minimize the secondary pollution caused by the high pressure water airflow flushing the dirt.
- The left and right water spray rod is installed on the suction cup, with the suction cup lifting, the structure is simple and compact, to ensure that the height of the water spray rod is fixed, to achieve the best cleaning effect. Open hydraulic system drives the left and right vertical sweep lift, left and right sweep and circling, suction mouth lifting, dustbin back door opening and closing, dustbin roll over reset and other mechanical actions.
- The chassis gearbox side force collector drives the low-pressure water pump to realize the low-pressure flushing function of the sprinkler, and start and stop operation.
- Type washing car has road cleaning, road cleaning, curb cleaning, curb and curb facade washing, low pressure washing, spray dust removal and other functions. There are "full wash sweep", "left wash sweep", "right wash sweep", "full sweep", "left sweep", "right sweep" and other operation modes can be selected. Select the "full washing and sweeping" mode to clean the square and road surface, high cleaning efficiency and good effect, the washing rate of more than 90%. Select "Left Wash" or "Right Wash" mode to clean the pavement and curb, and wash the curb facade. When road cleaning or road cleaning operation is required, choose road cleaning mode. When spray dust removal is needed, the spray device can be opened to conduct spray dust removal operation. Low-pressure flushing operations can be performed on the road surface like a sprinkler.
Dedicated performance parameters |
Dumster Volume (m3) | 7 (made of stainless steel) | ||||
| Clear water tank volume (m3) | 9 (made of stainless steel) | |||||
| Cleaning Width (mm) | 2800-3200 | |||||
| Cleaning operation speed (km/h) | 3-15 | |||||
| Cleaning operation speed (km/h) | 15-20 | |||||
| Maximum cleaning capacity (m2 / h) | 48000 | |||||
| Suction ability | Density (g/cm3) | 2.0 | ||||
| Cleaning operation time | 2-4 Hours | |||||
| Suction particle size (mm) | ≥100 | |||||
| Garbage box dump Angle | ≥45° | |||||
| Cleaning efficiency | ≥96% | |||||
| Operation noise (db) | <88 Compliance with the GB7258 requirements | |||||
| Driving performance parameters | Drive type | 42 Rear axle drive | ||||
| Suspension type | plate spring | |||||
| Number of leaf springs (front / back) | 8/10+7 | |||||
| Brake type | Double-circuit air pressure brake, drum type | |||||
| Brake distance (full load of 30 km/h) | ≤10m | |||||
| Top vehicle speed (km/h) | 99 | |||||
| Minimum turning radius (m) | 8 | |||||
| maximum gradability | ≥30% | |||||
| Clutch system | Single-piece dry diaphragm spring clutch, hydraulic control | |||||
| Transmission system | Mechanical 5-gear transmission, with synchronizer, manual | |||||
| Engine fuel consumption | Driving force (L / 100km) | school assignment (L/h) | Operation (L / 10000m2) | |||
| ≤14 | ≤8 | ≤5 | ||||
| Dust system | Water spray form | Low pressure fog | ||||
| Main components | Inlet high pressure pump, water filter, pipeline, stainless steel nozzle, high pressure nozzle, etc | |||||
| High pressure pump | German Pinfu | |||||
| installation site | Clean dust | Left and right front sweep plate | ||||
| Dust absorption and dust removal | Inside the suction outlet of the suction cup | |||||
| Control type | Electronic control, one-click operation | |||||
| hydraulic pressure system | type | Open mode, electric motor control and centralized manipulation | |
| major component | Gear pump, cycloid motor, hydraulic cylinder, solenoid valve, integrated block, high-pressure pump, etc | ||
| Wiring motor | Sanyo motor | ||
| geared oil pump | Long source machinery | ||
| hydraulic jack | Heidrevo oil cylinder | ||
| Hydraulic cylinder seal | Taiwan dingji | ||
| Hydraulic tubing | Guangzhou tianhe | ||
| Electromagnetic valve group | Hyderrevo | ||
| Earthquake-proof pressure gauge | Germany IMT | ||
| Return oil filter | Sofima, Shanghai | ||
| System overflow pressure | Mpa | 10-12 | |
| Hydraulic tank volume | L | ≥60 | |
| Electrical system | system composition | It is composed of chassis vehicle circuit and auxiliary engine electrical part and operation control circuit of special working device. | |
| Chassis vehicle system voltage (V) | 24 | ||
| Operating Device System Voltage (V) | 12 | ||
| Electric control box panel composition | Auxiliary engine tachometer, auxiliary engine water temperature meter, oil temperature alarm device, various operation and control switches | ||
| control switch | siemens | ||
| Programmable logic controller | Omron, Japan | ||
| circuit breaker | Germany Haig | ||
| Battery model | 12V-70A.H (2 only in parallel) | ||
| Fan system | type | Special high-pressure centrifugal fan | |
| brand | Luoyang north slope fan | ||
| Rated working speed | r/min | 2700 | |
| Transmission type | Auxiliary engine, clutch, with tooth high temperature resistant A belt drive (4 roots) | ||
| Fan belt | Zhejiang sanlishi | ||
| automatic clutch | Centrifugal, imported material, warranty for one year, service life up to 20,000 working hours | ||
| Air volume (m3/h) | 5000 ~ 7800 | ||
| Cleaning system | type | Between the front and rear axles of the chassis, a lifting and extending vertical sweep plate of the frame is arranged on both sides of the frame. The sweep hover is driven by the hydraulic motor, and the speed is adjustable. | |
| Main components | Sweep disk support, sweep disk, oil cylinder, oil pipe, connecting rod, adjusting rod, hydraulic motor, etc | ||
| Scan to open the diameter | mm | φ800-900 | |
| Disk motor speed | r/min | 140 | |
| The quantity of sweep dish | 2 | ||
| Number of a single sweep disk with a brush | 22 | ||
| Slash tilt Angle adjustment | The front sweep dish | 5°~15° forward 5°~10° forward | |
| After sweeping the plate | 5°~10° 5°~10° | ||
| Mouth suction device | type | The suction nozzle is suspended between the rear wheels of the chassis car, composed of suction nozzle, roller, straw, the nozzle body can be moved, the suction nozzle lift is controlled by the oil cylinder double suction nozzle wide nozzle, built-in long row spray rod with high pressure nozzle (nozzle number 8), suction nozzle body and the road surface. Hydraulic drive electrical automatic control suction nozzle lifting, spring floating suspension. | |
| The diameter of the straw | mm | Φ180 | |
| Suckling brand | Germany NORRES | ||
| Walking wheel bearing | Swedish SKF (Skffer) | ||
| Walking wheel wear-resistant outer ring | The Swedish Stellana | ||
| Working status at the mouth ground clearance (mm) |
5~8 | ||
| Sucstraw wind speed (m/s) | 50 ~ 65 | ||
| Suction mouth (mmH2O) | 380 | ||
| Other configuration | alarm system | Reversing voice alarm system | |
| Secondary operating system | Tail live control operating system, control the large box lift and rear door switch, to avoid the user in the cab operation due to can to observe the rear situation safety accidents. | ||
| Manual pump emergency lifting system | If the hydraulic system cannot be used due to the secondary engine fault, the sweep brush, suction cup and large box can not be lifted, so the manual pump emergency lifting system can be used to operate. | ||
1:What payment methods do you support? - We support T/T and LC and other ways you need. 2:What is your minimum order quantity? - One unit.
3. How about the delivery time? - Generally it will takes 10 to 30 days after receiving your deposit. The sactual date will be depended on your order and item. We will contact you if we confirm the delivery date. And we will track the goods all the time until the goods reach to the destination.
4.How can I confirm whether your products will meet my needs? -You can tell us your needs such as size, material, volume, height and other information, our professional sales will provide solutions.
5. How do you pack the products? - Standard shipping packaging.
6. How about the price? - To provide the top quality product with competitive price is our mission all the time. We want a long-term business relatonship with our customers rather than cooperate for once.
7. How can I trust you? - We have 15 years of experience in the trailer manufacturing field; and we have our own factory. - We have supplied for many famous company at home and abroad; - We want to provide great service for you rather than just provide a price and product for you; - To meet you is the first step, then we would like to make friends and maintain the business relationship with you all the time.
