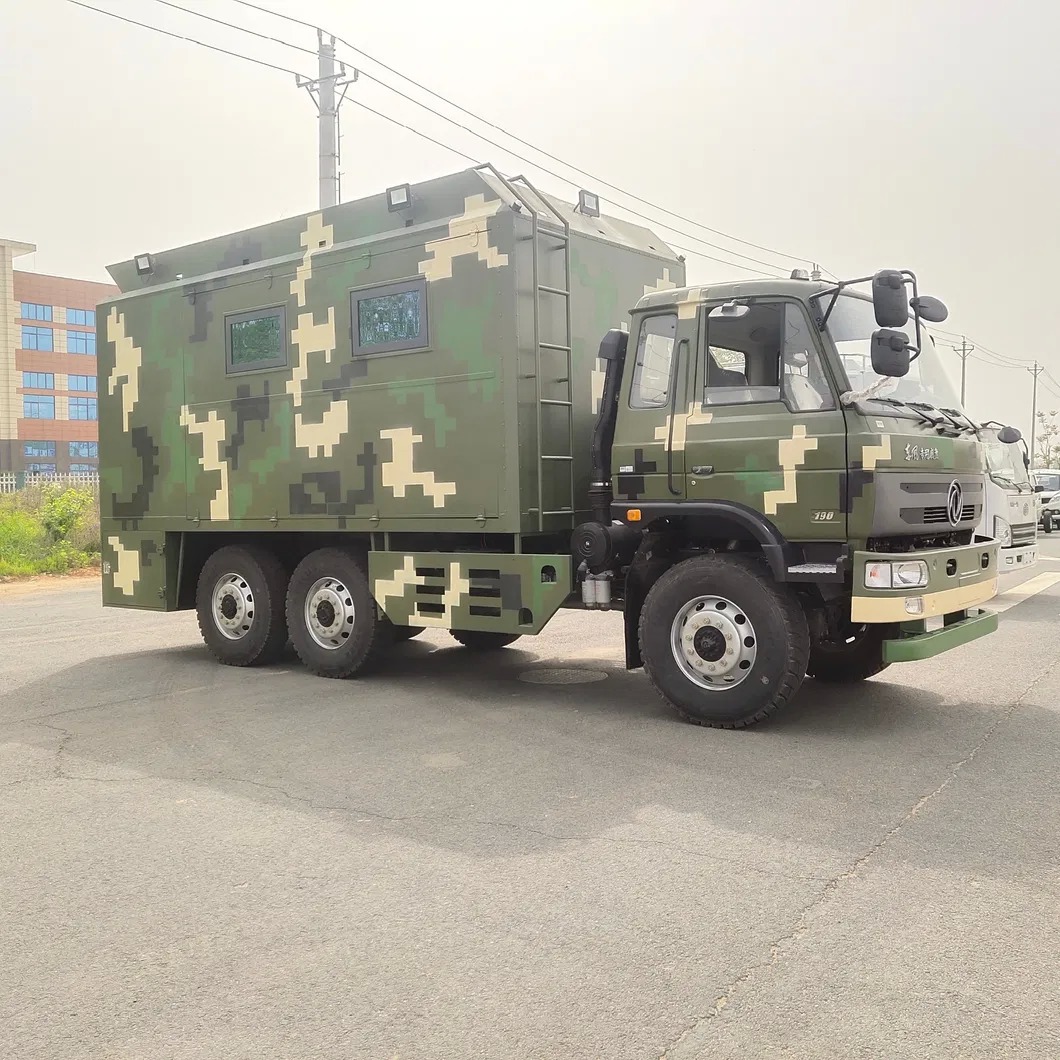

Professional-Grade Dongfeng 6X6 off-Road Self-Propelled Kitchen Vehicle Motorhome
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $30,000-120,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW | Type | Ambulance |
|---|---|---|---|
| Transmission Type | Manual | Fuel | Gasoline |
| Emission Standard | Euro 4 | Length | 8-15m |
| Medical Equipment | With Medical Equipment | Horsepower | 210-260hp |
| Axle | Single | Condition | New |
| Transport Package | Bulk Ship, RO-RO, Container | Specification | 7850X2460X3670 |
| Trademark | CLW | Origin | Suizhou China |
| Production Capacity | 500 Unit/Month |
Product Description
Professional-Grade Dongfeng 6X6 off-Road Self-Propelled Kitchen Vehicle Motorhome
| [Vehicle technical parameters] | |||
| product name | Field cooking car | ||
| gross mass (Kg) | 9350,9495 | Tank volume (m3) | |
| Rated load mass (Kg) | outline dimension (mm) | 7850×2460,2500×3670 | |
| curb weight (Kg) | 9155,9220,9300,9365 | Goods Chamber Size (mm) | ×× |
| Rated passenger capacity (person) | Quasi-trailer total mass (Kg) | ||
| Number of passengers (person) | 3,2 | Maximum saddle load mass (Kg) | |
| Approach angle / departure angle of (°) | 35/17 | Front suspension / rear suspension (mm) | 1475/1625,1440/1660 |
| axle weight (Kg) | 3265 / 6085 (2 axis group), 3280 / 6215 (2 axis group) | Top vehicle speed (Km/h) | 89 |
| [Chassis technical parameters] | |||
| brand name | Dongfeng brand | manufacturing enterprise | Dongfeng Commercial Vehicle Xinjiang Co., LTD |
| number of axles | 3 | Number of tires | 6 |
| wheel base (mm) | 3500+1250 | ||
| tyre size | 315/80R22.5 20PR | ||
| Number of steel plate spring sheets | 10/12 | front gauge (mm) | 1876,1900 |
| Fuel types | diesel oil | rear track (mm) | 1880/1880 |
| engine type | Engine production enterprise | displacement (ml) | power (Kw) |
| B6.2NS6B210 |
Dongfeng Cumns Engines, Ltd |
6200 |
154 |
|
Steering Wheel
|
Left hand or right hand drive with power-assisted
|
|
The standard configuration
|
1. electric/gas dual-purpose rice cooker (for 300 people at the same time) Specifications: single door, 10 layers; steaming plate material: stainless steel; steamed rice plate size: length 0.6* width 0.4 m; steaming cabinet size: It is 0.68 meters long, 0.54 meters wide and 1.32 meters high. The steamed rice is 300 people; the steaming time is 35 minutes.
2. Double-eye cooktop: Specification: Double cooktop; Material: Stainless steel; Size: Length 1.8/1.5*0.8*0.82 m; Fuel: Methanol/diesel/natural gas.
3. Refrigerator / freezer: stainless steel, 1.5 * 0.6 * 0.8 m
4. Sales window: Specifications: up and down; up: sun visor; next exhibition: sales window, window sill height (high from the ground): 1.33 meters
5. Operation console:
Operation panel: Material: brushed / patterned stainless steel; size: length 4.18 * width 0.64 m
Sink: Material: stainless steel; size: length 0.42* width 0.37 m
Dish rack: Specification: 2 layers; Material: Stainless steel; Size: Length 4.18*Width 0.64m
6. Wall cabinet: size: 1500*400*300mm
7. Range hood: Material: stainless steel; device: wall fan, overhead exhaust.
8. Clean water tank: Specifications: stainless steel, with booster pump; volume: 290L, 0.5 square; position: front section of the compartment.
9. Sewage tank: Specifications: stainless steel, with stainless steel ball valve; volume: 0.3 square; position: car seat skirt.
10. Fuel tank: Specification: Stainless steel; Volume: 120L; Position: Cabin skirt.
11. Top window: Specifications: Manual; Size: 60*60CM
12. Ladder/Guardrail: Material: Stainless steel
13. Circuit: electric control box, main power switch; lighting circuit; 15m external power cord
14. Ventilation window: size: 0.39*0.48 meters; quantity: 3
|
|
Optional configuration
|
1. Silent fuel generator: gasoline / Cape 3KW / light generator
2. Air conditioning: 1P wall-mounted (Gree / beautiful) (suitable within 14m2)
3. Soymilk: Multi-functional juice soymilk
4. Insulation barrel: Material: stainless steel; volume: 50L; thermal insulation performance: 6-12 hours
5. Multi-function sealing machine: manual / automatic sealing machine
6. Insulation selling table: material: stainless steel; specification: 6 grid / 12 grid
7. Oven: Midea 21-30L; Specification: 450*300*230mm
8. Water heater: fast heat, hanging water heater; volume: 30L/40L/60L
9. Accept other special customizations.
|
FAQ
Q1. Payment term.
T/T ,30% as despite ,and 70% before delivery from factory.
L/C, L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.
Q2. Terms of delivery
EXW, FOB, CFR, CIF, DAF ,FCA ,DDU.DAP etc .
We mainly do FOB,CIF,DAF
Q3. Delivery time
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.(if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to contract .)
Q4. Quality and warranty
We have Rich experience workers and engineer to control quality before and on production , we strictly follo STATE special trucks technical specification and safety production specification . we 100% test trucks before delivery.
Our Warranty :12 months
We will provide the spare parts for free in one year.
Q5. How to trust us ?
You browse products by made-in-china website,our company pass BV factory audit. And you also can arrange a third party inspect our factory.
We have been in this line for over 15 years, dealing with all kinds of trucks.
Q6.Visit our factory
Our factory are in suizhou city,hubei province, china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province,near our factory) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.
