15 Emergency Rescue Personnel Carriers for Personnel Transportation
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $30,000-78,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW | Payload | 20T |
|---|---|---|---|
| Emission Standard | Euro 4 | Transmission Type | Manual |
| Horsepower | 150-250hp | Fuel | Gasoline |
| Bearing Capacity | Small | Car Type | Bread Type |
| Condition | New | Drive Wheel | 4X4 |
| Transport Package | Bulk Ship, RO-RO, Container | Specification | 5995 * 2000 * 2740(mm) |
| Trademark | CLW | Origin | Suizhou China |
| Production Capacity | 500 Unit/Month |
Product Description

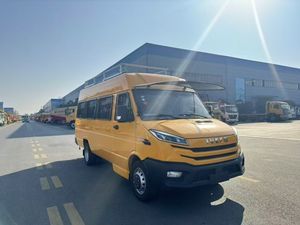

15 emergency rescue personnel carriers for personnel transportation
| [Main technical parameters] | ||
| Product Name | Deyi Engineering Vehicle | |
| Product model | DLQ5041XGCYK6 | |
| Overall dimensions: | 5995 * 2000 * 2740mm | |
| Container size: | 1820 × 1835 × 580 (mm) | |
| Total mass: | 4480 (Kg) | |
| Kerb weight: | 2510 (Kg) | |
| Rated passenger carrying: | 6-9 (human) | |
| Wheelbase | 3310 (mm) | |
| Number of axes | 2 | |
| Axle Load (Kg) | 1650/2830 | |
| Approach angle/departure angle (°) | 21/9 | |
| Front overhang/rear overhang | 980/1705 (mm) | |
| Front track/rear track | 1695/1540 (mm) | |
| Number of tires | 6 (pieces) | |
| Tyre specifications | 195/75 R16LT 10PR | |
| Maximum speed | 120 (km/h) | |
| Minimum turning radius | 12.1 | |
| Tank volume | 70L | |
| [Engine parameters] | ||
| Engine model | SOFIM8140. 43S6 | |
| Displacement | 2798 (ml) | |
| Power (kw)/Horsepower (PS): | 95/129 | |
| Fuel type: | Diesel oil | |
| Chassis emission standard | National VI | |
| Gearbox | 5-speed gearbox | |
| Braking form | Four-wheel disc type | |
| [The chassis comes with its own configuration] | ||
| Sound system | Single DIN radio with MP3 | |
| Safety belt | Drivers seat three-point warning system with alarm | |
| ABS | Avoid vehicle loss of control during sudden braking and reduce brake disc loss | |
| Lateral stabilizer bar | Strengthen body stability | |
| Front electric windows | Front electric lifting window, more convenient and easy. | |
| Remote Key | Can use the remote key to lock the car with one button | |
| Air conditioner | 5KW heating and cooling air conditioner | |
| Electrically adjustable headlights | Multi-speed adjustable, and the light height can be adjusted according to the driving road conditions | |
| Reversing | Convenient timely reminder of obstacles when reversing | |
| Front fog lamp | Equipped | |
Exporting
As Manufacturer, We Have Our Own License Of Import And Export.We Have Successfully Exported To Ghana, Sudan, Nigeria,
Angola ,Tajikistan, Namibia, Burma, Korea, Iran,American,Afghanistan,Iraq And Some Other Countries.The Development Of Our
Factory Is Getting Better And Better.
After Sales Service
Answer and solve your questions and consult within 24 hours
Overseas job site service available
One year guarantee about three key parts(axle, engine, transmission).Other spare parts could be supplied by cost price.
Other services:
1.All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current
production condition.
If you are interested in our trucks, pls contact me, I will send our best quotation to you.
