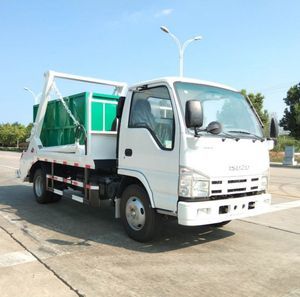

Factory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $13,800-18,800 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW5071ZBS5 | Type | Recycling |
|---|---|---|---|
| Volume | 3001-6000L | Emission Standard | Euro 4 |
| Transmission Type | Manual | Fuel | Diesel |
| Drive Wheel | 4×2 | Models | Medium |
| Usage | Dump, Swing Arm Type, Hang Barrel Type, Arm Type, Compression Type | Condition | New |
| Operation Mode | Manual + Wireless Remote Control | Tire Specifications | 7.00r16steel Wire Tire |
| Unloading Method | Rear Unloading | Transport Package | Complete Vehicle |
| Specification | 5995*2150*2950 | Trademark | CLW |
| Origin | Hubei, China | Production Capacity | 1000 |
Product Description
Introduction to the function of swing arm garbage truck
Chengli special vehicle swing arm garbage truck (hereinafter referred to as garbage truck) is a special vehicle used for the collection, transportation and unloading of urban bagged and bulk domestic garbage.
The car is composed of a chassis, an arm, an arm cylinder, a lifting chain, a supporting leg, a leg cylinder, a bottom plate and a multi-way reversing valve. The big arm is connected to the bottom plate, the moving end of the big arm cylinder is connected to the big arm, and the fixed end is connected to the bottom plate; the protruding and recovery of the big arm cylinder can rotate around the hinging point to realize the lifting and dumping of the garbage bin. The protruding and recovery of the leg oil cylinder can make the supporting leg protrude out and put away, and play the role of stabilizing the whole car.
The car can lift the garbage and dustbin in the underground garbage bin to the car and unload it at the same time, reducing the labor intensity of workers. The collection and transportation method of the garbage truck is widely used in the world at present. It can realize one vehicle and more boxes, greatly reducing the cost and space of equipment. The functions of its special devices are powered by automobile engines and realized through manual or electronic control by hydraulic mechanisms. The box of the vehicle is welded with high-quality carbon steel plate, which has the advantages of high strength, light weight and no secondary pollution.
Top-loading configuration table:
FAQ
Q1: Are you manufacturer or trading company?
A: We are direct manufacturer with more than 20years' experience.
Q2: What is the lead time?
A: Normally it will take 20-45 working days after getting down payment.
Q3: How should I pay for you if I place order to you?
A: We prefer T/T, 30%-50% as deposit, balance before shipment, L/C is also acceptable and negotiable.
Q4: If I do not like the color, could I change the color?
A: Yes, most of our trucks have standard colors, if all colors could not meet your needs; we could customize by your request.
Q5: Can you supply the spare parts of this truck?
A: Yes, We can supply the spare parts for all the trucks we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
Q6: Do you have oversea service?
A: When you have some problems which you cannot solve, we will arrange our engineers to your country to help you.
Q7: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Flexible Payment Terms for Different Trucks and Business Besides traditional payment terms such as TT, LC, we still offer our stable and long-term partners with various financial support and credit payment terms at different periods. Excellent and Outstanding After Sales Service Our professional technicians and mechanics and parts staff always concentrate all our products and our customers. Top Starting Point, High Quality and Worry-free Service is our promise to all our customers.
Chengli special vehicle swing arm garbage truck (hereinafter referred to as garbage truck) is a special vehicle used for the collection, transportation and unloading of urban bagged and bulk domestic garbage.
The car is composed of a chassis, an arm, an arm cylinder, a lifting chain, a supporting leg, a leg cylinder, a bottom plate and a multi-way reversing valve. The big arm is connected to the bottom plate, the moving end of the big arm cylinder is connected to the big arm, and the fixed end is connected to the bottom plate; the protruding and recovery of the big arm cylinder can rotate around the hinging point to realize the lifting and dumping of the garbage bin. The protruding and recovery of the leg oil cylinder can make the supporting leg protrude out and put away, and play the role of stabilizing the whole car.
The car can lift the garbage and dustbin in the underground garbage bin to the car and unload it at the same time, reducing the labor intensity of workers. The collection and transportation method of the garbage truck is widely used in the world at present. It can realize one vehicle and more boxes, greatly reducing the cost and space of equipment. The functions of its special devices are powered by automobile engines and realized through manual or electronic control by hydraulic mechanisms. The box of the vehicle is welded with high-quality carbon steel plate, which has the advantages of high strength, light weight and no secondary pollution.
Top-loading configuration table:
| Order | Name | Specifications and models |
| Chassis name/model | Isuzu | |
| 1 | Total mass | 7360kg |
| 2 | Wheelbase (mm) | 3300Mm |
| Three | Matching trash canVolume m3 | 4 |
| 4 | Top material | The attachment adoptsWugang Q345 low alloy manganese steelProduction, big arm assemblyAdopt Q710 high strengthSteel |
| 5 | Lifting weight | 6tons |
| 6 | Form of work | Telescopic arm |
| 7 | Hydraulic cylinder | Hypris,Yantai Future, Xiamen Yinhua |
| 8 | Oil pump | Changyuan(Well-known domestic brands) |
| 9 | Multi-way valve | Zhongmei, Yangzhou, Jiangsu ProvinceHonghui |
| Ten | Hydraulic oil pipe | Eaton, USA, Bonway hydraulic oil pipe (high-density double-layer 24Mpa) |
| 11 | System rated pressure | 18 MPa |
| 12 | Control system | Wired and electronic control |
| 1Three | LuggageGarbage removal time | ≤60Small size |
| 14 | Control method | All-in-one independent operation of the handsplet (standard remote control) |
| 15 | Key component structure | .Reinforced with cast steel parts |
| 16 | The design of the whole vehicle | Use SW three-dimensional software to simulate |
| 17 | Body color/text | Body color and text painting can be customized according to customer requirements. |
| 18 | Attachment | Profile light, side light, work light |
FAQ
Q1: Are you manufacturer or trading company?
A: We are direct manufacturer with more than 20years' experience.
Q2: What is the lead time?
A: Normally it will take 20-45 working days after getting down payment.
Q3: How should I pay for you if I place order to you?
A: We prefer T/T, 30%-50% as deposit, balance before shipment, L/C is also acceptable and negotiable.
Q4: If I do not like the color, could I change the color?
A: Yes, most of our trucks have standard colors, if all colors could not meet your needs; we could customize by your request.
Q5: Can you supply the spare parts of this truck?
A: Yes, We can supply the spare parts for all the trucks we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
Q6: Do you have oversea service?
A: When you have some problems which you cannot solve, we will arrange our engineers to your country to help you.
Q7: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Flexible Payment Terms for Different Trucks and Business Besides traditional payment terms such as TT, LC, we still offer our stable and long-term partners with various financial support and credit payment terms at different periods. Excellent and Outstanding After Sales Service Our professional technicians and mechanics and parts staff always concentrate all our products and our customers. Top Starting Point, High Quality and Worry-free Service is our promise to all our customers.
