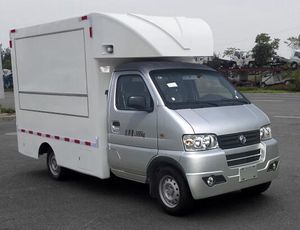

Special Dining Cart Suitable for Outdoor Cooking
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $45,000-65,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW5879TYDF5 | Type | Recycling |
|---|---|---|---|
| Volume | 10001-15000L | Emission Standard | Euro 4 |
| Transmission Type | Automatic | Fuel | Gasoline |
| Drive Wheel | 4×2 | Brand | Dongfeng |
| Models | Micro | Usage | Dump |
| Condition | New | Transport Package | Complete Vehicle |
| Specification | 15 Square | Trademark | CLW |
| Origin | China | HS Code | 2801100000 |
| Production Capacity | 1000 |
Product Description
Model introduction:
The compressed garbage truck is composed of a sealed garbage box, a hydraulic system and an operating system. The whole vehicle is fully sealed. The sewage in the process of self-compression, self-dumping and compression all enters the sewage compartment, which completely solves the problem of garbage transportation.Secondary pollutionThe problem avoids inconvenience to people. The key parts are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety and so on. It can be equipped with a variety of rear-hanging bucket flipping mechanism or garbage bucket flipping mechanism.
Main technical parameters:
The compressed garbage truck is composed of a sealed garbage box, a hydraulic system and an operating system. The whole vehicle is fully sealed. The sewage in the process of self-compression, self-dumping and compression all enters the sewage compartment, which completely solves the problem of garbage transportation.Secondary pollutionThe problem avoids inconvenience to people. The key parts are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety and so on. It can be equipped with a variety of rear-hanging bucket flipping mechanism or garbage bucket flipping mechanism.
Main technical parameters:
| [Main Technical Parameters] | |||
| Product trademark | Fengba brand | Announcement batch | 336 |
| Product name | STD5030XCCEQ6 dining car | Product number | AR4JY6L902H. |
| Total mass (Kg) | 3495 | Tank volume (m3) | |
| Rated Load Mass (Kg) | Dimensions (mm) | 5000 x 2000 x 3000 | |
| Prepared mass (Kg) | 3365 | Rated passenger capacity (person) | 2 |
| The number of passengers in the cab (persons) | 2 | Load mass utilization coefficient | |
| Approach angle/departure angle (°) | 21/19. | Front suspension/rear suspension (mm) | 1181/769,1181/1119 |
| Number of axes | 2 | .Wheelbase (mm) | 2600,2800 |
| Shaft load (Kg) | 1300/2195. | Maximum speed (Km/h) | 100 |
| Other | 1. The top of the carriage is closed and cannot be opened; 2. The internal equipment of the carriage is equipped with generators, freezers, vending tables, cookware, etc., which are used for cooking food and food processing. 2, only 2700mm wheelbase is selected, and the correspondence of the whole vehicle length/front suspension/rear suspension is (mm): 4650/1181/769,4650/545/1405,,5 000/1181/1119,5000/545/1755.3. ABS model and manufacturer: APG3550500A, Zhejiang Asia-Pacific Electromechanical Co., Ltd. Optional cab and internal structure layout | ||
| [Technical parameters of chassis] | |||
| Chassis model | EQ1035SJ16QC. | Name of the chassis | Light cargo vehicle chassis (Class II) |
| Trademark name | Dongfeng brand | Manufacturing enterprise | Dongfeng Automobile Co., Ltd. |
| Dimensions (mm) | 5880×1710×2100 | .Number of tires | 6,4 |
| Approach angle/departure angle (°) | 20/21, 15/20, 26/18 | Tire specifications | 175R14LT 8PR, 185R15LT |
| The number of steel plate springs | 3/5.6/7.9/8+4.3/5+2 | Front wheelbase (mm) | 1369,1400,1434 |
| Types of fuel | Petrol | Rear wheelbase (mm) | .1214,1314,1242,1342,1355 |
| Emission standards | GB18352.6-2016 Country VI | ||
| Engine model | Engine manufacturers | Discharge (ml) | Power (Kw) |
| DAM16KLQ LJ4A15Q6. LJ4A16QG. |
Harbin Dong'an Automobile Power Co., Ltd. Liuzhou Wuling Liuji Power Co., Ltd. Liuzhou Wuling Liuji Power Co., Ltd. |
1597 1499 1590 |
90 83 91 |
