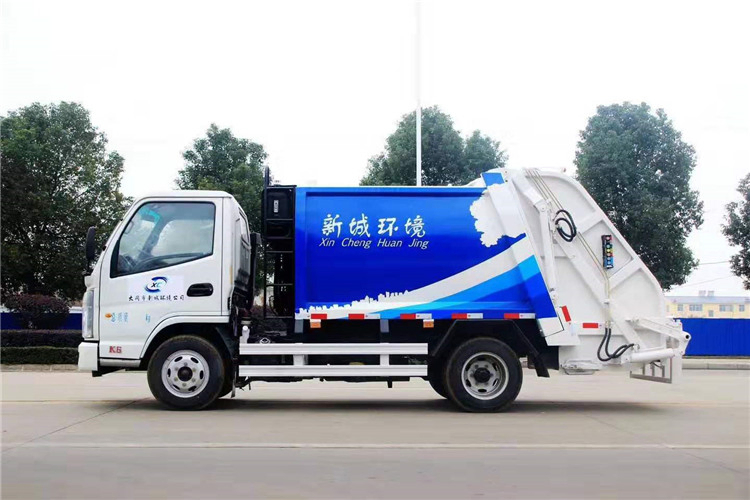

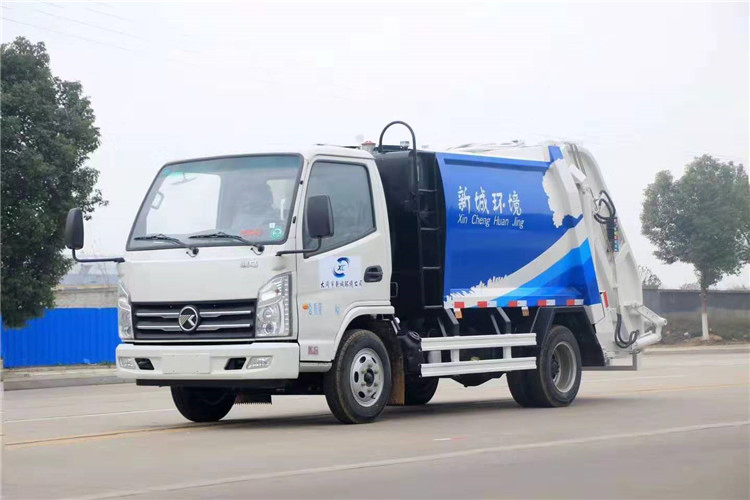

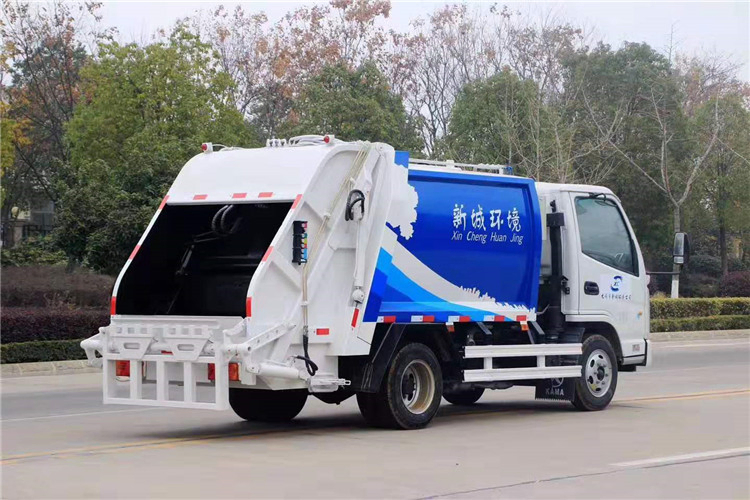

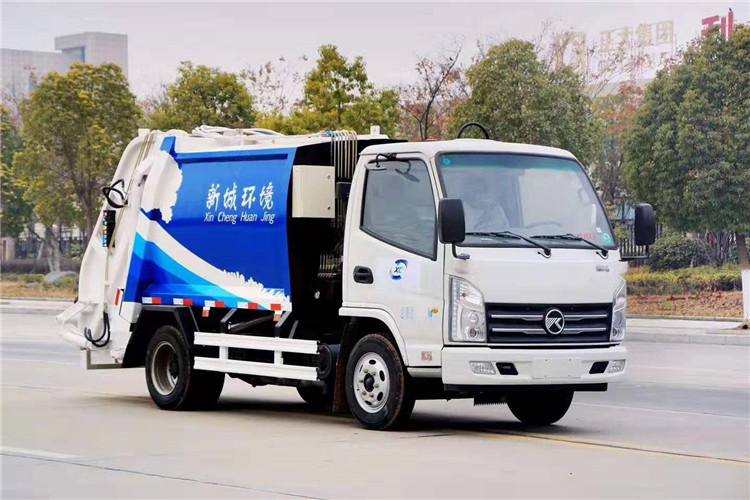

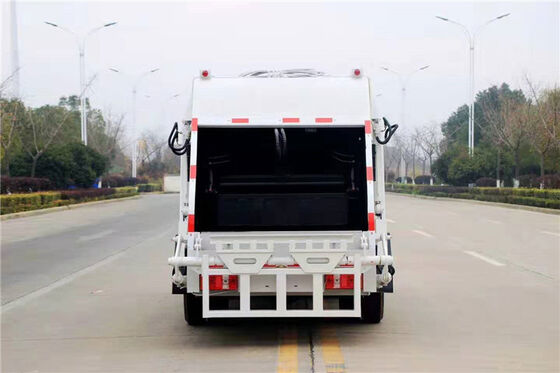

Dongfeng Domestic Garbage Removal Truck
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $20,000-35,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW | Type | Recycling |
|---|---|---|---|
| Volume | 6001-10000L | Emission Standard | Euro 4 |
| Transmission Type | Manual | Payload | 20T |
| Fuel | Diesel | Drive Wheel | 4×2 |
| Brand | FOTON | Models | Micro |
| Condition | New | Transport Package | Complete Vehicle |
| Specification | 5600× 2000× 2280 | Trademark | CLW |
| Origin | China | HS Code | 8501101000 |
| Production Capacity | 1000 |
Product Description
VictoryParameters of Malaysia 4-way blue-card compressed garbage tr
Model introduction:
The compressed garbage truck is composed of a sealed garbage box, a hydraulic system and an operating system. The whole vehicle is fully sealed. The sewage in the process of self-compression, self-dumping and compression all enters the sewage compartment, which completely solves the problem of garbage transportation.Secondary pollutionThe problem avoids inconvenience to people. The key parts are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety and so on. Optional configuration.A variety of back-hanging bucketsFlipping mechanism or garbage bucket flipping mechanism.
Main technical parameters:
Chassis configuration:
The new Isuzu 1580 white single-row reversible cab, Yunnai D20TCIF1 national six engine, 126 horsepower (93kw), 160MM beam, width on both sides of the beam 740MM, 6-speed gearbox,Big power takerWindow, 6.00R15 tires, oil brake, 24V double camel battery, 1043 rear axle, rotation, ABS, original air conditioner. Electronic instruments, seat belt prompts. Remote emission monitoring terminal.
Top-loading configuration table:
Product highlights:
Precautions:
Two.,Garbage should be evenly put into the filler. Do not concentrate on one side, so that the center of gravity of the vehicle is shifted, or at the mouth of the filler.
Put it too high along the garbage heap,Affect the pressure filling of garbageAnd the garbage is evenly distributed in the garbage can.
Three, Pressure filling homeworkYou should pay attention to observation. If you find large pieces of other garbage (non-household waste) that cannot be compressed, you should stop it in time.
StopWork, continue the work after cleaning, avoid damaging the working device of the vehicle, and it is strictly forbidden to compress construction waste..
Four.,When lifting and dropping the filler during the unloading operation, you should check the safety around you, operate carefully, and do not go on the slope.
Lift the loader, otherwise it is easy to shift the center of gravity back and cause a rollover accident.
5,The filler is not there.Fall and lockBefore, it is not allowed to enter the normal driving.
Our company makes the following commitments to the after-sales service of the vehicle:
Model introduction:
The compressed garbage truck is composed of a sealed garbage box, a hydraulic system and an operating system. The whole vehicle is fully sealed. The sewage in the process of self-compression, self-dumping and compression all enters the sewage compartment, which completely solves the problem of garbage transportation.Secondary pollutionThe problem avoids inconvenience to people. The key parts are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety and so on. Optional configuration.A variety of back-hanging bucketsFlipping mechanism or garbage bucket flipping mechanism.
Main technical parameters:
| [Technical parameters of the whole vehicle] | |||
| Product name | Compressed garbage truck | ||
| Total mass(Kg) | 4495 | Tank volume(M3) | |
| RatedLoad mass(Kg) | 500 | External size(Mm) | 5995,5600×2000×2280 |
| Quality of preparation(Kg) | 3865 | Driver's cabThe number of passengers(People) | 2 |
| Approach angle/Departure angle (°) | 13/19 | Front suspension/Rear suspension (mm) | .1,100 / 1,700 |
| Axis load(Kg) | 1620/2875. | The maximum speed(Km/h) | 100 |
| [Chassis technologyParameters] | |||
| Chassis model | KMC1040B260DP6. | Name of the chassis | Cargo vehicle chassis |
| Trademark name | VictoryHorse brand | Manufacturing enterprise | Shandong Kaima Automobile Manufacturing Co., Ltd. |
| Number of axes | 2 | Number of tires | 6 |
| Wheelbase (mm) | 2800,2600,3360 | ||
| Tire specifications | 6.00-15LT 10PR,6.00R15LT,185R15LT | ||
| The number of steel plate springs | 9/8+4,3/5+3,3/6+4 | Front wheelbase(Mm) | 1395,1420 |
| Types of fuel | Diesel oil | Rear wheelbase(Mm) | 1340,1390 |
| Emissions based on standards | GB17691-2018 Country VI | ||
| Engine model | Engine manufacturers | Discharge(Ml) | Power(Kw) |
| D20TCIF1. | .Kunming Yunnei Power Co., Ltd. | 1999 | 93 |
The new Isuzu 1580 white single-row reversible cab, Yunnai D20TCIF1 national six engine, 126 horsepower (93kw), 160MM beam, width on both sides of the beam 740MM, 6-speed gearbox,Big power takerWindow, 6.00R15 tires, oil brake, 24V double camel battery, 1043 rear axle, rotation, ABS, original air conditioner. Electronic instruments, seat belt prompts. Remote emission monitoring terminal.
Top-loading configuration table:
| .Order | Name | Specifications and models |
| 1 | Chassis name/model | Kaima series |
| 2 | Wheelbase (mm) | 2800 |
| Three | The volume of the box is m3 | 4.5 (Ensure that 75 barrels of standard 240L trash cans can be loaded) |
| 4 | Box thickness mm | Wugang Q345 low-alloy manganese steel (Edge four bottom.IV) The flipping mechanism scraper, arc bottom plate and slide adopt Q710 high-strength plate |
| 5 | Sewage tank | There is a sewage sink on the front of the large box, and one at the bottom of the filler.OneAss-style sewage tank |
| 6 | Box shape | Arc, the side plate is the whole plate for one-time molding, no welding |
| .7 | Hydraulic cylinder | Hypris |
| 8 | Oil pump | Changyuan |
| 9 | .Multi-way valve | Zhongmei, Yangzhou, Jiangsu Province |
| Ten | Hydraulic oil pipe | Bonway hydraulic oil pipe (high-density double-layer 24Mpa) |
| 11 | System rated pressure | 18 MPa |
| 12 | Compression ratio | ≥0.85 |
| 13 | Consolidation method | Two-way peristaltic compression |
| 14 | Control system | German Siemens PLC and German photoelectric sensors |
| 15 | Loading single cycle time | ≤24 s |
| 16 | Time to dump garbage | ≤35 s |
| 17 | Control method | Independent operation of the handsplet (Standard remote control) |
| 18 | Door boltPiece structure | Reinforced with cast steel parts |
| 19 | Shovel and skateboard slider | Highly wear-resistant nylon |
| 20 | The design of the whole vehicle | Use SW three-dimensional software to simulate |
| 21 | EmpressThe way to hang the bucket | Standard configuration: rear-turning barrel type (can be hung with national standard 240Plastic bucket orIron barrel or triangular bucket |
| 22 | Body color/text | Body color and textPainting can be pressedCustomization required by customers |
| 22 | Attachment | Profile light, side light, work light |
- Larger loading capacity: The loading capacity of boxes with the same volume is increased per side compared with the previous generation.5 percent (Multi-pack.7Bucket240 LDustbin).
- Easy to fault position: scraper skateboard under forceThe position is universalIt is easy to deform by force, resulting in unstable work. The new generation of products developed by our company has innovated in terms of materials and design, making the performance of the whole vehicle more stable and improving the service life.
- Working hours: The new generation of compressed garbage trucks produced by our company is inSlackThe loading time in the fast state is25.Within seconds, the loading time is the longest time used by the vehicle, so it is economical fuel, reduce costs, and improve work efficiency.
- Wear parts: The scraper is the vehicle with the greatest force, and the slide is the most worn. Our company's slide adopts high strength.Q710.For8mmAbove, the middle of the scraper is strengthened separately, which has greater bearing capacity and wear resistance, which greatly increases the service life.
- Oil pump: Oil pump is the main component of the compression vehicle. Our company's new generation oil pump is customized for oil pump factory, with stable performance and extremely low failure rate.
Precautions:
- When operating, irrelevant personnel should be avoided from approaching the vehicle, especially the rear of the vehicle.
Two.,Garbage should be evenly put into the filler. Do not concentrate on one side, so that the center of gravity of the vehicle is shifted, or at the mouth of the filler.
Put it too high along the garbage heap,Affect the pressure filling of garbageAnd the garbage is evenly distributed in the garbage can.
Three, Pressure filling homeworkYou should pay attention to observation. If you find large pieces of other garbage (non-household waste) that cannot be compressed, you should stop it in time.
StopWork, continue the work after cleaning, avoid damaging the working device of the vehicle, and it is strictly forbidden to compress construction waste..
Four.,When lifting and dropping the filler during the unloading operation, you should check the safety around you, operate carefully, and do not go on the slope.
Lift the loader, otherwise it is easy to shift the center of gravity back and cause a rollover accident.
5,The filler is not there.Fall and lockBefore, it is not allowed to enter the normal driving.
Our company makes the following commitments to the after-sales service of the vehicle:
| After-sales service commitment | ||
| 1 | Technical training program | The supplier is responsible for free training of equipment users at the user's location before handing over the car to the user for use, mainly from the driver's operation of the hydraulic system and special equipment to familiarize himself with the basic principles of the vehicle and the ability to deal with general faults. |
| 2 | .After-sales service method | The maintenance of the chassis part can be solved at the chassis manufacturer service station closest to the user's use. For the distribution location, technical strength and contact information, please refer to the chassis Maintenance Manual for details. For the maintenance of the special device part, you can use the contact information of telephone and fax. We will give a processing plan within 2 hours after receiving the user's call, and if necessary, we will send professional maintenance personnel to the place of use within 24-48 hours to solve the problem. |
| Three | Free maintenance plan | The "three-warrantee" period of the equipment provided by the supplier is one year or 30,000km. During the "three-warrantee" period, the free maintenance of the chassis part is carried out at the Dongfeng Automobile Technical Service Station where the user is located, and the free maintenance of the special device part is carried out by the supplier to send professional and technical personnel.In case of quality failure caused by illegal operation or improper use, accidents, man-made damage, etc., the supplier will provide timely maintenance services, and the maintenance cost shall be borne by the user. |
| 4 | Supply and price of accessories after the free maintenance period |
After the free maintenance period (after the "three-warrantee" period), if the equipment fails, the accessories need to be replaced. The chassis part can be carried out at the chassis manufacturer's service station, and the special device part is directly supplied by us. The price of accessories is supplied to the user at the cost price, and the maintenance period is lifetime. |
| 5 | Agree to do something | If you buy our company's special car, the "three-guarante" period will be implemented for one year or drive 30,000 km, lifelong maintenance, and after-sales service will be in place within 24-48 hours. |
| 6 | Service purpose and objectives | Fast, decisive, accurate, thoughtful and thorough; the service quality wins user satisfaction. |
