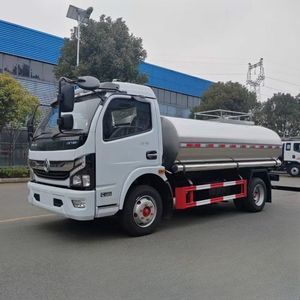

Dongfeng Jiefang Customizable Heavy Duty Milk Transport Trucks
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $18,000-58,800 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW5070XND5 | Transmission Type | Manual |
|---|---|---|---|
| Power | Diesel | Load Capacity | 1-50t |
| Emission Standard | Euro 4 | Tank Volume | 3000L-50000L |
| Drive Wheel | 4×2 | Seats | ≤5 |
| Horsepower | 80HP-200HP | Engine Capacity | ＞8L |
| Storage | Water | Tire Certification | ECE, GCC, ISO, DOT |
| Tire Design | Tubeless | Condition | New |
| Transport Package | Complete Vehicle | Specification | Whole Vehicle 304 Stainless Steel |
| Trademark | CLW | Origin | Hubei, China |
| Production Capacity | 1000 |
Product Description
Milk transporters, also known as fresh milk transporters, milk tankers, and liquid food transporters, are made of food-grade stainless steel plates. The outside of the tank needs to be insulated to prevent fresh milk from deteriorating. The inside of the tank needs to be smooth and clean, without acute angles. It is generally necessary to add a CIP (cleaning device) to each milk compartment.
Tableoftechnicalparametersoffreshmilktransporter
Cheng Li milk tank truck advantage characteristics
FAQ
Q1: Are you manufacturer or trading company?
A: We are direct manufacturer with more than 20years' experience.
Q2: What is the lead time?
A: Normally it will take 20-45 working days after getting down payment.
Q3: How should I pay for you if I place order to you?
A: We prefer T/T, 30%-50% as deposit, balance before shipment, L/C is also acceptable and negotiable.
Q4: If I do not like the color, could I change the color?
A: Yes, most of our trucks have standard colors, if all colors could not meet your needs; we could customize by your request.
Q5: Can you supply the spare parts of this truck?
A: Yes, We can supply the spare parts for all the trucks we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
Q6: Do you have oversea service?
A: When you have some problems which you cannot solve, we will arrange our engineers to your country to help you.
Q7: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Flexible Payment Terms for Different Trucks and Business Besides traditional payment terms such as TT, LC, we still offer our stable and long-term partners with various financial support and credit payment terms at different periods. Excellent and Outstanding After Sales Service Our professional technicians and mechanics and parts staff always concentrate all our products and our customers. Top Starting Point, High Quality and Worry-free Service is our promise to all our customers.
Tableoftechnicalparametersoffreshmilktransporter
| product model | CLW5070XND5 | overall dimensions of a car | 5990×2150×2520mm |
| nominal volume | 6300L | Tank size | 3820×1900×1350mm |
| Rated load quality | 5085kg | curb weight | 3820kg |
| Branch warehouse | Pass warehouse | Canister form | Car can one |
| Tank material | SUS304-2B food grade | The thickness of the inner bile | δ3.0 mm |
| Outsourcing thickness | δ1.0mm | The diameter of the outlet | 51mm GB / non-standard |
heat insulating material |
70 mm polyurethane spray + 10mm rubber-plastic thermal insulation cotton | heat-insulating property |
Using polyurethane spray foam, insulation performance 24 hours 2-3ºC |
Tank seal head |
capped end Thickness 3.0 |
Cleaning method |
CIP automatic cleaning, each warehouse is equipped with cleaning ball, meet the 360° cleaning requirements |
automobile chassis |
Sinotruk Haowo chassis, wheelbase 3280mm,WP2.3NQ130E61 Weichai 130 horsepower state six engine, Sinotruk 6-gear transmission, 7.50R16 steel wire tire, broken air brake, with ABS, air conditioning, electric glass; | ||
remarks |
1, the milk release switch and cleaning switch make the cluster structure, and mark the number of each milk warehouse, the vehicle spray transportation media and announcement volume on the container according to the announcement requirements; 2. Tank volume is 6,300 L; 3. The rear operation box is opened with air spring hatchback, and install the open handle; 4. Each manhole cover and rear toolbox are equipped with lead seal device to facilitate the management of milk truck when loading and unloading fresh milk; 5. Install a movable ladder for personnel in and out of the tank; 6. Tongcang [customizable], 1500mm food grade tank mouth; 7,2 automatic cleaning balls, controlled by 1 valve, valve interface 51mm. |
||
| Vehicle design | Can integrated design, in line with the requirements of the country and dairy enterprises, safer, more assured; |
| Welding advantage | Argon arc welding welding process is completed, welding is more smooth, welding without splash, conducive to cleaning; |
| Strengthen ring design | The use of the ring design process, increase the carrying capacity and service life of the tank; |
| Direct-through walkway | The platform corridor adopts straight-through walkway, adopts embedding and riveting technology, walking is safer; |
| Thermal insulation process | Polyurethane overall foam of 80-120mm, 24 hours temperature change of 1-2ºC; |
| cellular rubber | 10mm rubber sponge, further increase the insulation effect, improve the flame retardant of the tank; |
| Grinding process | Through the thousand wheel 3 times to polish the tank internal weld, the tank internal smooth without sharp Angle; |
| access door | Mechanical food grade stainless steel manhole cover, manhole cover with breathing valve, adjust the positive and negative pressure; |
| Sub-beam design | The use of high and low auxiliary beam design can reduce the residual rate of tank unloading; |
| Sub-warehouse design | The tank warehouse can be processed according to the size of the customer requirements; |
| Up the shape of the warehouse board | The warehouse board uses the rising warehouse board design to improve the strength and reduce the liquid impact strength; |
| Outsourcing design | Stainless steel plate lap process, no welding, the appearance of stainless steel color more durable; |
| Removal cleaning pipe | Milk unloading and cleaning pipes are buried in the tank to avoid freezing on the pipe and damage due to external forces; |
| CIP wash | Use a CIP automatic cleaning ball within 2 meters to ensure that the tank is clean; |
| discharge gate | Discharge valve food grade stainless steel, combined according to customer requirements, national standard / non-standard joint; |
| Lead sealing device | Tmouth and discharge valve welding lead sealing device to facilitate the unified transportation management of milk enterprises; |
| Cheng Li -- achievement the power of the world! | |
