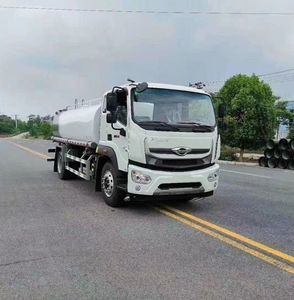

Foton 15t Sprinkler 4X2 Drinking Water Transport Vehicle Emergency Rescue Water


                                              Main Technical Specifications:
  Our factory produces a series of green and environmental sanitation spraying vehicles, which have multiple functions of green and environmental sanitation. They are mainly used for road surface washing in large, medium and small cities, tree, green belt, lawn greening, road and mining enterprise construction, and high-altitude building washing. It has functions such as watering, dust suppression, high and low level spraying, pesticide spraying, guardrail flushing, as well as water transportation, drainage, and emergency firefighting. Our factory has fully passed the ISO9001-2000 international quality system certification, and our products have also passed the 3C certification. We are a well-known brand in Hubei Province and one of the top 500 private enterprises in China. The after-sales service has 5A level certification. Special performance for sprinkler trucks, with front flushing (spraying) and rear spraying, equipped with side spraying, equipped with a rear work platform, and a green sprinkler high-pressure gun installed on the platform (adjustable spray shape: straight, heavy rain, moderate rain, drizzle, can be continuously adjusted, with a maximum range of up to 30 meters), equipped with a high-power dedicated sprinkler pump, with fire joint, self flow valve, self-priming function, and filter screen. Suction distance ≥ 6 meters, sprinkler width ≥ 16 meters, range ≥ 30 meters. Material: The tank body is made of Q235, with a partition thickness of 3mm, a carbon steel thickness of 4mm, and a head thickness of 5mm. The large-diameter straight through ball valve, aluminum alloy tee, and thickened main pipeline (76) are cast aluminum tube fittings: aluminum alloy elbow tee, aluminum alloy flange tee, aluminum alloy pump outlet tee, aluminum alloy pump inlet straight through. The mold is formed by one-time die-casting, without welds, to avoid water leakage. The standardized design, good interchangeability, and easy maintenance and replacement make the aluminum alloy material lighter, more beautiful and practical, and improve the product grade. Other accessories: aluminum alloy rear sprinkler, stainless steel ball valve, S-shaped new high-pressure water cannon, punching plate platform: thickened punching plate, better anti slip performance, no water accumulation on the platform, optimized structure, stamped.
Air spray: QF-30 type, supporting power: Zhejiang Lvtian 8KW air-cooled diesel generator set, fan power: 2.2KW, three cylinder plug pump, pump power: 1.5KW, working pressure: 1.0-3.5MPA, spray flow: 20L/min, pitching angle: -5-60 degrees (remote control), fog spectrum range: 50-150um, horizontal range (calm wind state): 30M, 16 stainless steel nozzles, 360 degrees rotation (manual or remote control). The size of the fan base (reference) is 1050 * 550 * 1700mm, and the size of the generator (reference) is 800 * 600 * 650mm. The actual size is subject to the actual product. (Fog cannon is an optional configuration)
