25 ton Water Foam Tank Fire Truck

Certification	ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Minimum Order Quantity	1 Piece
Price	US $38,880-128,880

Product Details

Model NO.	CLW	Fuel	Diesel
Emission Standard	Euro 4	Condition	New
Transport Package	Complete Vehicle	Specification	30T
Trademark	CLW	Origin	China
HS Code	6802101000	Production Capacity	1000

Leave a Message

Product Description

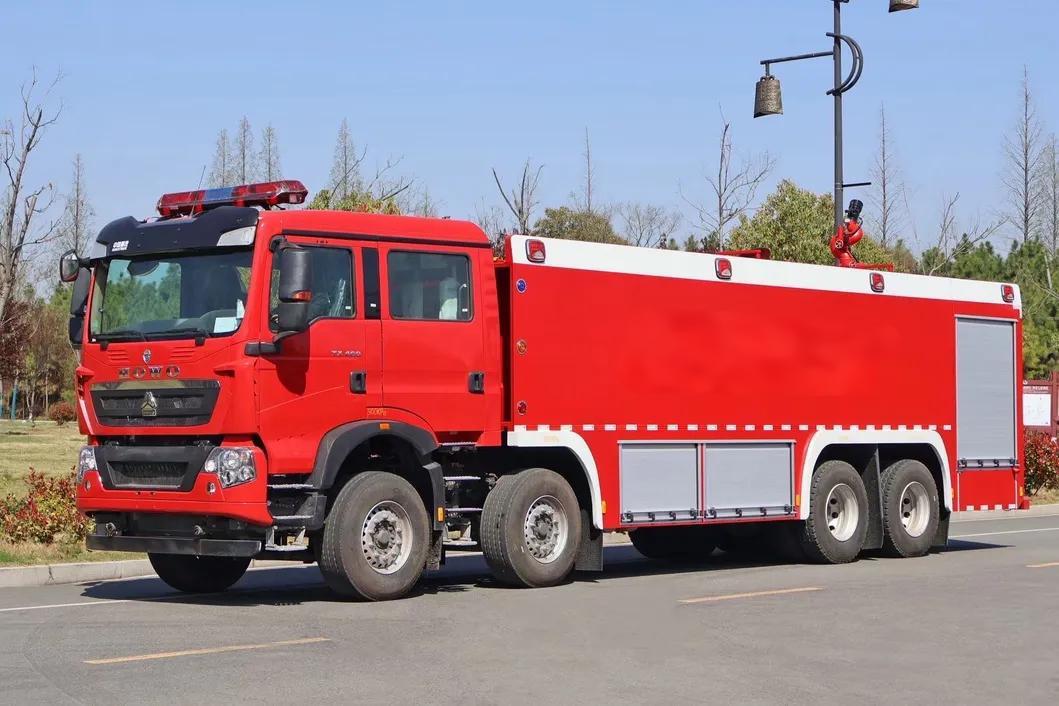

Sinotruk Howowo 25 ton foam fire truck

(Vehicle model: CLW5420GXFPM250 / HW Foam fire truck)
(Chassis model: ZZ5447TXFV466MF5)
Technical Specification

First, the bottom tray

mould Sinotruk Jinan Truck Co., Ltd. / ZZ5447TXFV466MF5
Engine: China Heavy Duty Vehicle Group Co., Ltd. Model: MC11.46-61
Power: 338kW
Drive type: rear-wheel drive
axle Distance: 1950 + 4600 + 1400mm
Emission standard: GB3847-2005, GB17691-2018 country 6

2. pilothouse

bear Structure: flat head, original double row seat four door passenger room. Seat setting: 2 people in front and 4 people in back.
Install a guardrail and handrail in front of the seat. On the way to the fire fighting and rescue, the firefighters quickly carried the air breathing apparatus. After arriving at the fire site, they quickly entered the fire fighting and rescue operations.
Cab structure: Install a suitable hydraulic tipping mechanism.
Equipment in the cab: except for the original vehicle equipment, install the force device control switch, 100W alarm, alarm light switch, etc.
Outside the cab: a long row alarm light is installed on the front of the top of the cab.

Three, let jar

hold Quantity: water: 20,900 Kg Foam: 3,824 kg
timber Quality: water tank: high-quality steel plate, through high-tech anti-corrosion treatment
Foam tank: 304 stainless steel plate, with high-tech anticorrosion treatment
bear Structure: frame welding, vertical and horizontal anti-swing plate in the tank to reduce the impact of the water on the tank; the front and rear walls of the tank are broken with trapezoidal bars, so that the tank has sufficient strength and stiffness.
The roof of the tank is equipped with a fast open manhole to facilitate the access of maintenance personnel. The tank is equipped with a device and a filter screen to prevent the pump from absorbing water and forming a vortex, thus affecting the flow rate.
The tank is equipped with a stainless steel floating ball level indicator, which can show the capacity of the fire extinguishing agent in the tank through the level table on the instrument panel; the sewage outlet with ball valve at the bottom of the tank has two 76mm overflow pipes and two 76mm injection ports on each side of the car to facilitate water supply and liquid for other vehicles.
set up Preparation: 2 population holes, with quick locking and opening device.
2 liquid level indicators.
2 sewage outlets, with stainless steel ball valve.
4 water injection outlets (left and right)
Process: conduct firm and reliable welding, remove defects such as slag clamp and deficiency welding; conduct 24-hour hydrostatic test after welding to ensure no leakage.

4. Fire pump and piping system

Fire pump: CB 20.10/40.80 medium and low pressure fire pump (Shanghai Rongshen) flow Quantity: 40 / 80L / s
press Force: 1.7MPa (2.0MPa-1.0MPa)
Installation type: rear vacuum pump: piston type;
Vacuum pump material: wear resistance, corrosion resistance to meet the sealing requirements;
Water diversion time is 80s, and the suction depth is 7m. Maximum vacuum degree: 85 kPa;
pipe system

Water suction line: the pump is equipped with Φ 150mm water inlet, which can absorb water from natural water source, liquid tank, fire reservoir, and can be added to connect the fire hydrant water supply, water suction pipe is placed on the roof.1 water inlet with Φ150mm butterfly valve for connection to the water tank.
Water outlet road:
The roof is equipped with a Φ100mm water outlet fire gun pipeline and control valve, using a flexible joint;
1 Φ80mm and 1 Φ65mm manual ball valve controlled outlet are provided on the left and right sides of the pump room. Water injection pipeline: 1 Φ65mm pump water injection pipeline and control valve into the tank;
There is 1 Φ 80mm water injection port on the left and right sides of the front of the car, and 2 Φ 80mm water injection ports on the left and right sides of the car, which can be injected into the tank. The interface is internal buckle interface, with Φ 80mm to Φ 65mm and conversion joint.
Waste water pipe: in order to protect the water pump and each ball valve, the waste water pipe is installed in the pipeline, and respectively
Equipped with ball valve.
Cooling water pipeline: in order to make the force collector cope with various complex situations, it is equipped with a cooling water pipeline and control valve connected with the inlet and outlet water pipe.

5. Remote control fire gun

mould No.: Type P LKD 8 / 80 fire gun (West) flow Quantity: 80 (1 / s)
shoot Cheng: The water is 70m Foam at 65m pressure Force: 1.0MPa
Position Set: on top of the water tank.
accuse System: using remote control control, convenient operation.

Six, force collector

mould Formula: full power sandwich force collector cooling mode: forced water cooling
Lubrication mode: splash-type oil lubrication
Operation mode: the force collector is operated at the instrument panel in the cab, which is convenient and smooth.peaceful Installation: the force collector matches well with the engine, it is accurately installed, and there is no self-shedding phenomenon after the combination.

Seven, pump room

Main material:
The skeleton and skin are high quality carbon steel; the interior panel is oxidized aluminum plate.fundamental structure:
1, for the overall structure, the front for the water tank, the back for the pump room.
2. The rear is the pump room, equipped with instrument panel and operating system, and the pump room is equipped with locked shutter door. Frame solds the structure and ensures its strength and stiffness.
3. The pump room is equipped with lighting lights to meet the lighting needs of fire fighting at night. Aluminum alloy rolling shutter door:
1, the pump room with lock rolling shutter door, handle and lock pin durable, no deformation, sealing performance after water shower experiment, to ensure that no leakage phenomenon.
25 ton Water Foam Tank Fire Truck 8
