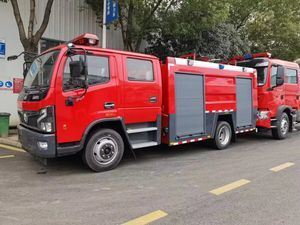

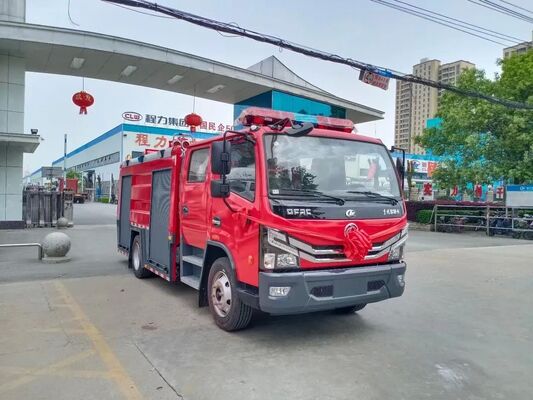

Dongfeng 6t Payload Water Tank Fire Truck with Manual Transmission and 6000L Water Capacity
| Certification | ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE |
|---|---|
| Minimum Order Quantity | 1 Piece |
| Price | US $23,000-98,880 |
Product Details
| Water Capacity | 6000 Kg | Fire Pump Flow | 30L/s |
|---|---|---|---|
| Fire Monitor Range | 45m | Overall Dimensions | 6860x2210x2880 Mm |
| Wheelbase | 3800 Mm | Engine Power | 121 KW |
| Highlight | 6t Dongfeng Fire Fighting Truck,4X2 Water Tank Fire Truck,4X2 Fire Fighting Truck |
||
Product Description
Dongfeng mostly rica 6 ton water tank fire truck
(Vehicle model: CLW5100GXFSG40 / DF water tank fire truck)
(Chassis model: EQ1125SJ8CDC)
Technical Specification
batholith
Model: Dongfeng Motor Co., Ltd. / EQ1125SJ8CDC
Engine: Yuchai 165 horsepower, cloud inside 170 horsepower
model: YCY30165-60D30TCIF1
Overall dimension (mm): length: 6860 width: 2210 height: 2880
Emission standard: GB3847-2005, GB17691-2018 countries
Power:: 121 kW
Drive type: rear-wheel drive
Wheelbase: 3,800 mm
pilothouse
Structure: double-row seat cab
Seat setting: 2 + 3 people
Inside the cab
Equipment: in addition to the original vehicle equipment, equipped with force collector control switch, 100W alarm, rotary alarm light switch, radio station power cable pile head;
Body body external charging device;
Can
Capacity: water: 6000 Kg
Material: water tank: high-quality carbon steel
Structure: Frame welding. Internal fortification swing plate
Equipment: 1 population hole, with quick locking and opening device.
1 liquid level indicator.
1 sewage outlet, with a stainless steel ball valve.
2 water injection ports (one for left and right)
Fire pump and piping system
Fire pump: CB10 / 30 atmospheric pressure fire pump
Flow rate: atmospheric pressure of 30L / s
Pressure: a normal pressure of 1.0
Installation type: rear position
pipe system
Water absorption line: the water pump is equipped with Φ100mm water inlet, which can absorb water from the natural water source or from the liquid tank.
Water outlet road:
- 1 water outlet on each side;
- There is an 89mm diameter water gun line through the top of the tank;
Waste water pipe: in order to protect the water pump and each ball valve, the waste water pipe is installed in the pipeline, and respectively equipped with ball valves.
Cooling water line: in order to make the force collector in the work to cope with various complex situations, the line is equipped with a cooling water line inlet and outlet line with stainless steel ball valve.
fire monitor
Model: Type PS30W fire gun
Flow rate: 30 (1 / s)
Range: 45m of water
Pressure: 1.0MPa
power takeoff
Type: full-power sandwich force collector
Cooling mode: forced water cooling type
Lubrication mode: splash-type oil lubrication
Equipment box and pump room
Material: the skeleton is high-quality steel, and the cover plate is aluminum alloy plate bonding structure
Structure: the equipment box separation with type steel structure, firm and reliable, improve the space utilization rate and variability.
Open the door: there are aluminum alloy rolling shutter doors on the left and right sides of the equipment box, light and reliable, low noise.
Equipment layout principle
- All the equipment is placed to ensure that the team members do not interfere when the battle starts;
- Place the equipment according to the frequency of use and the weight and shape of the equipment;
- Place the equipment according to the logical relationship between the combat arrangement and the equipment use;
- Place the equipment according to the human behavior science.
Electrical system
The front of the roof adopts long rows of alarm lights (located at the front top of the cab);
The roof is equipped with 24V, 60W lighting 1;
The upper sides of the vehicle are equipped with flashing lights; side sign lights are installed below;
The alarm power is 100W; the alarm, alarm and flash light circuits are independent additional circuits, and the control devices are installed in the cab.
IX. Overall technical requirements
1. The vehicle performance meets the provisions of GB7956 "Fire Engine Performance Requirements and Test Methods".
2, the appearance of the vehicle to maintain a certain flatness, and comply with the relevant regulations.
3, all riveting to maintain a certain density, in line with the provisions of the enterprise standard.
4. All the welding is firm, smooth and smooth, and it is in line with the provisions of the enterprise standard.
5. All operating switches, instruments, equipment racks and vehicles shall have nameplate signs conforming to the specification.
Ten, with the car documents
1) Chassis service instruction manual; 2) Chassis maintenance instruction manual
3) List of vehicle tools 4) chassis number rubbings
5) Fire engine operating manual
Equipment equipped with table
| class | order number | fire-extinguishing water tanker | quantity | unit | remarks |
| Equipment name | |||||
| Technical documents with the car | 1 | Instructions for the use of the fire engine | 1 | stem or root of plants | |
| 2 | Fire truck equipment configuration table | 1 | one | ||
| 3 | Operation Manual for vehicle chassis | 1 | stem or root of plants | ||
| 4 | Automobile chassis qualification certificate | 1 | one | ||
| 5 | Instructions for the use of the fire pump | 1 | stem or root of plants | ||
| 6 | Accessory accessories (tools) | 1 | cover | Accessories and tools of the original chassis | |
| Fire-extinguishing equipment | 1 | Fire suction pipe | 2 | root | 4000mm×2 |
| 2 | water-strainer | 1 | piece | ||
| 3 | water knockout drum | 1 | piece | ||
| 4 | Water collector | 1 | piece | ||
| 5 | 6,520m water belt | 4 | tray | ordinary pressure | |
| 6 | 8,020m water belt | 2 | tray | ordinary pressure | |
| 7 | Different diameter interface | 2 | piece | ||
| 8 | Heterotype interface | 1 | piece | ||
| 9 | Fire axe | 1 | piece | ||
| 10 | Water belt wrapped cloth | 4 | piece | ||
| 11 | The belt bridge | 1 | assistant | ||
| 12 | Water belt hook | 4 | piece | ||
| 13 | Ground fire hydrant wrench | 1 | piece | ||
| 14 | Underground fire hydrant wrench | 1 | piece | ||
| 15 | Water suction tube wrench | 2 | piece | ||
| 16 | fire branch | 2 | branch | One DC switch blooms for each one | |
| 17 | Fire bucket | 1 | individual | ||
| Break and tear down life saving tools | 1 | fire extinguisher | 1 | With | |
| 2 | spade | 1 | piece | ||
| 3 | Fire waist axe | 1 | piece | ||
| 4 | pick hammer | 1 | piece | ||
| 5 | Iron desperate | 1 | piece |
