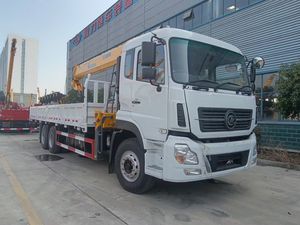

Dongfeng 6X4 20t Truck Mounted Crane with Quality Assurance
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $16,800-68,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW5250JSQ | Fuel | Diesel |
|---|---|---|---|
| Emission Standard | Euro 6 | Condition | Used, New |
| Maximum Lifting Height | 15-20m | Maximum Lifting Weight | 8-10t |
| Shaft Number | 2 | Crane Jib | Five-Arm |
| Type | Straight Arm | Transport Package | Complete Vehicle |
| Specification | 12000mm*2550mm*3950mm | Trademark | CLW |
| Origin | Suizhou | HS Code | 8704224000 |
| Production Capacity | 2000 |
Product Description
Chinese manufacturers offer SHACMAN/SITRAK/ONGFENG/ISUZU 4X2 6X4 8X4 multi tonnage straight arm or folding arm gantry cranes at affordable pricesThe most favorable Chengli 20t truck mounted crane comes with direct sales from the manufacturer
| [Vehicle technical parameters] | |||
| Product trademark | Cheng Li card | ||
| product name | truck with loading crane | product model | CL5310JSQ6FD |
| gross mass (Kg) | 31000 | Tank volume (m3) | |
| Rated load mass (Kg) | outline dimension (mm) | 12000×2550×3950 | |
| curb weight (Kg) | 20300 | Goods Chamber Size (mm) | 8500×2480×800 |
| Rated passenger capacity (person) | Quasi-trailer total mass (Kg) | ||
| Number of passengers (person) | 3 | Maximum saddle load mass (Kg) | |
| axle weight (Kg) | 6500 / 6500 / 18000 (2-axis group) | Top vehicle speed (Km/h) | 90 |
| remarks | |||
| [Chassis technical parameters] | |||
| Chassis model | CL1310LDJ6 | Chassis name | truck chassis |
| brand name | Cheng Li card | manufacturing enterprise | Cheng Li Automobile Group Co., LTD |
| number of axles | 4 | Number of tires | 12 |
| wheel base (mm) | |||
| tyre size | 12.00R20 16PR | ||
| Number of steel plate spring sheets | front gauge (mm) | ||
| Fuel types | diesel oil | rear track (mm) | |
| Emission basis standard | The GB17691-2018 countries | ||
SHACMAN 4X2 6.3t Truck mounted crane
ISUZU GIGA 6.3t on-board crane6X4 Isuzu 12T straight arm crane truckThe on-board crane can be equipped with a hydraulic rotary drilling rig and hydraulic grab bucketISUZU-G type 8-ton -5-section arm (wheelbase 5100mm)(National VI 205HP horsepower)
4X2 single bridge
Model: XCL5166JSQL6
Engine: YCS04200-68
Wheelbase: 5100
Transmission: SC8JS85E-C original power take-off
Front and rear axles: 5T/10T
Frame: 280mm straight frame
Tire: 10.00R20 steel wire tire
Number of leaf springs: 9/11+8
Number of passengers allowed: 3 people
Container size: 6100 * 2400 * 550
Vehicle dimensions: 9000 * 2550 * 3750
10t on-board crane with operating cab
