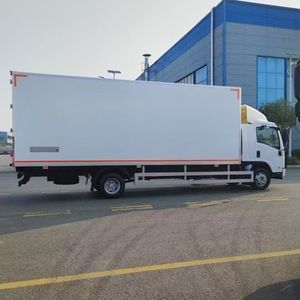

Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery

Place of Origin CHINA
Certification ISO9001
Minimum Order Quantity 1
Price US $19,999-128,880
Packaging Details Nuked
Delivery Time 15 working days
Payment Terms T/T,LC,
Supply Ability 150 sets/month
Product Details
Model NO. CLW Payload 25t
Emission Standard Euro 4 Transmission Type Manual
Horsepower <150hp Fuel Diesel
Bearing Capacity Micro Car Type Bread Type
Condition New Transport Package Complete Vehicle
Specification 25T Trademark ISUZU
Origin China HS Code 9001100001
Production Capacity 1000
Leave a Message
Product Description
Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 0Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 1Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 2Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 3Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 4Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 5Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 6Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 7Cheng Liwei brand CLW5117XLCQ6 type refrigerated car

[Vehicle technical parameters]
Product trademark Cheng Liwei card Announcement batch 374 (Extended)
product name chill car product model CLW5117XLCQ6
gross mass (Kg) 10550 Tank volume (m3)
Rated load mass (Kg) 4550 outline dimension (mm) 8970×2260×3410,3210
curb weight (Kg) 5805 Goods Chamber Size (mm) 6860×2100×2000
Rated passenger capacity (person)   Quasi-trailer total mass (Kg)
Number of passengers (person) 3 Maximum saddle load mass (Kg)
Approach angle / departure angle of (°) 17/10 Front suspension / rear suspension (mm) 1110/2660
axle weight (Kg) 3500/7050 Top vehicle speed (Km/h) 110
remarks The top of the car is closed and does not open. Protective material: Q235A carbon steel, connection mode: the left and right sides are connected with the bottom of the box, the rear protection is connected with the frame with bolts, the rear protection section size (mm): 14050, the rear protection height (mm): 460. Selected side door, with the optional height of the chassis auxiliary beam 3410 (mm) and 3210 (mm). With chassis optional cab; ABS and controller model: APG3550500H1, manufacturer: Zhejiang Pacific Electromechanical Co., LTD.; engine 4HK1-TCG 61, fuel consumption is 17.8L/100km, engine 4HK1-TCG 60, fuel consumption is 17.8L/100km. optional power is similar to other types of refrigeration units.
[Chassis technical parameters]
Chassis model QL1110ANPAY Chassis name truck chassis
brand name Isuzu card manufacturing enterprise  Automobile Co., Ltd
number of axles 2 Number of tires 6
wheel base (mm) 5200
tyre size 235/75R17.5 16PR,8.25R20 14PR
Number of steel plate spring sheets 8/10+6 front gauge (mm) 1680
Fuel types diesel oil rear track (mm) 1650
Emission basis standard The GB17691-2018 countries
engine type Engine production enterprise displacement (ml) power (Kw)
4HK1-TCG61
4HK1-TCG60
Isuzu (China) Engine Co., Ltd
Isuzu (China) Engine Co., Ltd
5193
5193
139
151
Preface Dear Customer:
      Hello! Thank you for your trust in our company Xinghui Refrigeration. We will provide you with excellent refrigerated truck products and high-quality services. Now we present the relevant technical parameters and prices of the models your company needs and the relevant introduction of our company to you, and attach the mailing address. If you have any questions, please call or write us. Looking forward to our cooperation! ! ! Introduction to Refrigerated Trucks Refrigerated trucks are composed of the running part of a special automobile chassis, an insulated compartment (generally made of polyurethane materials, fiberglass, color steel plates, stainless steel, etc.), a refrigeration unit, a temperature recorder in the compartment and other components. For vehicles with special requirements, such as meat hook trucks, meat hooks, cargo troughs, aluminum alloy guide rails, ventilation slots and other optional upper configurations can be
    Upper configuration: 1. The refrigerated truck box body adopts the international general sandwich technology + our factory's patented wood technology (the keel connection is inlaid with environmentally friendly waterproof wood for heat preservation and corrosion resistance), broken bridge insulation technology, one-piece box body, and optional domestic Xinghui refrigeration unit. 2. The box board is made of galvanized pipe frame and environmentally friendly waterproof wood board, thickened 3.0 fiberglass, high-strength adhesive, hot pressing, the outer frame is made of 304 stainless steel, thickened aluminum profile edging, 27 stainless steel door lock, accessories, the box body is spliced without glue and no gaps, the cooling speed is fast, the heat dissipation is slow, and the insulation effect is good. The door has a bevel and a single side door. The sub-beam is folded at one time with 510 beam steel and locked with a pressure plate. The side guard net and rear bumper are formed at one time. 3. The production line of the refrigerated truck factory is the most advanced 18-meter large composite board production line in the world. The machine automatically cleans the platen table before production to ensure that the platen machine is pressed and formed in one time. Its production equipment and technology are ahead of the industry standards. The box has a beautiful appearance, light overall quality, high strength, no leakage, and the box is sturdy and durable with high insulation effect. The insulation effect reaches the national A level, and can keep warm for 8-12 hours when the refrigeration machine is not working. Refrigeration unit: Xing hui refrigeration unit


Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 8Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 9Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 10Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 11Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 12Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 13Reliable Refrigerated Trucks for Fresh Produce and Goods Delivery 141:What payment methods do you support? - We support T/T and LC and other ways you need.
2:What is your minimum order quantity? - One unit.
3. How about the delivery time? - Generally it will takes 10 to 30 days after receiving your deposit. The sactual date will be depended on your order and item. We will contact you if we confirm the delivery date. And we will track the goods all the time until the goods reach to the destination.
4.How can I confirm whether your products will meet my needs? -You can tell us your needs such as size, material, volume, height and other information, our professional sales will provide solutions.
5. How do you pack the products? - Standard shipping packaging.
 6. How about the price? - To provide the top quality product with competitive price is our mission all the time. We want a long-term business relatonship with our customers rather than cooperate for once.
7. How can I trust you? - We have 15 years of experience in the trailer manufacturing field; and we have our own factory. - We have supplied for many famous company at home and abroad; - We want to provide great service for you rather than just provide a price and product for you; - To meet you is the first step, then we would like to make friends and maintain the business relationship with you all the time.
