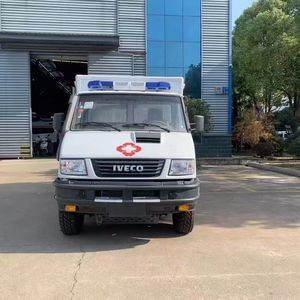

4X4 off-Road Ambulance 4WD Emergency Medical Vehicle for Sale
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $47,000-86,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW | Type | Ambulance |
|---|---|---|---|
| Transmission Type | Manual | Fuel | Gasoline |
| Emission Standard | Euro 4 | Length | 3-8m |
| Medical Equipment | With Medical Equipment | Horsepower | 160-210hp |
| Axle | Single | Condition | New |
| Transport Package | Bulk Ship, RO-RO, Container | Specification | 5900X2100X2700 |
| Trademark | CLW | Origin | Suizhou China |
| Production Capacity | 500 Unit/Month |
Product Description
4X4 China Powerful Armored Ambulance off Road Ambulance From Factory Good Price
| Basic parameters | |||
| A | Engine | SOFIM8140.43S6 | |
| Engine power | 95KW/129HP | ||
| Fuel type | Diesel | ||
| Displacement (ml) | 2798 | ||
| Emission standard | EU VI | ||
| Drive method | 4*4 Left hand drive | ||
| Curb weight(kg) | 3400 | ||
| Total load mass (kg) | 3855 | ||
| Wheelbase (mm) | 3430 | ||
| Dimension (mm) | 5916×2100×2700 | ||
| Wheelbase (mm) | 3310 | ||
| Front/rear suspension(mm) | 993/1597 | ||
| Max torque (Nm/rpm) | 300/1600-2800 | ||
| Suspension system | Agile suspension control system | ||
| Front/rear axle capacity(kg) | 1655/2200 | ||
| Transmission machine | 5-speed forwarder | ||
| Max speed (km/h) | 90 | ||
| Fuel tank size (L) | 70 | ||
| Seat amount | 6-7 | ||
| Min. Ground clearance | 260mm | ||
| Crossing trench width(mm) | ≥650 | ||
| Overcome vertical obstacle height(mm) | ≥280 | ||
| Wading depth(mm) | ≥750 | ||
| Tyre size | 255/85R16LT 10PR | ||
| Vehicle Appearance | |||
| B |
1.
|
The body is white, with body color strips and rescue signs attached, and the colors are bright and eye-catching. | |
|
2.
|
Dark solar film is applied to the window glass of the shelter to effectively protect patient privacy | ||
|
3.
|
1 set of alarm assembly: long row of warning lights on the front of the vehicle (100W speaker), handheld alarm. | ||
|
4.
|
LED sign lights (flash) 1 set: 8 LED (blue), 2 LED (white), a total of 10 lights. | ||
|
5.
|
One exterior light each for the rear court and side door. | ||
| Ambulance system | |||
| C |
1.
|
Automatic stretcher: The frame is made of high-quality aluminum alloy material. It is light, strong and easy to operate. Through operation, the stretcher carrying the patient can be quickly and smoothly pushed into or pulled out of the ambulance. The backrest is supported by an adjustable structure. It is adjustable and equipped with a patient binding safety belt to facilitate the fixation between the patient and the stretcher. | |
|
2.
|
Stretcher baffles and gaskets: Made of high-quality stainless steel to assist in loading and unloading the stretcher. | ||
|
3.
|
Infusion bottle holders: Install 2 folding infusion bottle holders (slide rail type) on the top of the cabin. | ||
| Oxygen supply system | |||
| Special vehicle oxygen supply system assembly, equipped with two 10L steel oxygen bottles, hidden oxygen pipelines, two oxygen terminals, oxygen inhaler and pressure regulating valve | |||
| Medical power supply system | |||
| D | 1. | 1000W sine wave inverter. | |
| 2. | Power control: 1 set of ship-shaped piano-style control panel. | ||
| 3. | 4 220V sockets. | ||
|
4.
|
1 shelter battery | ||
|
5.
|
One set of recessed lighting (4 LEDs) and 2 recessed infusion spotlights are installed on the inner ceiling. | ||
|
6.
|
Intercom systems are installed in the shelter and cab. | ||
| Disinfection system | |||
| Install a UV disinfection lamp on the upper part of the middle partition | |||
| Shelter air conditioning and heating system | |||
| 1 set of rear air conditioners and rear heaters that can be independently controlled. Cooling and heating can be controlled independently to reasonably regulate the temperature in the cabin. | |||
| Cabinet interior configuration | |||
| E | 1. | Install a set of long equipment cabinets made of new environmentally friendly materials, with a sliding window storage space on the cabinet; | |
| 2. | Install a set of oxygen bottle cabinets made of new environmentally friendly materials, which can accommodate 2PCS 10L oxygen bottles; | ||
| 3. | Install a set of wall cabinets made of new environmentally friendly materials. The wall cabinet doors adopt a sliding window structure and have integrated storage functions. Install a set of three-layer equipment racks in front of the left locker. | ||
| 4. | Cabin interior: made of flame-retardant composite materials, waterproof, mildew-proof, antibacterial, and easy to clean. | ||
| 5. | Floor: Made of an integrated new lightweight material, the medical floor is acid-base, anti-corrosion, wear-resistant, anti-static, and easy to clean. It has raised edges on all sides to prevent dust accumulation and anti-skid, and is easy to wash with water. | ||
| Others | |||
| F | 1. | Seats: 1 set of seats: cabinet-type seat for two on the right, PVC cabinet-type bed, the seat cushion and backrest surface are covered with leather, 1 independent seat in the front, 2 sets of storage cabinets in the front of the cabin, and a small bench in the middle . | |
| 2. | 1 fire extinguisher (1KG) | ||
| 3. | 1 5L stainless steel waste bucket | ||
| 4. | 1 pair of top safety handrails | ||
Company Profile of Chengli Special Purpose Vehicle Co., Ltd.Chengli Special Purpose Vehicle Co., Ltd. is a core enterprise under Hubei Chengli Group. It is a large-scale automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of the People's Republic of China to produce all kinds of special vehicles. The company is located in Suizhou City, Hubei Province. It has production and manufacturing bases in the southern suburbs of Zengdu District, Suizhou City.
The company has a total asset of 2 billion yuan, covering an area of more than 1,000 mu and more than 8,000 employees, including more than 500 technical personnel, more than 2,000 technical workers, and an annual production capacity of 100,000 special vehicles (cars). The company has signed industry-university-research cooperation agreements with Huazhong University of Science and Technology, Wuhan University of Technology, Wuhan University of Science and Technology and other colleges and universities to export more than 500 automotive talents of all kinds to the society every year through professional vocational and technical training. It is a veritable incubation and promotion enterprise in the field of domestic automobiles.
As a large automobile manufacturing group with "China's well-known trademarks", "Hubei famous brands", "national high-tech enterprises" and "China's top 500 private enterprises", it undertakes the major mission of promoting the development of China's special vehicles. Chengli Special Vehicles under Chengli Group occupy an important share in the domestic and international markets. The leading products are: all kinds of sprinklers, garbage trucks, suction trucks, sweepers, oil tankers, chemical trucks, obstacle removal trucks, high-altitude work vehicles, fire trucks, on-board cranes, refrigeration trucks, vans, pressure vessels, road maintenance vehicles, flatbed transporters, bulk grain trucks, dry mixed mortar trucks, beekeepers, stage trucks, publicity vehicles, mobile vending trucks, heavy cranes, cement pump trucks, pharmaceutical transport trucks, food transport trucks and other series. It is a special automobile company with the largest variety of products, the most complete production qualifications, first-class production equipment and the most complete testing methods in the same industry in China.
