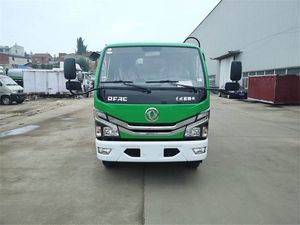

Heavy-Duty Rear-Loading Compressed Garbage Truck for Efficient Waste Management
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $45,000-65,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW5879TYDF5 | Type | Recycling |
|---|---|---|---|
| Volume | 10001-15000L | Emission Standard | Euro 4 |
| Transmission Type | Automatic | Fuel | Gasoline |
| Drive Wheel | 4×2 | Brand | Dongfeng |
| Models | Micro | Usage | Dump |
| Condition | New | Transport Package | Complete Vehicle |
| Specification | 15 Square | Trademark | CLW |
| Origin | China | HS Code | 2801100000 |
| Production Capacity | 1000 |
Product Description
Parametersofcompressed
Model introduction:
The compressed garbage truck consists of a sealed garbage bin, a hydraulic system, and an operating system. The whole vehicle is fully sealed. All the sewage in the process of self-compression, self-dumping and compression enters the sewage compartment, which completely solves the problem during the garbage transportation processSecondary pollutionThe problem avoids inconvenience to people. The key components are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety, etc. A variety of rear bucket flip mechanisms or garbage bin flip mechanisms are available.
Chassis configuration:
Dongfeng Dolika7THE FANG COMPRESSED GARBAGE CAR ADOPTS A SPECIAL chassis FOR DONGFENG D6 GUARD CAR, 3308MM wheelBASE,Yuchai 140Horsepower engine, Wanliyang 5-speed transmission, 7.00R16 steel wire tire, 192mm double beam, 1.8T/3.5T front and rear axle, air brake, original air conditioner (optional double row seats), national joint warranty.
Top configuration table:
Product highlights:
PrecaTIONS:
2., Garbage should be evenly placed in the packing hopper, not concentrated on one side to offset the center of gravity of the vehicle, or at the mouth of the packing bucket
Over-high storage along the garbage heap affects the even distribution of filled garbage and garbage in the garbage bin.
3, Attention should be paid to observation during the filling operation. If you find large pieces of other garbage (non-household garbage) that cannot be compressed, it must be stopped in time
Stop the operation and continue the operation after removal to avoid damaging the working devices of the vehicle, and strictly prohibit the compression of construction waste .
4., When lifting or dropping the filler during the unloading operation, make sure that the surrounding area is safe, operate carefully, and never on the slope.
Lift the filler, otherwise the center of gravity will move back and cause a rollover accident.
5,The filler is not allowed to enter normal operation before falling and locking.
Model introduction:
The compressed garbage truck consists of a sealed garbage bin, a hydraulic system, and an operating system. The whole vehicle is fully sealed. All the sewage in the process of self-compression, self-dumping and compression enters the sewage compartment, which completely solves the problem during the garbage transportation processSecondary pollutionThe problem avoids inconvenience to people. The key components are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety, etc. A variety of rear bucket flip mechanisms or garbage bin flip mechanisms are available.
Chassis configuration:
Dongfeng Dolika7THE FANG COMPRESSED GARBAGE CAR ADOPTS A SPECIAL chassis FOR DONGFENG D6 GUARD CAR, 3308MM wheelBASE,Yuchai 140Horsepower engine, Wanliyang 5-speed transmission, 7.00R16 steel wire tire, 192mm double beam, 1.8T/3.5T front and rear axle, air brake, original air conditioner (optional double row seats), national joint warranty.
Top configuration table:
| Order | Name | Specifications and models |
| 1 | Chassis name/model | Dongfeng D6 series |
| 2 | Wheelbase (mm) | 3308 |
| 3 | Box volume m3 | 6 |
| 4 | Box thickness mm | WISCO Q345 low-allow alloy manganese steel (side four bottom four) flip mechanism scraper, curved bottom plate, slide adopts Q710 high-strength plate |
| 5 | Sewage tank | A sewage tank on the front side of the large box and an integrated sewage tank at the bottom of the filler |
| 6 | Box shape. | Arc, the side plate is a one-time molding of the whole plate, no welding |
| 7 | Hydraulic cylinders | Hypris |
| 8 | Oil pump | Changyuan |
| 9 | Multi-way valve | Zhongmei, Yangzhou, Jiangsu |
| Ten | Hydraulic tubing | Bonway hydraulic tubing (high density double-layer 24Mpa) |
| 11 | System rated pressure | 18MPa |
| 12 | Compression ratio | ≥0.8 |
| 13 | Compaction method | Two-way creep compression |
| 14 | Control system | German Siemens PLC and German photoelectric sensors |
| 15 | Loading time for a single cycle | ≤24s |
| 16 | Time to shirking garbage | ≤35s |
| 17 | Control mode | Independent operation of the flashlight (standard remote control) |
| 18 | Key component structure | Reinforced with cast steel |
| 19 | Push shovel and skateboard slider | High wear-resistant nylon |
| 20 | Vehicle design. | Simulated with SW 3D software |
| 21 | Back hanging barrel method | Standard: back bucket type (can be hung with national standard 240 plastic bucket or iron bucket or triangle bucket) |
| 22 | Body color/text | Body color and text painting can be customized according to customer requirements |
| 22 | Attachment | Profile lights, side lights, and work lights |
- Larger loading capacity: boxes with the same volume are 5% more loaded per side compared to the previous generation (7 barrels of 240L trash cans).
- Fault-prone position: the force level of the scraper skateboardIt is prone to force deformation, resulting in job instability. The new generation of products developed by our company have been innovated in materials and design to make the performance of the whole vehicle more stable and improve its service life.
- Working hours: The new generation of compressed garbage trucks produced by our company has a loading time of less than 25 seconds at idle speed, and the loading time is the longest time used by the vehicle, so it is economical fuel, reduces costs, and improves work efficiency.
- Wear parts: The scraper is the most force on the vehicle, and the slide is the most worn. Our company's slide adopts high-strength Q710 for more than 8mm, and the separate split in the middle of the scraper is strengthened, which has greater bearing capacity, stronger wear resistance, and greatly increases service life.
- Oil pump: The oil pump is the main component of the compression vehicle. Our new generation of oil pumps are customized for oil pump factory, with stable performance and extremely low failure rate.
PrecaTIONS:
- During operation, unrelated personnel should avoid approaching the vehicle, especially the rear of the vehicle.
2., Garbage should be evenly placed in the packing hopper, not concentrated on one side to offset the center of gravity of the vehicle, or at the mouth of the packing bucket
Over-high storage along the garbage heap affects the even distribution of filled garbage and garbage in the garbage bin.
3, Attention should be paid to observation during the filling operation. If you find large pieces of other garbage (non-household garbage) that cannot be compressed, it must be stopped in time
Stop the operation and continue the operation after removal to avoid damaging the working devices of the vehicle, and strictly prohibit the compression of construction waste .
4., When lifting or dropping the filler during the unloading operation, make sure that the surrounding area is safe, operate carefully, and never on the slope.
Lift the filler, otherwise the center of gravity will move back and cause a rollover accident.
5,The filler is not allowed to enter normal operation before falling and locking.
