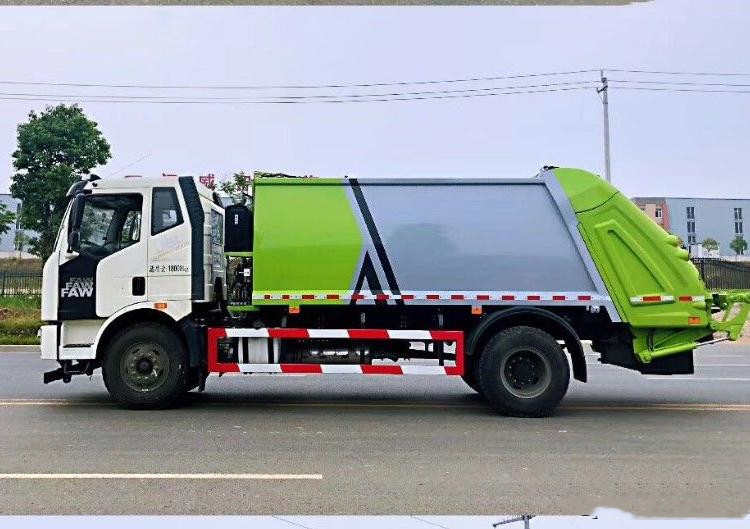

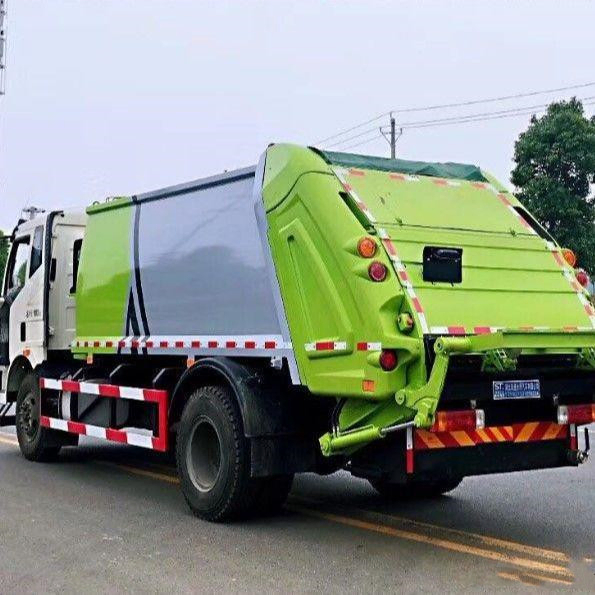

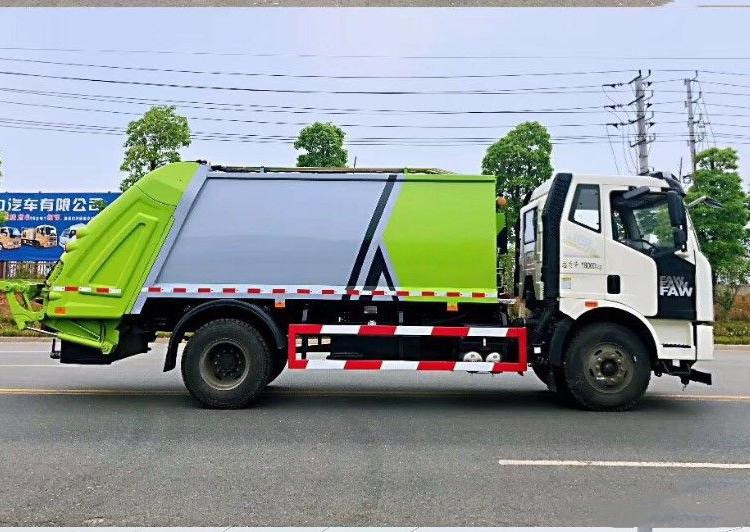

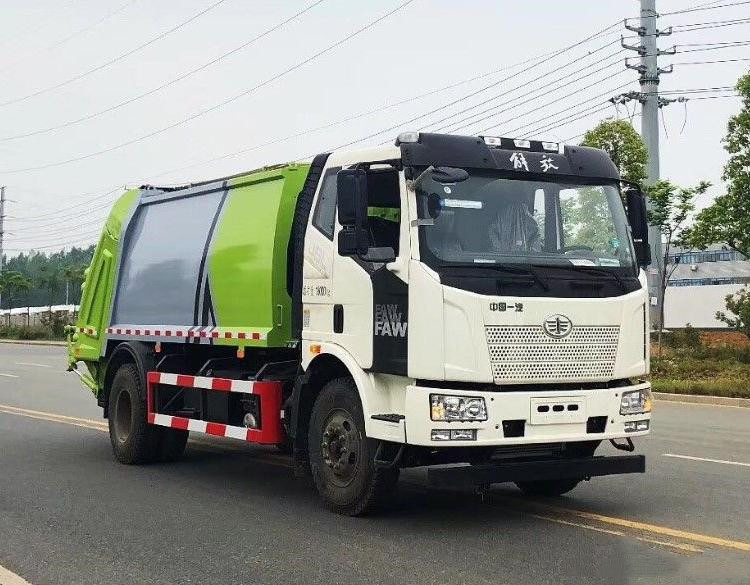

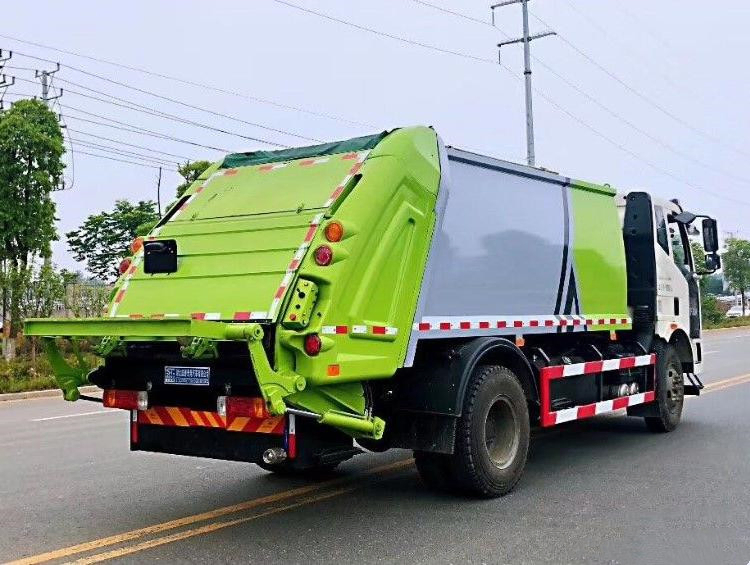

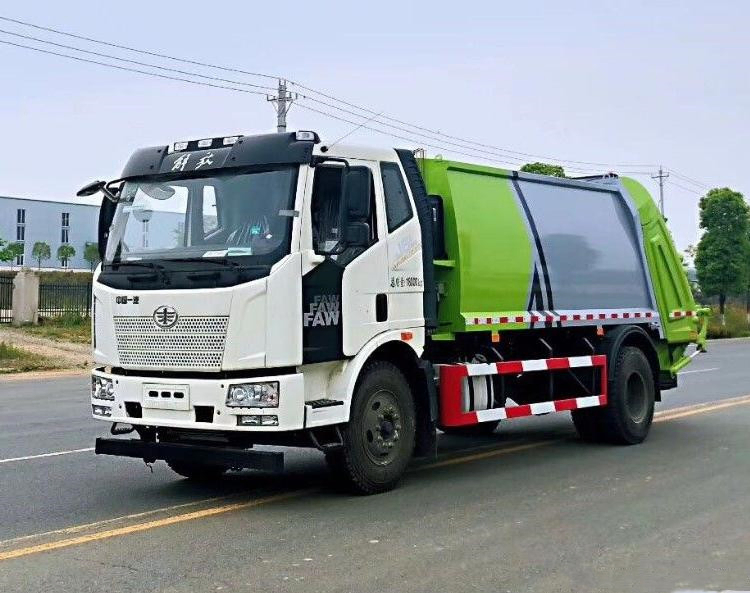

Heavy-Duty China Jiefang 6-18 Cubic Meter Waste Collection Truck
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $11,000 / Piece |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW589TYDF5 | Volume | 10001-15000L |
|---|---|---|---|
| Emission Standard | Euro 4 | Transmission Type | Manual |
| Payload | 20T | Fuel | Diesel |
| Drive Wheel | 4×2 | Brand | FOTON |
| Usage | Dump, Swing Arm Type, Sealed | Condition | New |
| Transport Package | Complete Vehicle | Specification | 9580× 2550× 3400mm |
| Trademark | CLW | Origin | China |
| HS Code | 6901000000 | Production Capacity | 1000 |
Product Description
LiberateParameters of compressed
Model introduction:
The compressed garbage truck is composed of a sealed garbage box, a hydraulic system and an operating system. The whole vehicle is fully sealed. The sewage in the process of self-compression, self-dumping and compression all enters the sewage compartment, which completely solves the problem of garbage transportation.Secondary pollutionThe problem avoids inconvenience to people. The key parts are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety and so on. It can be equipped with a variety of rear-hanging bucket flipping mechanism or garbage bucket flipping mechanism.
Chassis configuration:
Liberation 23The compressed garbage truck adopts Tianlong KL semi-standard top cab,Big wood 284Horsepower engine, wheelbase 4350+1350,Shaanxi teeth9-speed gearbox, front axle 5.5T, rear axle 10T single reduction, plate spring 3/10, frame 300×90×8+6, steel 350L fuel tank, 11.00R20 18PR steel wire tire, electric glass, central control-remote control, air conditioning, national joint warranty.
Top-loading configuration table:
Product highlights:
Precautions:
If the garbage heap is too high, it will affect the pressure filling of garbage and the uniform distribution of garbage in the garbage bin.
Three,.When pressing and filling, you should pay attention to observation. If you find large pieces of other garbage (non-household waste) that cannot be compressed, you should stop it in time.
Stop the operation, continue the operation after cleaning, avoid damaging the working device of the vehicle, and it is strictly forbidden to compress construction waste..
Four.,When lifting and dropping the filler during the unloading operation, you should check the safety around you, operate carefully, and do not go on the slope.
Lift the loader, otherwise it is easy to shift the center of gravity back and cause a rollover accident.
5,The filler must not enter normal driving before it falls and is locked.
Model introduction:
The compressed garbage truck is composed of a sealed garbage box, a hydraulic system and an operating system. The whole vehicle is fully sealed. The sewage in the process of self-compression, self-dumping and compression all enters the sewage compartment, which completely solves the problem of garbage transportation.Secondary pollutionThe problem avoids inconvenience to people. The key parts are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety and so on. It can be equipped with a variety of rear-hanging bucket flipping mechanism or garbage bucket flipping mechanism.
| [Main Technical Parameters] | |||
| Product name | Compressed garbage truck | Product number | FBR37846304. |
| Total mass (Kg) | 25,000 | Tank volume (m3) | |
| Rated Load Mass (Kg) | 10935,11000 | Dimensions (mm) | 10270×2550×3350 |
| .Prepared mass (Kg) | 13870 | Cargo compartment size (mm) | ×× |
| The number of passengers in the cab (persons) | 3,2 | Load mass utilization coefficient | |
| Approach angle/departure angle (°) | 9/20 | Front suspension/rear suspension (mm) | 1400/3170. |
| Number of axes | Three | Wheelbase (mm) | 4350+1350,4800+1350, |
| Shaft load (Kg) | 7000/18000 (two-axis group) | Maximum speed (Km/h) | 89 |
| Other | 1. The car only uses 4350+1350mm wheelbase chassis modification. 2. The special device is composed of hydraulic mechanism, filler, etc., which is mainly used for the transportation of urban sanitation garbage. 3. The left and right side protection materials are made of Q235B carbon steel, and the connection method is bolted. The rear protection is replaced by a special device, and the lower edge is 370mm high from the ground. Four. Engine model/. The fuel consumption value is (L/100km): CA6DK1-26E6/30.74, CA6DK1-28E6/30.74,CA6DK1-32E6/30.74.5 ABS System Manufacturer/Model: Changchun Ruilikemi Automotive Electronics Co., Ltd./CM4XL.6. Install a driving recorder with satellite positioning function. 7. Optional ETC device. Eight. Optional new rear reversal style, optional upper appearance style, optional hydraulic oil tank multi-way valve electronic control box position, optional new wheel cover appearance style. Optional rear flipping mechanism style and cylinder installation method. | ||
| [Technical parameters of chassis] | |||
| Chassis model | CA1250P62K1L3T1E6Z. | Name of the chassis | Flat-head diesel cargo vehicle chassis (Class II) |
| Trademark name | Liberation card | Manufacturing enterprise | .China First Automobile Group Co., Ltd. |
| Dimensions (mm) | 8530 x 2521 x 3010 | Number of tires | Ten |
| Approach angle/departure angle (°) | 22/20,22/10, 22/12, 22/29 | Tire specifications | 11.00R20,12R22. |
| The number of steel plate springs | .12/10, 3/10, 10/10 | Front wheelbase (mm) | 1928,1950 |
| Types of fuel | Diesel oil | Rear wheelbase (mm) | 1878/1878. |
| Emission standards | GB17691-2018 Country VI | ||
| Engine model | Engine manufacturers | Discharge (ml) | Power (Kw) |
| CA6DK1-28E6. | .China First Automobile Group Co., Ltd. | 7146 | 209 |
Liberation 23The compressed garbage truck adopts Tianlong KL semi-standard top cab,Big wood 284Horsepower engine, wheelbase 4350+1350,Shaanxi teeth9-speed gearbox, front axle 5.5T, rear axle 10T single reduction, plate spring 3/10, frame 300×90×8+6, steel 350L fuel tank, 11.00R20 18PR steel wire tire, electric glass, central control-remote control, air conditioning, national joint warranty.
Top-loading configuration table:
| Order | Name | Specifications and models |
| 1 | Chassis name/model | LiberateSeries |
| 2 | Wheelbase (mm) | 4,350 + 1,350 |
| Three | The volume of the box is m3 | 2Three |
| 4 | Box thickness mm | .Wugang Q345 low-alloy manganese steel (side five and bottom five) flipping mechanism scraper, arc bottom plate, slide adopts Q710 high-strength plate |
| 5 | Sewage tank | There is a sewage sink on the front of the large box, and an integrated sewage tank at the bottom of the filler. |
| 6 | Box shape | Arc, the side plate is the whole plate for one-time molding, no welding |
| 7 | Hydraulic cylinder | Hypris |
| 8 | Oil pump | Changyuan |
| 9 | .Multi-way valve | Zhongmei, Yangzhou, Jiangsu Province |
| Ten | Hydraulic oil pipe | Bonway hydraulic oil pipe (high-density double-layer 24Mpa) |
| 11 | System rated pressure | 18 MPa |
| 12 | Compression ratio | ≥0.85 |
| 13 | Consolidation method | Two-way peristaltic compression |
| 14 | Control system | German Siemens PLC and German photoelectric sensors |
| 15 | Loading single cycle time | ≤24 s |
| 16 | Time to dump garbage | ≤35 s |
| 17 | Control method | All-in-one independent operation of the handsplet (standard remote control) |
| 18 | Key component structure | Reinforced with cast steel parts |
| 19 | Shovel and skateboard slider | Highly wear-resistant nylon |
| 20 | .The design of the whole vehicle | Use SW three-dimensional software to simulate |
| 21 | Back-hanging bucket method | Standard configuration: rear-turning barrel type (can hang the national standard 240 plastic barrel or iron barrel or triangle bucket) / optional: fully sealed bucket, swing arm flip |
| 22 | Body color/text | Body color and text painting can be customized according to customer requirements. |
| 22 | Attachment | Profile light, side light, work light |
- Larger loading capacity: the same volume of the box increases by 5% per square capacity compared with the previous generation (more than 7 barrels of 240L trash cans).
- Fault-prone position: The force position of the scraper skateboard is generally prone to force change.Shape, resulting in unstable work. The new generation of products developed by our company has been innovative in terms of materials and design, making the performance of the whole vehicle more stable and improving the service life.
- Working time: The loading time of the new generation of compressed garbage trucks produced by our company is within 25 seconds in the idle state, and the loading time is the longest time used by the vehicle, so it is economical fuel, reduces costs, and improves work efficiency.
- Wear parts: The scraper is the largest force on the vehicle, and the slide is the most worn. Our company's slide adopts a high-strength Q710 of more than 8mm. The middle of the scraper is strengthened separately, which has greater bearing capacity and stronger wear resistance, greatly increasing the service life.
- Oil pump: Oil pump is the main component of the compression vehicle. Our company's new generation oil pump is customized for oil pump factory, with stable performance and extremely low failure rate.
Precautions:
- When operating, irrelevant personnel should be avoided from approaching the vehicle, especially the rear of the vehicle.
If the garbage heap is too high, it will affect the pressure filling of garbage and the uniform distribution of garbage in the garbage bin.
Three,.When pressing and filling, you should pay attention to observation. If you find large pieces of other garbage (non-household waste) that cannot be compressed, you should stop it in time.
Stop the operation, continue the operation after cleaning, avoid damaging the working device of the vehicle, and it is strictly forbidden to compress construction waste..
Four.,When lifting and dropping the filler during the unloading operation, you should check the safety around you, operate carefully, and do not go on the slope.
Lift the loader, otherwise it is easy to shift the center of gravity back and cause a rollover accident.
5,The filler must not enter normal driving before it falls and is locked.
