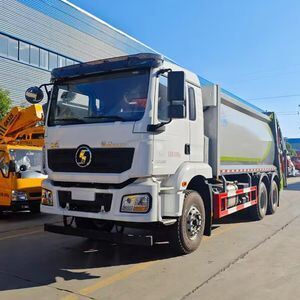

Shacman 24m³ Compression Garbage Truck - 6X4/6X6 Drive Options for Municipal Waste Disposal
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $30,000-55,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW5250ZYS6AQ | Type | Rear Loader |
|---|---|---|---|
| Volume | 30000L | Emission Standard | Euro V |
| Transmission Type | Manual | Payload | 40T |
| Fuel | Diesel | Drive Wheel | 6×4 |
| Brand | Shacman | Models | Large |
| Usage | Dump, Swing Arm Type, Sealed, Hang Barrel Type | Condition | New |
| Transport Package | Complete Vehicle | Specification | 10100X2550X3500MM |
| Trademark | CLW | Origin | China |
| HS Code | 8704224000 | Production Capacity | 1000 |
Product Description
High-performance compression garbage truck
1.High loading capacity and high operating efficiency. Utilizing advanced bidirectional compression technology, it boasts a high compression ratio, leading the industry. Short loading time, large hopper capacity, and short loading and unloading cycle times result in highly efficient and rapid waste collection and transportation, placing it at the forefront of the industry.
2.Adaptable and reliable loading mechanism. The loading methods cover major domestic waste collection methods, including: 240L/660L plastic bucket type, 300L iron bucket type, 600L iron hopper type, tipping bucket type, and lifting bucket type. It also features a unique four-bar linkage layout, adjustable loading mechanism teeth, hooks, etc.
3.Independent locking mechanism and double sealing technology. To ensure the sealing of the rear end of the waste bin and prevent sewage leakage, an innovative independent locking hook is designed to lock the loader. The sealing strip at the joint between the rear end of the waste bin and the loader remains compressed, ensuring excellent sealing performance between the loader and the waste bin. An innovative double-sealing technology is designed between the garbage bin and the filling device, using a special rubber seal that provides excellent sealing performance and effectively prevents secondary pollution.
Specification
Functional Description: The 24-cubic-meter container is used for loading household waste and consists of a sealed trash bin, filler, pusher blade, hydraulic transmission system, and electrical control system. The fully enclosed vehicle utilizes integrated electro-hydraulic technology. Leveraging a combined mechanical, electrical, and hydraulic automatic control system, the bin, filler, and pusher blade utilize specialized devices to dump, crush, flatten, and lift waste, squeezing it into the vehicle compartment for compaction and unloading. Wastewater generated during the compression process flows into the wastewater compartment, eliminating secondary pollution during waste transportation. Users can choose from a variety of tipping mechanisms to suit different waste collection methods: standard iron bins (ZBT59003-88) (300L), plastic bins (240L), plastic bins (660L), and plastic bins (1100L). Optional tilting mechanisms include a triangular bucket, large floor-standing bin, and swing-arm bins. An optional pneumatic sealing cover is also available.
Key Configurations
1. The housing utilizes a sturdy frame structure welded from reinforced beams and high-strength steel plates.
2. The housing welds utilize a domestically pioneering robotic automated welding process.
3. Key components of the electrical and hydraulic systems utilize a Siemens PLC control system.
4. All cylinder seals are imported from the UK, using the HALLITE brand to ensure long cylinder life.
Technical Specifications
(Custom configurations available upon request.)
Model | CLW5250ZYS6AQ | Product Name | Compressed Garbage Truck |
Gross mass (kg) | 25,000 | Overall Dimensions (mm) | 10100X2550X3500 |
Curb weight (kg) | 15,000 | Wheelbase (mm) | 4370+1350 |
Trash tank capacity (m³) | 24 | Tire Specification | 11.00R20 |
System pressure (bar) | 180-200 | Number of Tires | 10 |
Compression ratio | 3.6:1 | Engine Model | YCK08350-60 |
Fuel Tank (L) | 350 | Power (Kw) (Horsepower) | 257 (350) |
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
Decomposition Diagram of Compressed Garbage Truck
1.Packer Lock Hook: The lock hook device has a firm structure and is adjustable, ensuring a tighter gap between the packer and the box.
2.Back Pressure Valve: Two-way compression increases the compression ratio of loaded garbage and improves the garbage load capacity.
3.Hydraulic Oil Tank: It has a triple filtration function, stores the oil needed for the system circulation, and dissipates the heat generated when the system is working.
4.Multi-way Valve: Adopts Jiangsu Zhongmei/Weisenbole hydraulic valve, with high precision and stable performance.
5.Hydraulic Oil Pipe: Uses high-precision high-pressure oil pipe, which is resistant to high pressure and corrosion, and has a long service life.
6.Hydraulic Cylinder: Uses well-known Boli/Feida brand cylinders.
7.Proximity Switch: Uses a photoelectric induction switch to switch actions, reduce cylinder pressure, and make the electronic control system more stable.
8.Integral Nylon Slider: Integral nylon slider, strong and wear-resistant, with self-lubricating function, and long service life.
9.Rear Lighting: Convenient for operation at night or when the light is poor.
10.Sewage Tank (at the rear): Installed at the bottom of the packer to prevent secondary pollution during transportation; the sewage tank is made of galvanized material, which is corrosion-resistant and durable.
11.Rear Tipping Mechanism: New roller structure, low resistance, smoother operation, and can hang 120L, 240L or 660L trash cans at the same time.
12.Remote Control Device: Remotely control the loading and unloading of garbage, more intelligent and more humanized.
13.Electronic Control Device: Adopts Siemens PLC or CAN bus electronic control system, which is convenient to operate and simple to use.
14.Balance Valve: Ensure the synchronous action of the cylinder, prevent the oil pipe from bursting, and ensure the safe operation of the packer.
15.Arc-shaped Box: Adopts robotic automatic welding, the box structure is more stable, and the weld is beautiful without scraping ash.
16.Sewage Tank (on the side): Side-mounted large-capacity sewage tank, which can hold more sewage and has a cleaning port.
After Sales Service
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
CHENGLI SPECIAL AUTOMOBILE CO., LTD
Chengli Special Purpose Vehicle Co., Ltd., located in the southern suburbs of Zengdu District, Suizhou City, Hubei Province, was established in September 2004 with registered capital of 100 million yuan. The company currently has total assets of 1.645 billion yuan, occupies 610 mu (approximately 16 acres), and employs 1,786 people. Its main business scope includes the research and development, manufacturing, sales, and service of complete vehicles, special-purpose vehicles, new energy vehicles, and emergency support vehicles.
The company has obtained ISO9001 quality management, ISO 14001 environmental management, and ISO45001 occupational health and safety management system certifications. It also holds various management certifications, including five-star after-sales service, 3C compulsory certification, automotive energy conservation and environmental protection certification, automotive tax exemption certification, American Society of Mechanical Engineers (ASME) certification, and EU Agreement ADR. The company holds production qualifications for special-purpose vehicles, complete vehicles, new energy vehicles, truck-mounted cranes, mobile cranes, and fire trucks.
The company's "Chengliwei" branded products are popular both domestically and internationally, with exports to over 50 countries and regions, including Nigeria, Ghana, Angola, Bolivia, Chile, Cambodia, and Myanmar.
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Sprinkler truck
Sewage suction truck
Road sweeper
Tank truck
Refrigerated truck
Crane
FAQ
Q: What is the order lead time?
A: Standard models ship within 15-30 days; customized models ship within 30-45 days.
Q: Do you provide overseas after-sales service?
A: Yes, we have partner service centers in major regions.
Q: Can I request a custom order?
A: Of course! We also offer custom accessories.
Q: What export documents do you provide?
A: Complete export packaging (commercial invoice, packing list, bill of lading, certificate of origin, etc.).
Q: How do I place an order?
A: Contact us by email or phone for a quote, then confirm with a purchase order.
