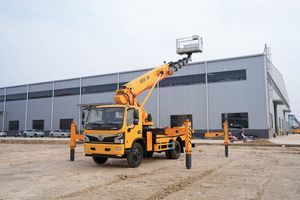

High-Quality Dongfeng 45m Aerial Work Truck for Sale

Place of Origin	CHINA
Certification	ISO9001
Minimum Order Quantity	1
Price	US $30,000-40,000
Packaging Details	Nuked
Delivery Time	15 working days
Payment Terms	T/T,LC,
Supply Ability	150 sets/month

Product Details

Model NO.	CL5140JGK6	Type	Self-propelled
Emission Standard	Euro 6	Hoesrpower	195HP
Payload	14060kg	Fuel	Diesel
Transmission Type	Manual	Drive Wheel	4x2
Condition	New	Homework Height	34m
Size Of Work Basket	2000X700X1000mm	Work Platform Load Capacity	200kg
Main Arm Rotation Angle	200-500kg	Hydraulic Support Leg	4
Operating System	Can Wireless Remote Control	Video Display	5-Inch Display Screen
Vehicle Size	Vehicle Size	Transport Package	Road Transportation And Sea Transportation
Specification	8500x2500x3880mm	Trademark	Cheng Liwei Brand
Origin	Suizhou	HS Code	8705909990
Production Capacity	2000

Leave a Message

Product Description

The overall structure is made of high-strength steel plates, which is safe and reliable. It is equipped with adjustable hydraulic outriggers, with a large span and more stable; Equipped with manual control, electric control, remote control and other modes of operation, convenient and fast; It also has interlock, soft retreat protection, automatic limit of working height in dangerous environment and automatic emergency system to protect personnel safety and construction safety.

High-Quality Dongfeng 45m Aerial Work Truck for Sale 5

Main technical parameters:

Cheng Li brand 45 meters Main technical parameters of the aerial working vehicle
class	project		unit	data
Dimensions parameters	★ cabinet minister		mm	8440
	★ total width		mm	2550
	★ overall height		mm	3870
mass parameter	Number of passengers (including drivers)		human being	3
	gross mass		kg	14060
Main performance parameters	Rated load of the working platform		kg	200
	Maximum working height is ★		m	45M
	★ Operating range at the maximum working height		m	5.0
	★ Maximum operating range		m	18.0
	Operation height is ★ at the maximum operation range		m	17.0
	The leg span ★	broadwise	mm	6600
		direction	mm	4560
	★ wheel base		mm	4400
	Maximum driving speed		Km/h	89

Configuration Description:

Part name	Brief description
batholith	Dongfeng Freika single row EQ1125 SJ8 CDC
engine	Cloud inside the 170 horsepower engine country six emissions
pilothouse	Single row seat, can ride 3 people
Turn to assist	power-assisted steering
thermoregulation	Cab cooling and cooling air conditioning
Panel and walking plate	Stainless steel fence and anti-skid walking pad
Take force system	mechanized operation
foot platform	High strength stainless steel size: 2000X700X1000
Arm frame form	★ Seven section hexagonal working arm, synchronous expansion
rotator	360 degrees of continuous rotation
landing leg	★ Front V after V, individually adjustable (control)
operate	★ Electronic control operation, also equipped with manual emergency operation
navar	CAN bus control system, equipped with wireless remote control, realize stepless speed control
The leveling system	The quiescent fluid is automatically leveled

Basic functions and security configuration:

The maximum working height is 45 meters, and the maximum operating range is 18 meters.
name	Brief description
Get on and off automatic interlocking device	★ Used for interlocking on and off to prevent misoperation
Manual emergency pump	★ When the engine and main pump fail, the staff can be sent back to the ground and the whole vehicle back to the driving state through the emergency system
Emergency stop device of the working platform	★ For emergency stop operation and limit the boom operation
Automatically limits the working amplitude	★ When the working range reaches the specified value, automatically limit the dangerous direction of work.
"Real land support" limits the work	★ When the leg is not in real time (soft legs), the lifting boom will limit the dangerous direction.(apolegamy)
Night safety warning device	★ There are engineering strobe lights and LED lights on the vehicle
Engine ignition and flameout	★ The controller can fire the engine and control the flameout
The "Force" operation function	★ When your work is restricted, you can expand your work through the "mandatory" function

3. Introduction and performance features of the aerial work vehicle:
1. Function introduction:
The working height of the brand straight arm aerial working car is 12 meters, 14 meters, 16 meters, 18 meters, 20 meters,
21 meters, 22 meters, 28 meters, 29 meters, 45 meters, using the full telescopic working arm, the leg span is large, stable

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station

2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker

3. Truck with crane / Truck mounted crane

4. Dump Truck / Tipper Truck/Side Tipper/End Tipper

5. Fire Fighting Truck / Fire Truck / Fire Vehicle

6. Concrete Mixer Truck

7. Van truck / Blasting equipment transporter/ Refrigerated truck

8. Fecal suction truck / Sewage suction truck

9. Cement Powder Tank truck/ Bulk cement truck

10. High-altitude operation truck,

11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck

12. Tractor

13. High Pressure Cleaning Truck

14. Sweeper Truck

15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
High-Quality Dongfeng 45m Aerial Work Truck for Sale 6

FAQ
1. Q: How about the quality of trucks of your factory?

A: Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.

2. Q: How many years of your company's service, especially after-sale service?

A:Hubei CLW group and our group has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.

3. Q: Is there any advantages of your price?

A: CLW Group is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.

4. Price term: FOB, CIF.

5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.

6. Delivery time: 25 working days after payment is received.
