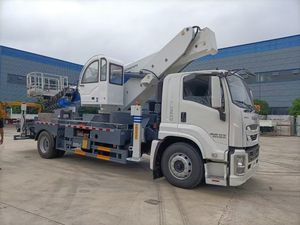

Premium Isuzu 45m Aerial Work Platform Hydraulic Lift Truck
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $60,000-70,000 |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CLW5180JSQ | Type | S |
|---|---|---|---|
| Emission Standard | Euro 6 | Hoesrpower | 250HP |
| Payload | 18000kg | Fuel | Diesel |
| Transmission Type | Manual | Drive Wheel | 4x2 |
| Condition | New | Homework Height | 45m |
| Size Of Work Basket | 1900X700X1200mm | Work Platform Load Capacity | 500kg |
| Main Arm Rotation Angle | 360 | Hydraulic Support Leg | 4 |
| Operating System | Can Wireless Remote Control | Video Display | 5-Inch Display Screen |
| Vehicle Size | 9665X2500X3980mm | Transport Package | Road Transportation And Sea Transportation |
| Specification | 9665*2500*3980mm | Trademark | ISUZU |
| Origin | Suizhou | HS Code | 8705909990 |
| Production Capacity | 2000 |
Product Description
| Chassis parameters: | |
| batholith | isuzu |
| Chassis model | QL1180JQFRCY |
| pilothouse | isuzu GAGI |
| Drive form | 4*2 |
| wheel base | 5550mm |
| engine type | 4HK1-TCG60 |
| Engine horsepower | Isuzu 205HP |
| engine power | 151 Kw |
| displacement | 5193ml |
| effluent standard | Six countries |
| gear-box | Isuzu MLD 6-gear transmission |
| tyre | 295 / 80R22.5 16PR tyre |
| Front / rear of the car bridge | 6500/11500 |
| car beam | 850MM |
| air-conditioning | have |
| Direction to help | have |
| Broken gas brake | have |
| Multi-functional dashboard | have |
| Modified configuration | |
| gross mass | 18000Kg |
| curb weight | 17805Kg |
| Chassis weight | 5100Kg |
| Upper weight | 12705Kg |
| outline dimension | 9665*2500*3980mm |
| Rated load of the working platform | 200Kg |
| Maximum operation height | 45M |
| Maximum operation range | 18M |
| On the operation | Install the cab |
| Leg span: in the transverse / longitudinal direction | 6600/5560mm |
| Number of raised arms | 7-section wire rope chain expansion structure |
| revolving stage | 360° continuous rotation |
| Lift the height | 30 M |
| operating system | CAN wireless remote control / manual emergency operation |
| High-strength stainless steel platform load | Dimensions: 2,000 X700X1000mm / 200 Kg |
| The highest speed | 89Km/h |
| hydraulic leg | Front V type V 4 / root |
| Manual emergency pump | When the engine and main pump fail, the staff can be sent back to the ground and the vehicle back to the driving state through the emergency system |
| Get on and off automatic interlocking device | To interlock on and off the car to prevent misoperation |
| Night safety warning device | On the vehicle there are engineering strobe lights, LED lights |
| Operation display | A 5-inch LCD screen |
The company has successively passed ISO9001 quality management, ISO 14001 environmental management, ISO45001 occupational health and safety management system certification, after-sales service five-star, 3C mandatory certification, automotive energy conservation and environmental protection certification, automotive exemption certification, American mechanical engineer ASME certification, European Union agreement ADR and other management certifications. It has production qualifications for special vehicles, whole vehicles, new energy vehicles, on-board cranes, car cranes, fire trucks, etc.
The company's "Cheng Liwei" trademark products sell well in domestic and international markets, and are exported to more than 50 countries and regions including Nigeria, Ghana, Angola, Bolivia, Chile, Cambodia, Myanmar, etc
The company has obtained national industrial product production license, ISO 9001 quality management, ISO 14001 environmental management, ISO 45001 occupational health and safety management system certification, after-sales service certification, 3C mandatory certification, automobile energy conservation and environmental protection certification, and automobile exemption certification. We have production qualifications for specialized vehicles, on-board cranes, truck cranes, fire trucks, new energy vehicles, complete vehicles, and buses.
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
1. Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001: 2008 and CCC, and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.
2. Q: How many years of your company's service, especially after-sale service?
A:Chengli Special Purpose Vehicle Co., Ltd. (referred to as "Chengli Special Purpose Vehicle") is a wholly-owned subsidiary of Chengli Automobile Group Co., Ltd. We have been working in this field for nearly 20 years and have strong production and distribution capabilities. We can produce your products within 15 working days. We provide one-year after-sales service.
3. Q: Is there any advantages of your price?
A: CLW Group is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.
4. Price term: FOB, CIF.
5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
6. Delivery time: 25 working days after payment is received.
