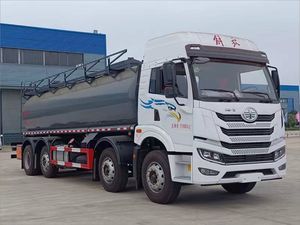

FAW 25 Cbm Fuel Tank Truck for Efficient Fuel Delivery

Vehicle model: CL5311GPGC6
Chassis configuration: HanV2.0 flat floor high roof fully floating cab (four point air suspension); Xichai CA6DLD-29E6; Shaanxi tooth 9JS119A; 457 upgraded stamping bridge (speed ratio 4.444); 280*80*(8+5); 295/80R22.5-16 levels; Dedicated chassis for liquid supply vehicles; air conditioner; Camel brand 150Ah battery; Bring domestic EBS; Electric lifting; Electric doors and windows; Front and bottom protection; Beidou+GPRS driving recorder; 220V power supply; Cruise control system; Central locking system; High explosive pressure version; The speed limit is 89KM/H; 400L fuel tank; U-shaped post processor; ETV valve; Aluminum alloy gas storage cylinder; Leaf spring 10/10/6+-/10+9; Leather ventilated seats (lumbar support, armrests); Multi functional steering wheel; Rain eyebrows;
Upper configuration: Strictly made according to the announced size and appearance style, it is a round tank with an announced effective volume of 18.3 cubic meters and an actual effective volume of 18.3 cubic meters. The tank body is made of high-quality carbon steel plate, with a cylinder body of 4.2mm, a head of 4.75mm, and a plastic lining of 16mm. There are two plastic lined tank mouths, an acid receiving plate on the top of the tank, a walking platform, and a folding guardrail. The rear end is equipped with 3-inch PP ball valves, two equally long discharge pipes, PVC gun barrels, one toolbox, two plastic outlet boxes, and the rest are standard in the factory. Paint: According to the announcement, affix reflective strips
Precautions for refueling trucks:
(1) Check if the rear anti-static traction belt is on the ground and if all equipment is functioning properly.
(2) Insert the pole into the damp ground to prevent static electricity from catching fire.
(3) Check whether the clutch control handle, power take-off control handle, and control valve switch are in the correct position, whether the throttle is turned to the minimum, and whether the ball valve handles are in the correct position.
(4) Check the lubricating oil level in the pump gearbox. If it is insufficient, add gear oil.
(5) When there is no liquid in the oil pump, a guide fluid should be added to the pump body in advance. When using a new car for the first time, it is necessary to add a guide fluid to the pump to prevent damage to the pump body caused by dry running without liquid.
(6) Check whether the discharge pipeline, discharge valve, and conveying pipe are empty and clean, ensuring that all pipelines are suitable for loading and unloading medium items.
(7) If liquid needs to be extracted, the rotating equipment should be kept away from the oil tanker to prevent entanglement. When extracting liquid, the pump should be stopped promptly and the valve should be closed.
(8) In emergency situations, the emergency control valve should be promptly closed and cut off.
FAQ
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts.  Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
  A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?

A:Yes.  We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?

A:We can provide various certifications associate.  Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?

A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products.  Meanwhile we provide free training and technical support to guide you repair your product.  If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
