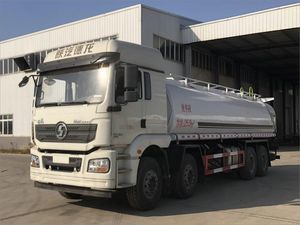

Heavy-Duty 20000L Fuel Tank Truck for Crude Oil Transport

Vehicle model: CL5310TGYS6
Liquid supply vehicle~Shaanxi Automobile · Delong~New M3000 front four rear eight
[Announced Model] Liquid Supply Vehicle
Chassis Model SX1319MC6Z1
[Vehicle Model] CL5310TGYS6
[Wheelbase] 1800+4575+1400
Engine Weichai WP9H350E62 engine
Transmission Fast 12JSD180T Transmission
Total weight 31000 kg
Chassis Configuration :M3000 cab, Handman 7.5-ton front axle, 13 ton wheel reduced rear axle, 12.00R20 steel wire tires, original air conditioning, airbag seats, central control key, electric doors and windows.
Upper configuration : Effective volume of tank body: 30 cubic meters, Q235 plate, carbon steel tank body 5mm thick, carbon steel head 5.5mm thick, partition 4mm thick, with 2 ordinary tank ports, equipped with 80-60 pumps, can pump in and out, 4-inch pipeline, 3-inch outlet, all other accessories are made of carbon steel material, according to the factory standard, provide chassis certificate, vehicle certificate, and upper invoice
Precautions for refueling trucks:
(1) Check if the rear anti-static traction belt is on the ground and if all equipment is functioning properly.
(2) Insert the pole into the damp ground to prevent static electricity from catching fire.
(3) Check whether the clutch control handle, power take-off control handle, and control valve switch are in the correct position, whether the throttle is turned to the minimum, and whether the ball valve handles are in the correct position.
(4) Check the lubricating oil level in the pump gearbox. If it is insufficient, add gear oil.
(5) When there is no liquid in the oil pump, a guide fluid should be added to the pump body in advance. When using a new car for the first time, it is necessary to add a guide fluid to the pump to prevent damage to the pump body caused by dry running without liquid.
(6) Check whether the discharge pipeline, discharge valve, and conveying pipe are empty and clean, ensuring that all pipelines are suitable for loading and unloading medium items.
(7) If liquid needs to be extracted, the rotating equipment should be kept away from the oil tanker to prevent entanglement. When extracting liquid, the pump should be stopped promptly and the valve should be closed.
(8) In emergency situations, the emergency control valve should be promptly closed and cut off.
FAQ
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts.  Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
  A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?

A:Yes.  We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?

A:We can provide various certifications associate.  Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?

A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?

A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?

A:We provide lifelong tracking service and one year free warranty for all of our products.  Meanwhile we provide free training and technical support to guide you repair your product.  If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
