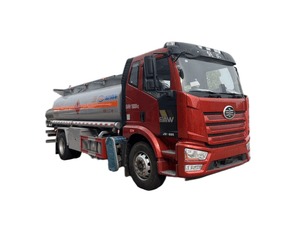

High-Quality FAW 4X2 Diesel Fuel Tanker Truck for Sale
| Place of Origin | CHINA |
|---|---|
| Certification | ISO9001 |
| Minimum Order Quantity | 1 |
| Price | US $7,000-8,000 / P |
| Packaging Details | Nuked |
| Delivery Time | 15 working days |
| Payment Terms | T/T,LC, |
| Supply Ability | 150 sets/month |
Product Details
| Model NO. | CL5180GJYC | Transmission Type | Manual |
|---|---|---|---|
| Power | Diesel | Load Capacity | 11-20t |
| Horsepower | 150-250hp | Engine Capacity | 4-6L |
| Storage | Oil | Tire Certification | ECE, GCC, ISO, DOT |
| Tire Design | Radial | Condition | New |
| Fuel | Diesel | Engine | Xichai 220 HP |
| Gearbox | Fast 9-Speed Gearbox | Tire | 275/80r22.5 |
| Wheelbase | 4700mm | Transport Package | Whole Vehicle |
| Specification | 10Cubic | Trademark | C L W |
| Origin | China | Production Capacity | 10000 |
Product Description
Vehicle model: CL5180GJYC6 (stainless steel configuration)
Chassis configuration: New Liberation J6L fully floating flat roof semi cab, hydraulic instrument panel, electric glass lift, electric rearview mirror, side net pocket, rear curtain guide rail, panoramic curtain guide rail, overhead storage box, driver's seat with air damping seat, middle seat, single DIN Beidou dual capacity onboard system, power main switch control switch, 237x75x6.5275/80R22.5 type 18 level tubeless, automatic air conditioning, front and lower protective device VOSS pipeline and joints, 300L aluminum fuel tank, electronic manual throttle, integrated metal wide body bumper, electric hydraulic lifting, speed limit of 79km/h, exhaust spark arrester, vehicle equipped with 1 electrostatic towing belt, 1 2kg dry powder fire extinguisher in the cab, exhaust tailpipe and muffler front, front disc rear wedge brake, Yijia 3/- (electronic control ECAS), rear suspension 2300mm, seat belt wearing reminder, brake lining replacement alarm, tire burst emergency safety device, U-shaped post-treatment, ESC, aluminum air storage cylinder, EBS (brake control system), LDW (lane departure warning) FCW (collision warning) single tire belt TPMS (tire pressure monitoring), exhaust throttle valve T-Box 1.5.
Upper configuration: Announced volume: 12.7 square meters, 304 stainless steel plate, cylinder body 4.2mm thick, head 4.5mm thick, partition 4.2mm thick, single compartment, tank top with one stainless steel European standard tank mouth, complete set of European standards, one stainless steel submarine valve with voice alarm device, equipped with 80/60 dedicated stainless steel oil pump (can pump in and out), (optional high flow fuel dispenser and 15 meter thick reel and gun) rear ladder, manual guardrail, toolbox, rear bumper, side guardrail, made according to the new standard, standard for other manufacturers, can produce diesel gasoline medium tank inspection report, provide chassis certificate, vehicle certificate, and customer invoice
| [Vehicle technical parameters] | |||
| Product trademark | Cheng Li card | Announcement batch | 363 |
| product name | oil-can | product model | CL5181GYYC6 |
| gross mass (Kg) | 18000 | Tank volume (m3) | 14.4 |
| Rated load mass (Kg) | 9800,9865 | outline dimension (mm) | 8380×2500×3200 |
| curb weight (Kg) | 8005 | Goods Chamber Size (mm) | ×× |
| Rated passenger capacity (person) | Quasi-trailer total mass (Kg) | ||
| Number of passengers (person) | 2,3 | Maximum saddle load mass (Kg) | |
| Approach angle / departure angle of (°) | 21/11 | Front suspension / rear suspension (mm) | 1332/2348 |
| axle weight (Kg) | 6500/11500 | Top vehicle speed (Km/h) | 80 |
| [Chassis technical parameters] | |||
| Chassis model | CA1185PK2L2BE6A81 | Chassis name | Flat-head diesel truck chassis |
| brand name | Liberation card | manufacturing enterprise | China FaW Group Co., Ltd |
| number of axles | 2 | Number of tires | 6 |
| wheel base (mm) | 4700 | ||
| tyre size | 275/80R22.5 18PR | ||
| Number of steel plate spring sheets | 3/2+-,7/2+- | front gauge (mm) | 1922,1950,1946,1965,1987 |
| Fuel types | diesel oil | rear track (mm) | 1800,1878 |
| Emission basis standard | The GB17691-2018 countries | ||
| engine type | Engine production enterprise | displacement (ml) | power (Kw) |
| CA6DLD-22E6 | China FaW Group Co., Ltd | 6600 | 164 |
FAQ
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
