Vehicle Technical Parameters

Vacuum Pump Type

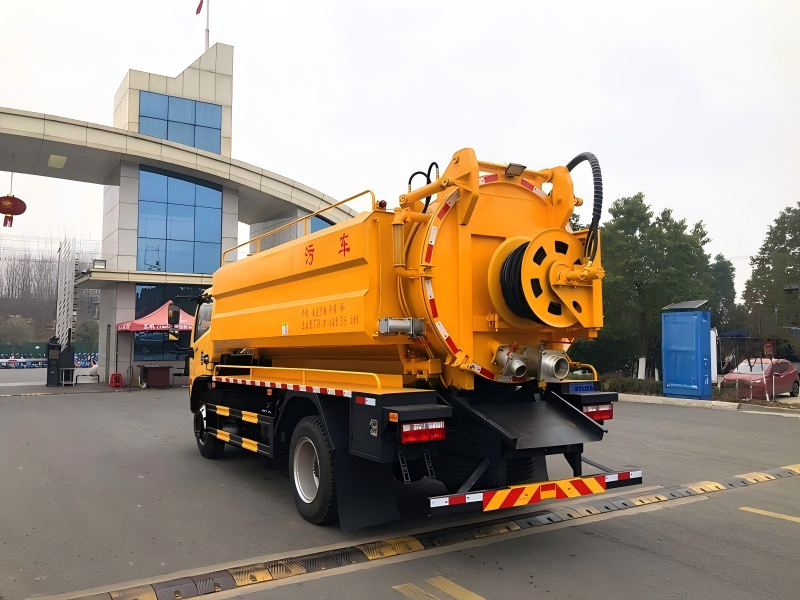

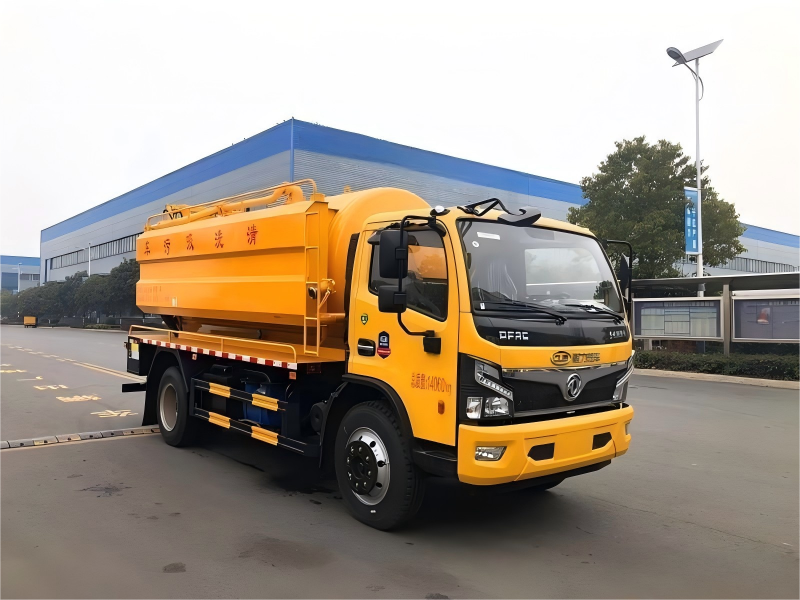

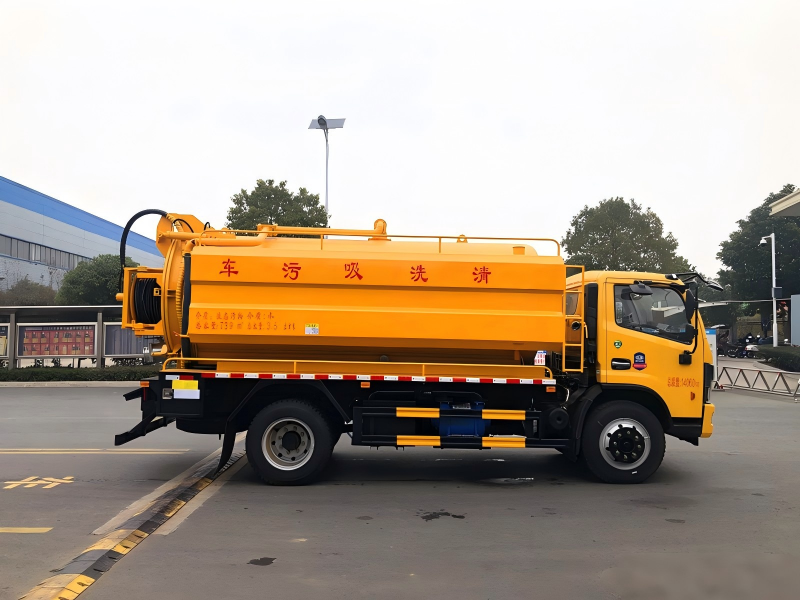

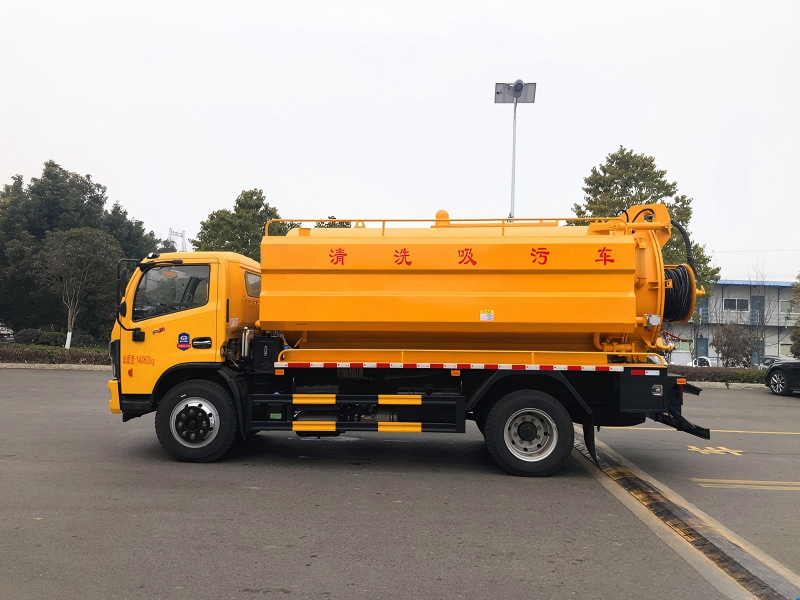

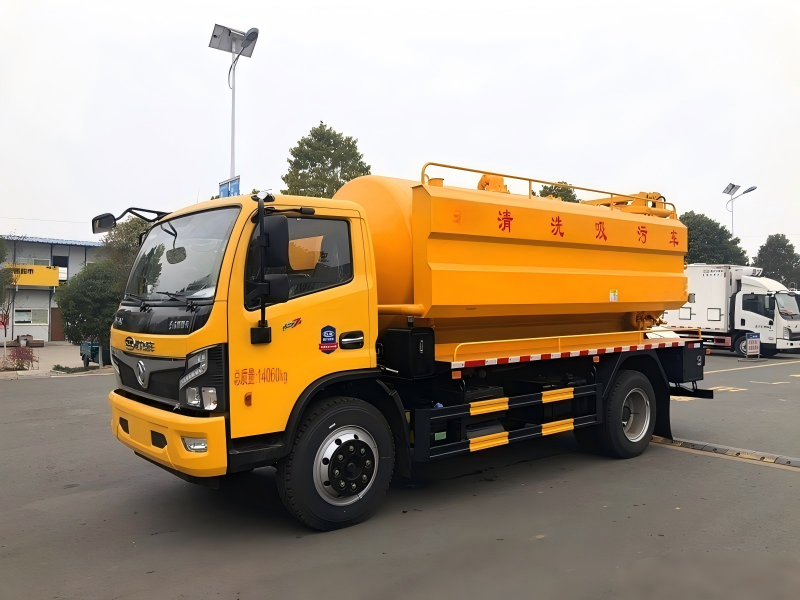

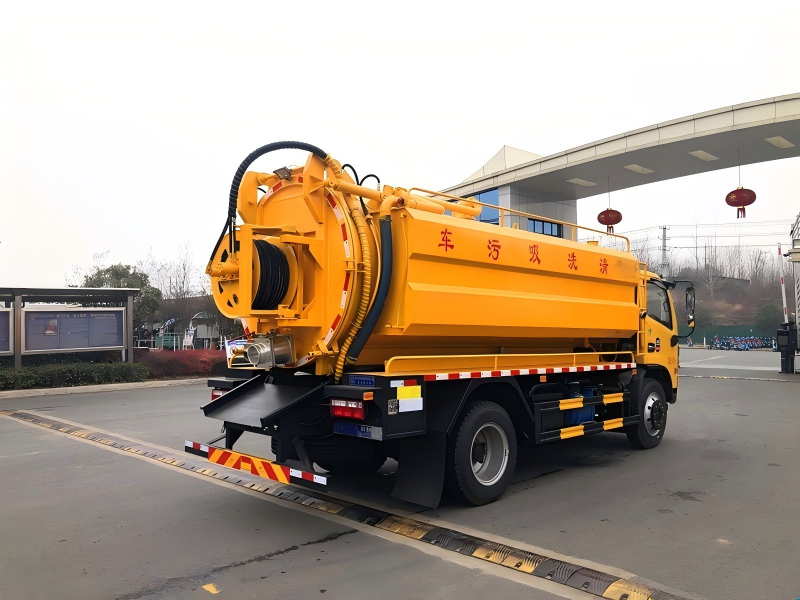

Vacuum Sewage Suction Truck

Curb Weight(Kg)

6175

Boundary Dimension(mm)

6900×2350×3100

Tank Volume(m³)

8

Tank Thickness（mm）

6

Tank Body Material

Q235 Carbon Steel

Vacuum Pump Type

Water Cycle/Oil Circulation

Vacuum Pump Pumping Speed（m³/h）

65

Suction Pipe Diameter（mm）

100

Vertical Suction(m)

6～8

The Way The Sewage is Discharged

Blowdown Valve/Lift the Tank

Operating Ambient Temperature（°C）

-20~45

Cab Capacity

2

Chassis Technical Parameters

Chassis Brand

Dong Feng

Brake

Automatically Air-Cut Brake

Fuel Type

Diesel Oil

Engine Power（kw）

YuChai 121KW

Front Axle/Rear Axle (t)

3.9/7

Gearbox Model

6 Speed Manual Transmission

Number of Axles

2

Wheelbase (mm)

3800

Number of Tires

6

Tire Size

8.25R20
