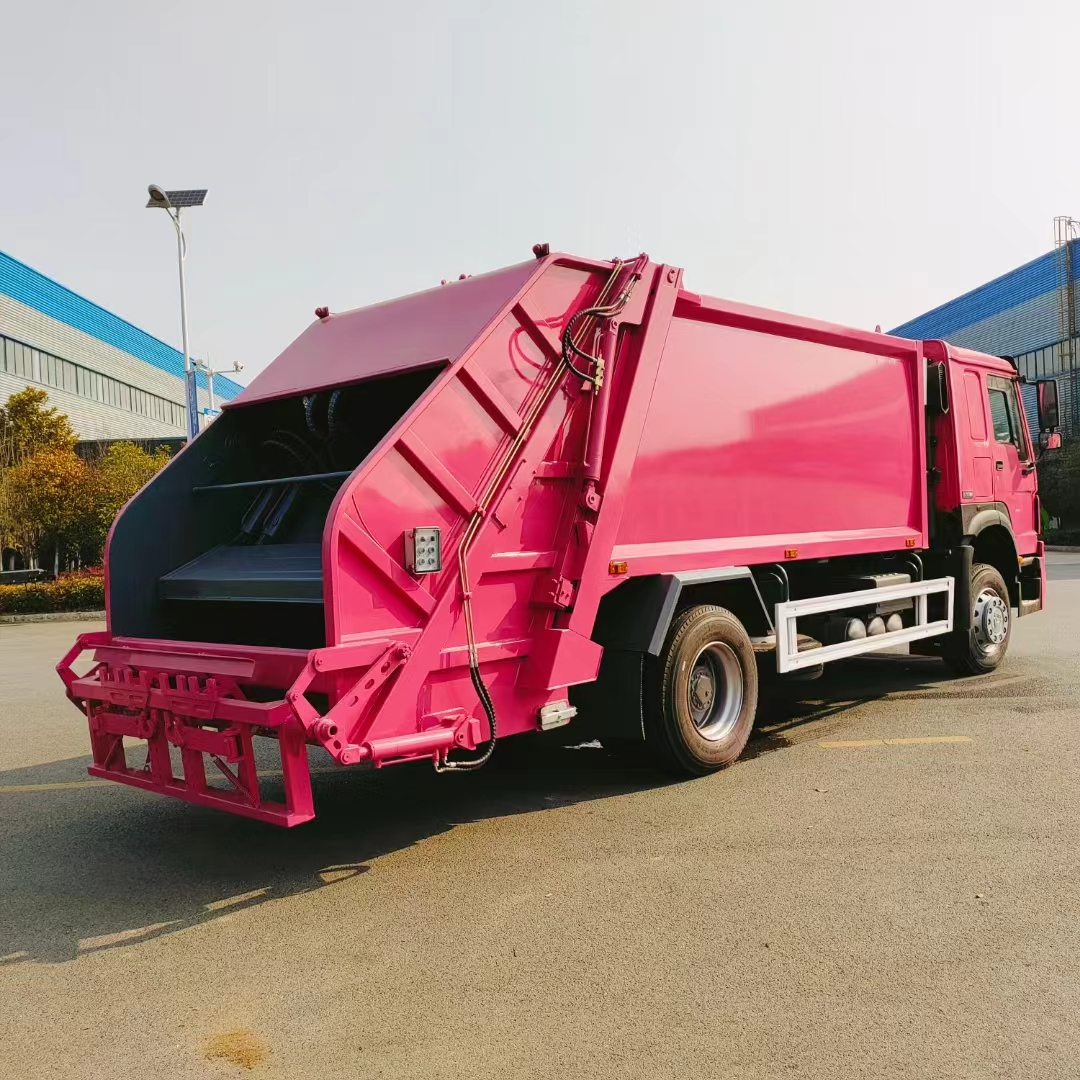

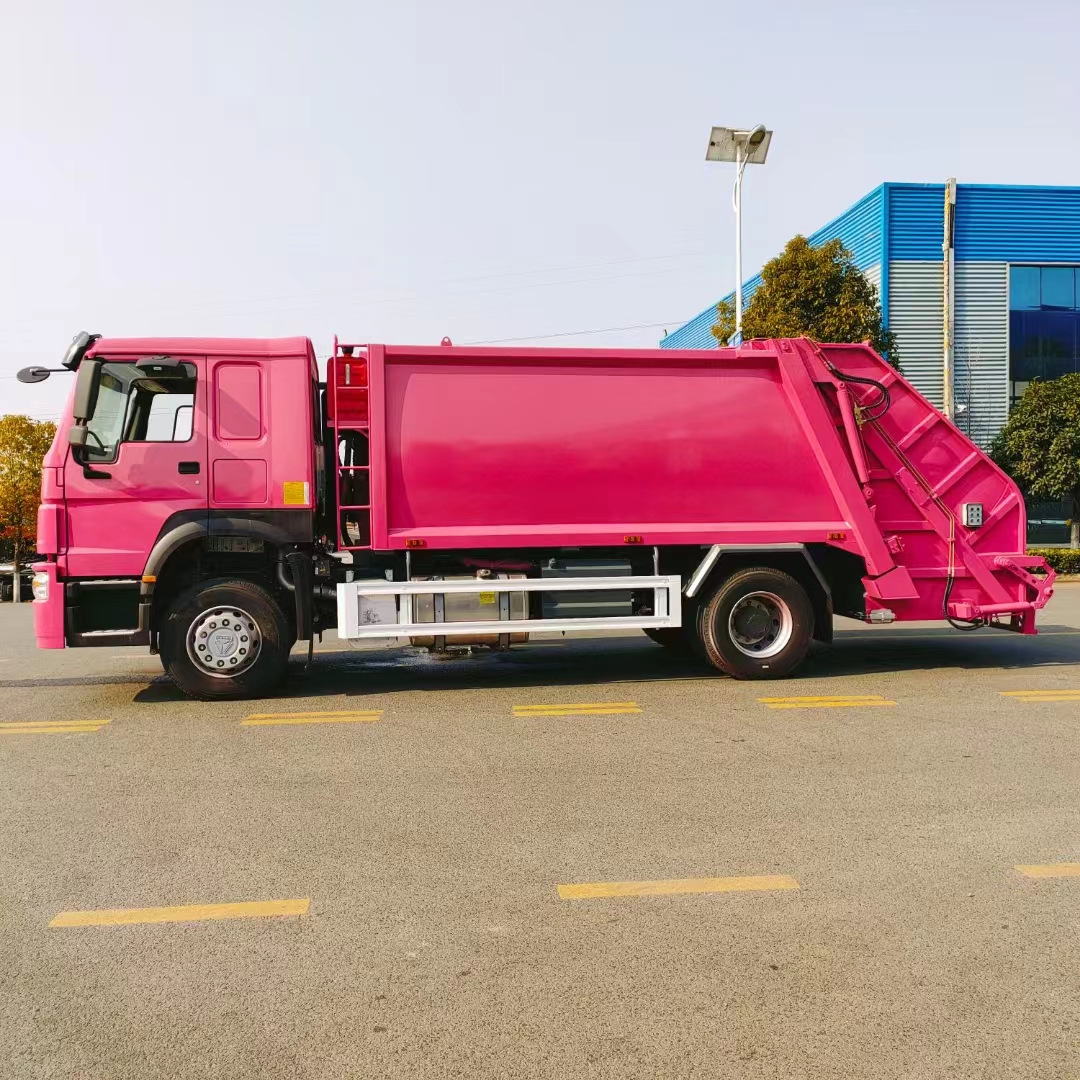

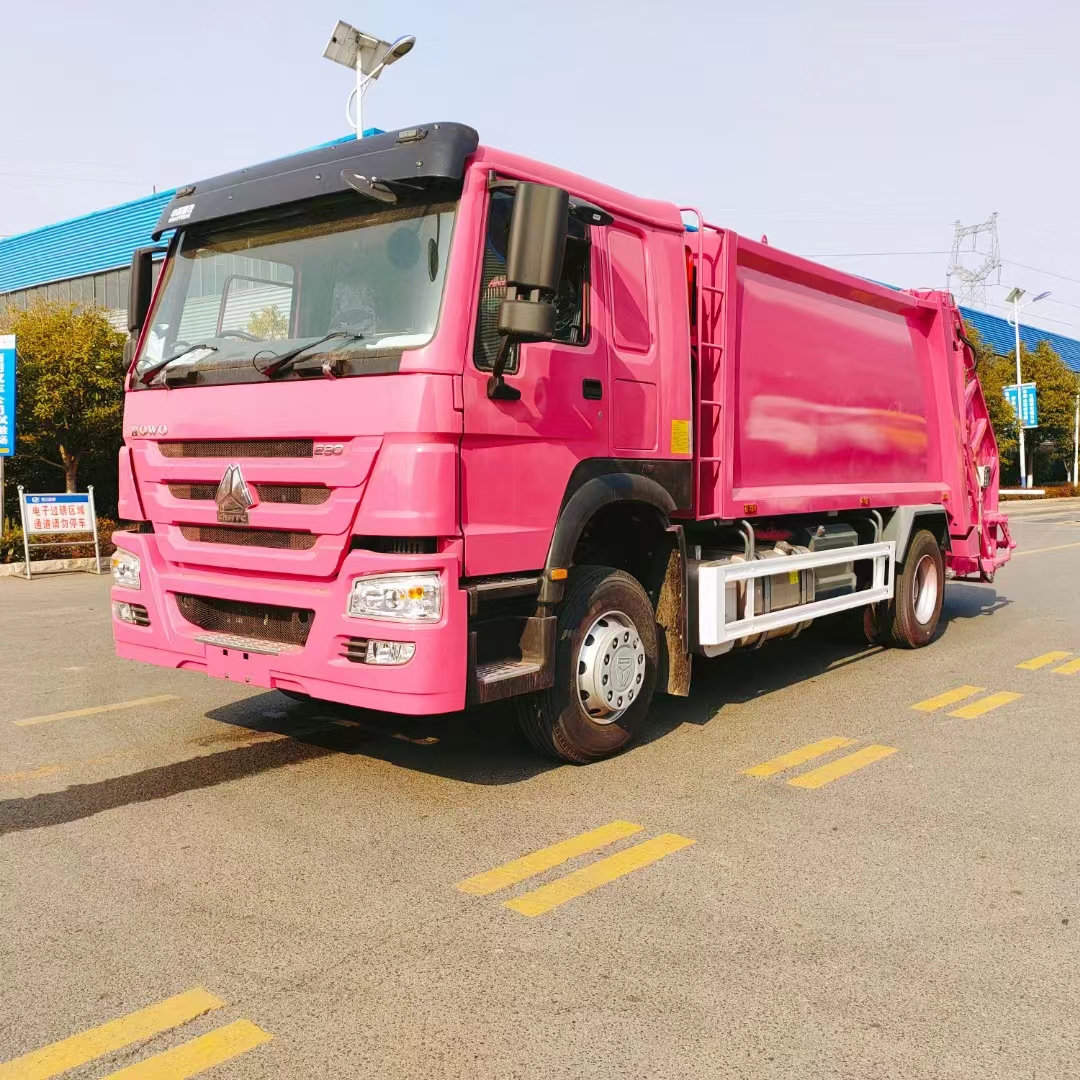

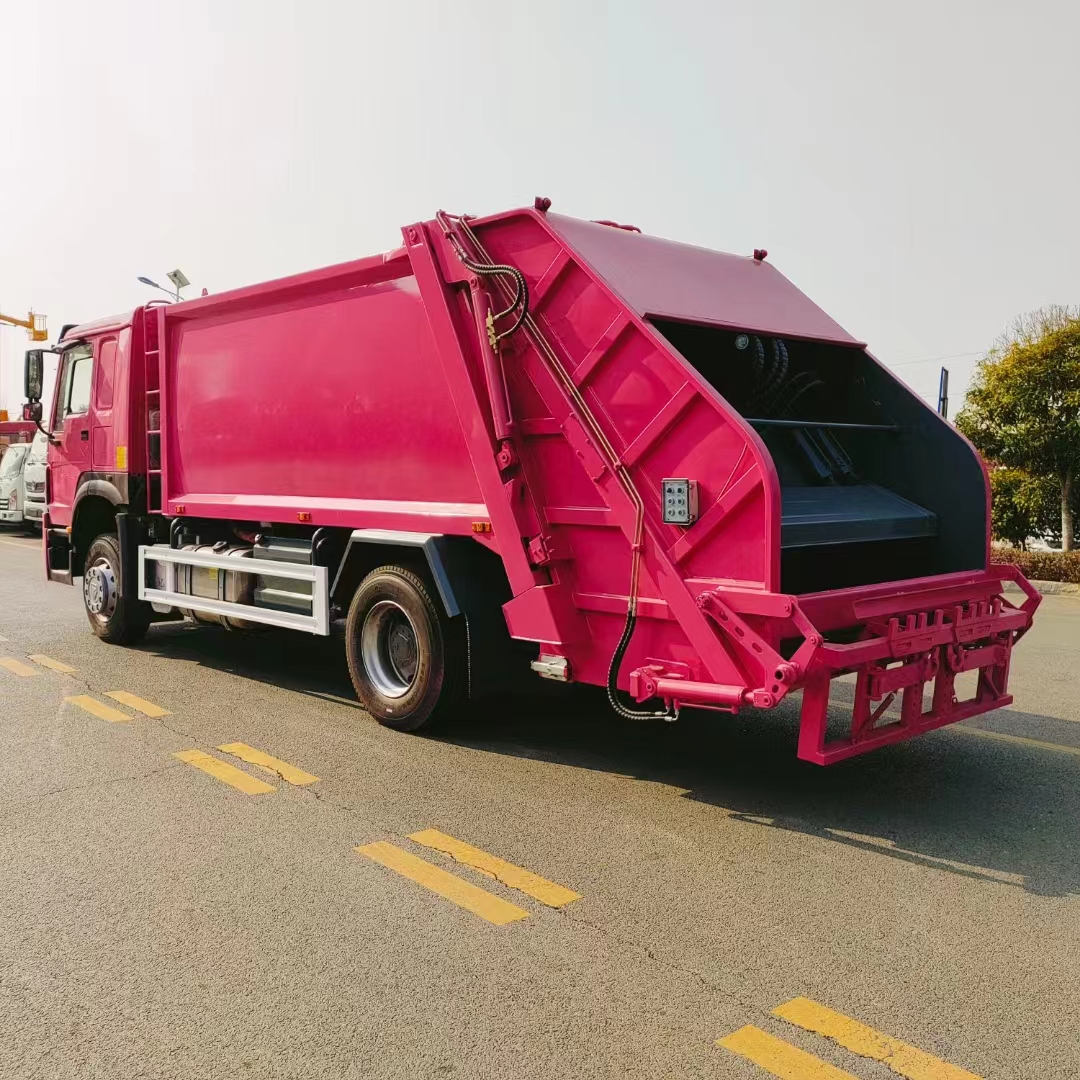

HOWO 15cbm Garbage Compactor Truck
The main function of a garbage compactor truck is to do the collection of all kinds of waste: garbage, solid waste , and recycling objects and transport to waste treatment facilities. Garbage truck are mostly used by municipal facilities and private companies. Off road /All wheel drive garbage truck are suitable for rough road use, mountain roads, desert dunes, and forest use.
Garbage compactor truck feature:
* high intense Q235b carbon steel
* Compression cycle time: 25-30s
* compression density: 0.6-0.8t/m3.
* unloading garbage is: 40s
* PLC control system: left & right control panel at rear part of truck, operation hanle at side of the truck, control panel at driver cabin
* Rear loading : lifting mechanism working with 120L/240/600L plastic garbage, can be customized as per customer's
|
SINOTRUK HOWO 15cbm Garbage Compactor Truck |
|||
|
Condition |
New condition/Right hand drive/4x2 |
||
|
Chassis |
Brand |
HOWO |
|
|
Curb weight(kg) |
18000kg |
||
|
Wheelbase(mm) |
4600mm |
||
|
Dimensions(mm) |
9850*2520*3300 mm |
||
|
Axle Load(kg) |
7000/16000 kg |
||
|
Max. driving speed(km/h) |
90 km/h |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
Brakes |
air brake |
||
|
Steering Gear |
Power assistant |
||
|
Tire |
Number |
6pcs with one spare tire |
|
|
Specifications |
12.00R22.5 |
||
|
Transmission |
Manual type, 10 Forwards and 2 Reverses |
||
|
Cabin |
It can accommodate three people, With Air conditioner |
||
|
Engine |
Brand |
Weichai |
|
|
Model |
WP10.340E22 |
||
|
Horsepower/(HP) |
340 HP |
||
|
Emission standard |
Euro II |
||
|
Upper Body |
|||
|
Item No. |
Parameters |
||
|
Volume Capacity(Garbage) |
15CBM |
||
|
Thickness of the tank |
5mm for the bottom and 4mm for the side carbon steel |
||
|
Sewage tanker(one side of the truck) |
200 L |
||
|
Tail gate volume(L) |
800L(Filling structure) |
||
|
|
Rated Pressure of Hydraulic system: 16 Mpa |
||
|
|
Filling time of loading system: 8-10 s |
||
|
Specification |
Working cycle of Loading system: 50-60 s |
||
|
|
Working cycle of the unloading system: 30-40 s |
||
|
|
Compress ratio:0.6:0.7 |
||
|
|
Equipped with hermetic dustbin, hydraulic system and operating system. |
||
|
|
Automatic compress and uninstall, sewage can be collected by the sewage tank. |
||
|
Equipment |
Control system: China top brand operate system. |
||
|
Painting and Logo |
As customer’s requirement |
||
|
Other detail |
China Famous brand and quality hydraulic pump, Multiple way valve, Tilt plate oil cylinder, |
||
|
Tail gate cylinder, Scraper cylinder, Slide plate cylinder, Push plate cylinder. |
|||
