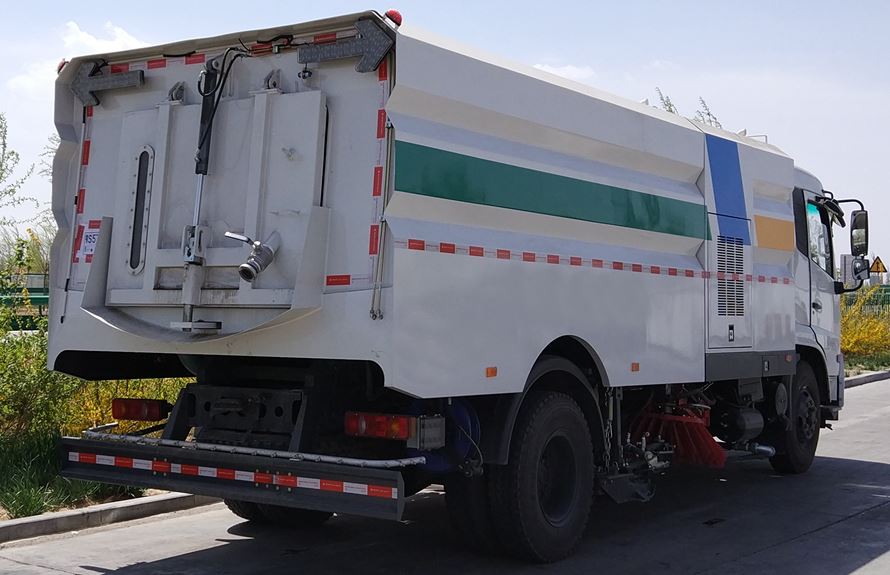

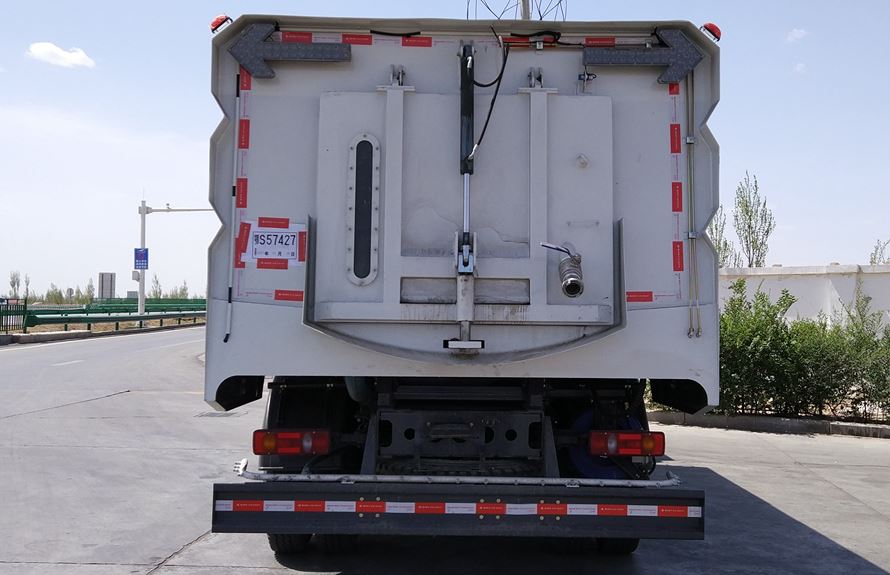

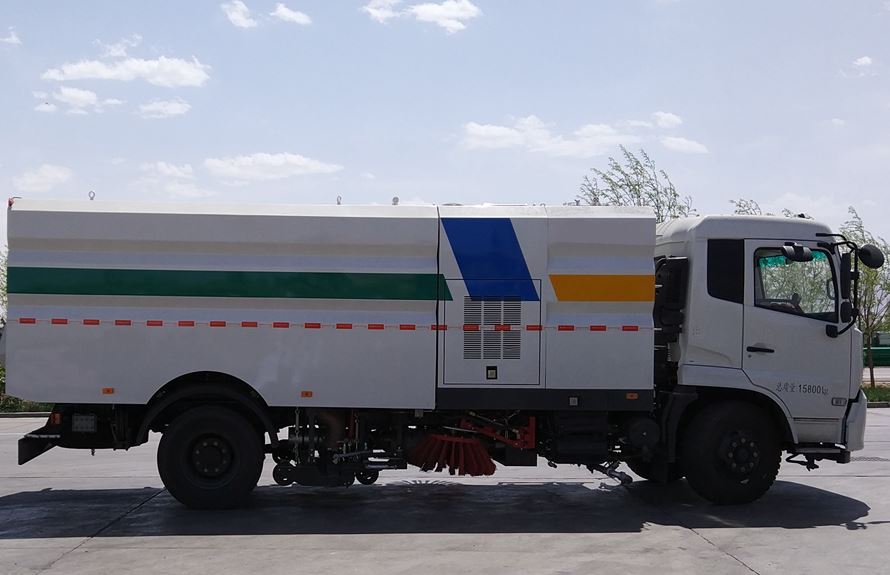

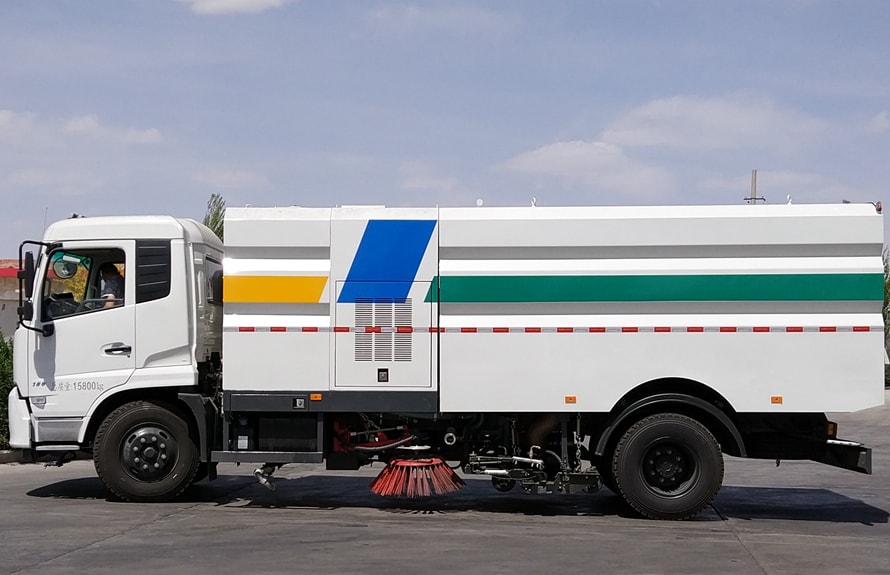

Product name | Road sweeper truck |
GVW(Kg) | 18000 |
Overall dimension(mm) | 9200×2500×3380 |
Rated payload(Kg) | 8000 |
Front overhang/rear overhang (mm) | 1040/1852,1040/1602 |
Max weight(Km/h) | 99 |
Curb weight(Kg) | 9800 |
Tyre number | 6 |
Approach/Departure(°) | ‘20/12 |
Wheelbase (mm) | 33082800 |
Front tread(mm) |
|
Rear tread (mm) |
|
displacement(ml) | Power(hp) |
5900 | 190 |
Vice motor power | 140hp |
Max GVW | 6500 kg |
Max speed | ≥95km/h |
Sweeper width | ≥2.2m |
Water tanker | 1 m3 |
Dustbin tanker | 2m3 |
Operation Speed | 3~15km/h |
Max working area | 90000 m2/h |
Max suction diameter | 120 mm |
Sweep efficiency | ≥95% |
If you would like to learn more about product details, please send inquiry
do contact us:
